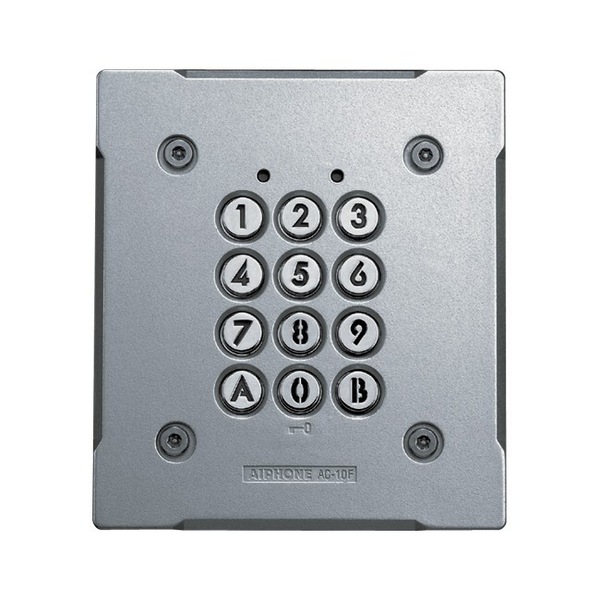

Aiphone AC10F Flush Mount Access Control/Keypad for DVF Door Station Silver

Image 1
Hurry! 3 items left!
$425.70

Collect 425 Everyday Rewards points

Log in to MyDeal to link your card
Free Shipping
Sold & shipped by KG Superstore
Secure ways to pay at checkout
Pay in 4 interest-free payments of $106.42 with Learn More

FLUSH MOUNT ACCESS CONTROL SUIT DVF DOOR STATION AIPHONE

AiPhone Door Access Control
The AC-10F is a stand-alone flush mount access keypad. The unit is constructed of cast zinc and will hold up to 100 codes for access. The AC-10F provides two dry contacts for door release or mag lock activation.

  • 12-Digit backlit keypad; 2 relay outputs (NO & NC)
  • 100 Pin Code capacity; 2 request-to-exit inputs
  • 12 Terminal wiring block for easy connections

Specifications
Power Source: 12~24V AC or DC
Power Consumption:
DC: Max. 70mA
AC: Max. 100mA
Door Release:
2 Relays NO & NC
Contact Rating: 3A (resistive), 1A (inductive) @ 24V
Ingress Protection: IP54 rated
Dimensions: 5-3/16" H x 4-5/8" W x 3/16" D, 15/16" recess


Specifications:

This item comes with a 12 months warranty

GTIN: 4968249553014
