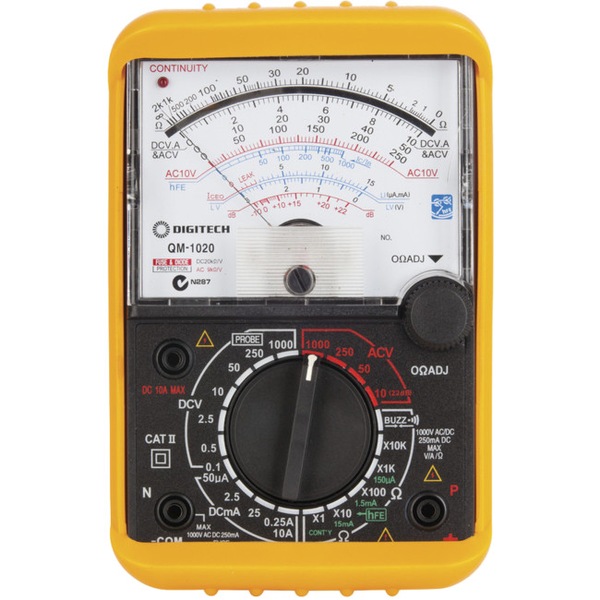

QM1020 Analogue Multimeter Amm 20,000Ω /V DC Sensitivity ANALOGUE MULTIMETER

Image 1
Image 2
Image 3
Image 4
Hurry! 6 items left!
$35.95

Collect 35 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by Radio Parts
Secure ways to pay at checkout
  • Features:
  • 20,000 Ohm /V DC Sensitivity
  • Transistor test
  • Continuity buzzer
  • Fused and diod protected
  • This well made meter is great for those who prefer theanalogue meter movement to the digital._
  • It has several`digital' features, like a 10 amp DC current measuring capability a continuity buzzer and safety shroudedprobes.
  • Specifications-
  • DC Voltage: 0-100mV, 500mV, 2.5V, 10V, 50V, 250V &1000V,10,000
  • Ohm /V ±3%_
  • _AC Voltage: 0-10V, 50V, 250V & 1000V 9,000/V ±4%_
  • DC Amps: 0-50µA, 2.5mA, 25mA, 250mA & 10A_
  • Voltage drop =250mV ±3% FS- Resistance : 0.2(approx) - 2K, 20K 200K 2M & 20M-_
  • Continuity: Internal Buzzer- dB: -10 to +22dB (AC 10V scale)-_
  • Transistor Test: Leakage (ICEO) 0-150µA, 1.5mA, 15mA & 150mA. -hFE 0-1000 (needs external equipment)-_
  • Size: 100(W) x 150(L) x 36(D)-_
  • Power: 1x9V, 2xAA (supplied)-_
  • Test leads included
  • Now includes rubber holster.

Weight: 0.545
