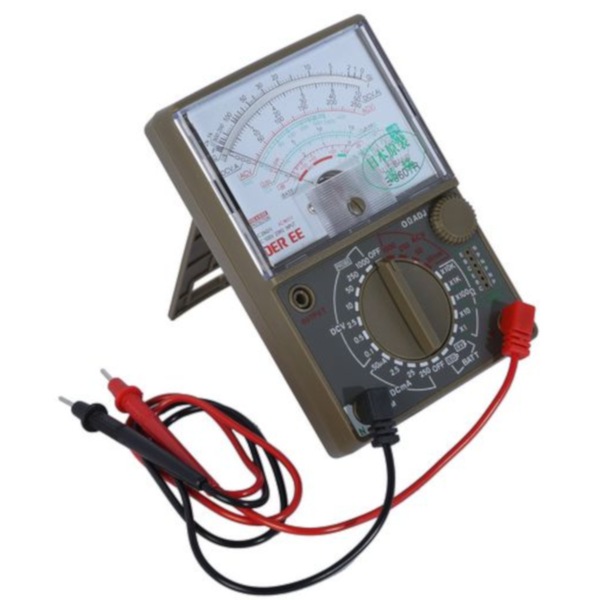

Traditional meter with total protection and a patented design perfectly fit for use in the work shop, DIY at home, education, amateur or hobbies. 152x100x38mm
Analogue meters offer a more direct and constant viewing display experience desired by some applications. ie. it will display a stable or fluctuating voltage.
80x60mm Large scale analogue meter
Reflective parallax strip
Stand Rack Attached For Reading Easily
Taut Band Movement with unique feature to absorb vibration and non-friction to avoid the distortion of accuracy and a long-term life time.
DCV ±3.0% F.S. Impedence 20KΩ/V
ACV ±4.0% F.S. Impedence 40KΩ/V
DCmA ±3.0% F.S. Voltage drop 250mV
ACA/DCA 10A ±3.0% F.S.
Resistance 5 ranges 20Ω to 200KΩ Centre
Continuity Buzzer, Battery test, LED test
dB input (-10dB~+62dB) 600Ω
Transistor hFE measure
152x100x38mm 235g
Requires 2x AA + 1x 9V
Includes test lead set
12 months
