APC Automatic Electric Sliding Gate Opener. Heavy Duty 1600KG Sliding Gate Automation All in One System With Spring Limits

APC Automatic Electric Sliding Gate Opener. Heavy Duty 1600KG Sliding Gate Automation All in One System With Spring Limits

Limited Stock

$626

Collect 626 Everyday Rewards points

Free Shipping

Dispatch in 2 business days

Sold & shipped by Wholesale Gate Openers

Secure ways to pay at checkout

(0)

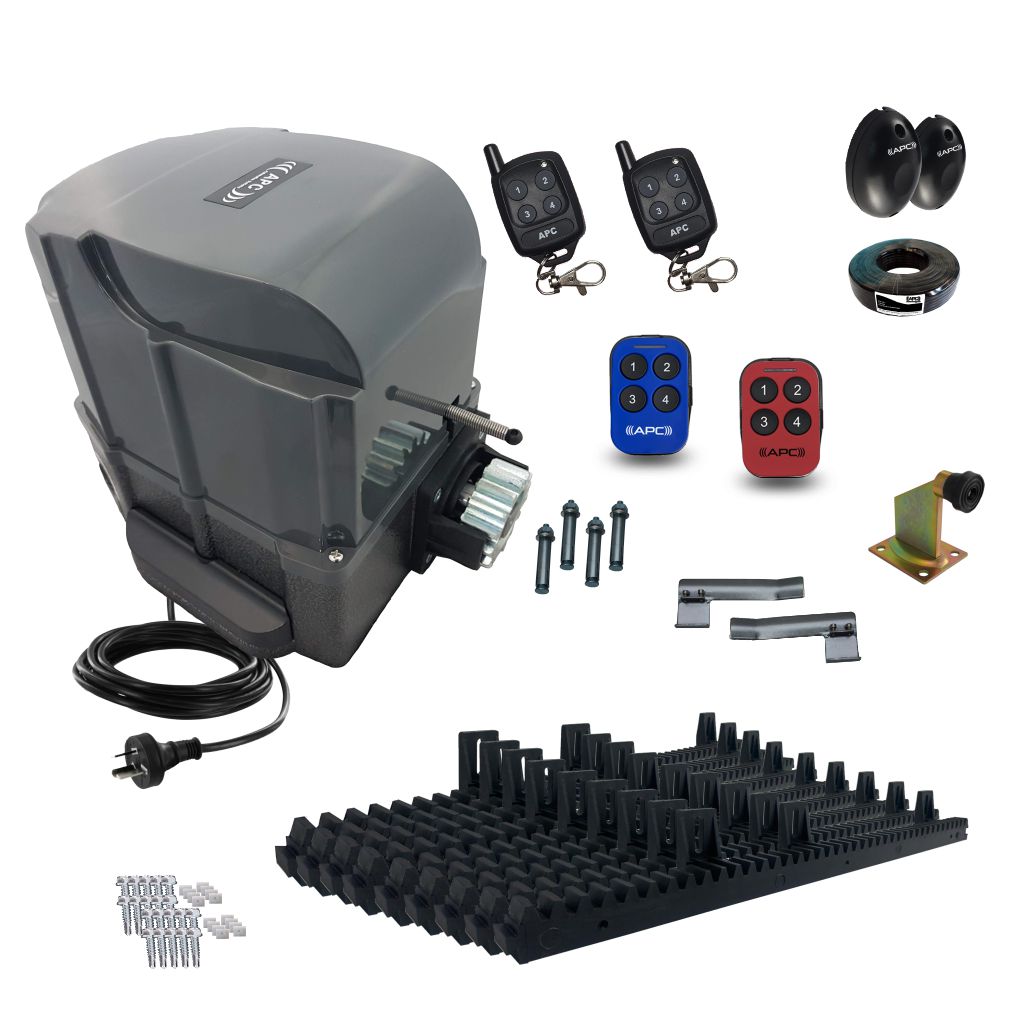

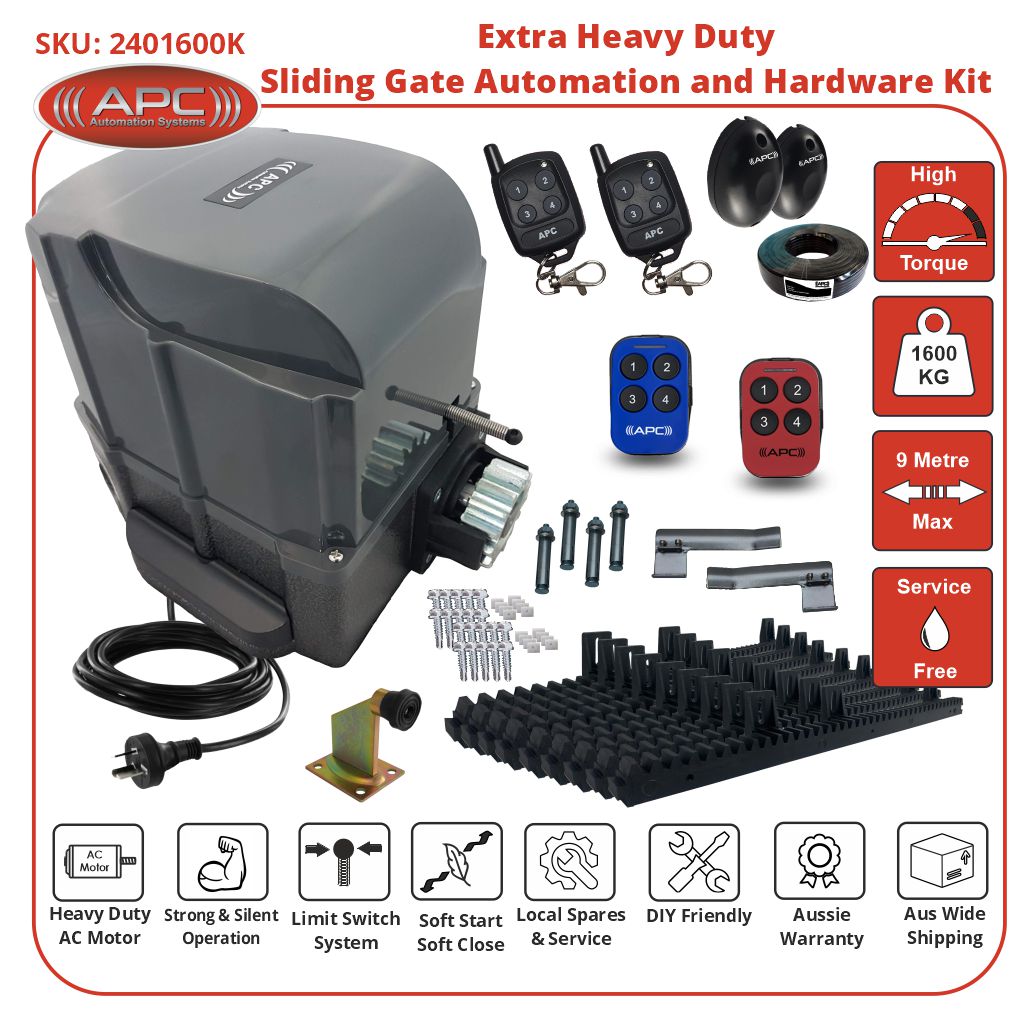

Gate Opener Kit Includes

APC Tsunami 1600KG Sliding Gate Motor with Power Cord (Built in Control Board) (QTY: 1)
Motor Mounting Base plate Expansion Bolts(QTY: 1)
APC 4 Button Key Ring Remote Controls(QTY: 2)
APC 4 Button Sunvisor Remote Controls(QTY: 2)
Steel Reinforced Nylon Coated Gear Rack(QTY: 8)
Photo Electric Safety Sensor with 10m Cable(QTY: 1)
Manual Override Keys(QTY: 1)
Metal Gate Stop with Rubber Bumper(QTY: 1)
55mm U Guide gatekeeper.(QTY: 1)
Set of Limit Strikers(QTY: 1)
Easy to Follow ENGLISH Installation Manual(QTY: 1)

Product Information

Extra Heavy Duty
AC Sliding Gate Automation System
Easy Installation All in one Motor and Control Panel for Sliding Gate
Suitable for sliding gates up to 1600kg

Strong Durable Strong Durable Sliding gate motor with 1600KG capacity	All In One Motor All in one motor with built in control board and limit switches
Manual Override Built in manual override for emergencies	Metal Pinnion Gears (NO PLASTIC OR NYLON) Strong Metal Cut Pinnion ensuring the highest durability

This all in one AC powered sliding gate motor kit is designed to operate sliding gates up to 1600kg in weight. It is an all in one motor and control panel, making it simple to install and extremely compact and neat.

- Manual Override
- All Metal Gears
- Metal Gear Drive
- All in one internal Motor and Control Panel

Controlling Options:

(any or all of the following may be connected to operate the gate)

- Remote Controls (2 supplied - more available upon request)
- Wireless or Wired Entry push button switch (Available as an optional accessory)
- Wireless or Wired Exit push button switch (Available as an optional accessory)
- Wireless or Wired Keypads (Available as an optional accessory)
- Safety Photoelectric Sensors (supplied - more available upon request)
- Intercom system with dry contact output (Available as an optional accessory)
- GSM receiver with separate power supply (Available as an optional accessory)
- Wi-Fi receiver with separate power supply (Available as an optional accessory)
- Loop Detector (Available as an optional accessory)

Remote Control

Rolling code 433.92MHZ.
The remotes supplied have 4 buttons, 1 and 2 can be used for the gates. Buttons 3 and 4 can be used for the party mode and second lock or alternatively they can be programmed to a compatible second gate opener or a garage door(s). A compatible 2 channel receiver is available to interface to any garage doors. Please see remotes and receivers in our store to find this add on receiver for the garage door.

Safety Sensors

Photoelectric sensor function:
If PE sensors are installed:
- The gate will not close while the beam is obstructed.
- The gate will stop and re-open if an object obstructs the beam.
The sensors are wired back to the control panel using the supplied cables.
Specifications:
Detection technology: Infrared
Range: 15m max.
Frequency: 1.92Khz
Power: 12-24V AC/DC
Input: RX 15mA, TX 30mA
Operating temperature: -20 to 70 degrees
Relay output: 1Amp max 30V
Dimension: 49.2 x 76 21mm

Gate Stop

Gate Stop

Heavy-duty galvanised metal gate stop with a rubber end.

"U" Guide

"U" Guide and stop for sliding gates

The "U" Guide is installed at the closing end of the sliding gate.

GR-52-V3 Interlocking 520mm Lengths Nylon Coated Gear Rack

520mm Lengths Nylon Coated Gear Rack

This GR-52-V3 gear rack is nylon coated and reinforced with a steel rod. The gear rack is supplied in 520mm interlocking lengths with a male and female end.
More gear rack is available for purchase for larger sliding gates.
Please Note: This nylon gear rack can be upgraded to steel gear rack at an additional cost.

Suitability

This automatic sliding gate opener is suitable for:
→ Sliding gate not exceeding 1600kg maximum
→ A power point at the gate
→ Level ground installations

Specifications

Rated Power	650W
Power supply	220V-240V
Maximum Weight of Gate	1600kg
The working temperature of the motor	-45° ~ +65°
Open (Close) speed	12m/min
Maximum Pull	38Nm
Voltage output	Only devices with a parameter of 12-24V DC operating range can be connected to the system
Light output	240V Light, 30 Watts or Less
Accessories input	Open Only Close Only Open/Stop/Close

Here are the Commonly FAQ asked about this product

Can I operate this sliding gate motor manually?

YES

The motor is fitted with a manual override and supplied with a key to manually disengage the motor

Can I use this system to operate a large gate?

YES

This motor can handle a sliding gate up to 1600kg's in weight

Are the motor control panel all in one?

YES

Both the motor and the control panel are housed under one casing making the motor easy to install and very neat compact

Can I use push buttons to operate this system?

YES

Both wireless wired push-button switches can be used to open/close the gate motor

Can I use keypads to operate this system?

YES

Both wireless wired keypads can be used to open/close the gate motor

Can I connect a safety sensor to this system?

YES

Photoelectric and reflective safety sensors can be connected to this system to stop the gate from closing if there is a vehicle or person in the way of the gate

Can I connect an intercom system to this gate system?

YES

A range of different intercoms can be connected to this system allowing the intercom to unlock the gate motor from a monitor inside the house or via an app on your smartphone

Can I operate this gate system from a remote location?

YES

A GSM Receiver or Wi-Fi Receiver can be connected to the system allowing programmed users to open/close the gate system from a remote location. Please note, to connect these accessories to the system a separate power pack must be used.

Does this gate system automatically close?

YES

When the automatic close timer is enabled and photoelectric safety sensors are installed the gate will automatically close

Can I connect a light to the system?

YES

The system has a 240V light output meaning a 240V light 30 Watts or less can be connected and will operate when the gate is opening/closing.

Can I lock my gate if I go away?

YES

This system has a LOCK-OUT feature where the user can press button number 4 on any of the programmed remote controls to disable all wireless/wired accessories until button 3 is pressed on the remote to enable the system.

Specifications:

Gate Opener Kit Includes

APC Tsunami 1600KG Sliding Gate Motor with Power Cord (Built in Control Board) (QTY: 1)
Motor Mounting Base plate & Expansion Bolts(QTY: 1)
APC 4 Button Key Ring Remote Controls(QTY: 2)
APC 4 Button Sunvisor Remote Controls(QTY: 2)
Steel Reinforced Nylon Coated Gear Rack(QTY: 8)
Photo Electric Safety Sensor with 10m Cable(QTY: 1)
Manual Override Keys(QTY: 1)
Metal Gate Stop with Rubber Bumper(QTY: 1)
55mm U Guide gatekeeper.(QTY: 1)
Set of Limit Strikers(QTY: 1)
Easy to Follow ENGLISH Installation Manual(QTY: 1)
