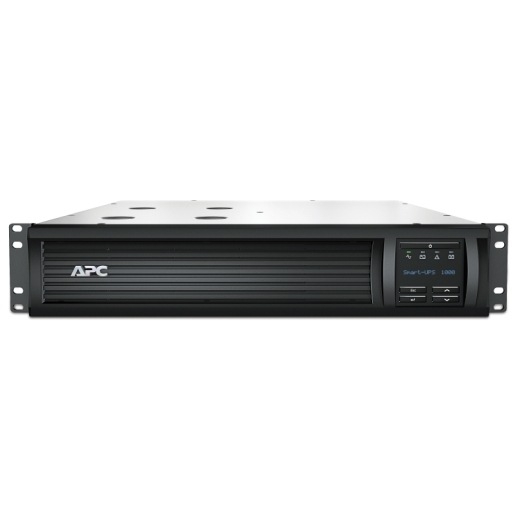

APC Smart-UPS 1000VA, Rack Mount, LCD 230V with SmartConnect Port.
Intelligent and efficient network power protection from entry level to scalable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.
Features:
Run time for load: 700W
Min-max: 70-700 W
Max. Capacity Used: 100%
Output power capacity: 700 Watts / 1.0kVA
Rack Height: 2U
Output Connections
Nominal Output Voltage: 230V
Nominal Input Voltage: 230V
Input Connections: IEC 320 C14
Smart-UPS Features & Benefits
Manageability
Includes:
Output
Max Configurable Power (Watts): 700 Watts / 1.0kVA
Output Voltage Note: Configurable for 220 : 230 or 240 nominal output voltage
Output Voltage Distortion: Less than 5 %
Output Frequency (sync to mains): 50/60 Hz +/- 3 Hz Sync to mains
Other Output Voltages: 220 V, 240 V
Topology: Line interactive
Waveform type: Sine wave
Transfer Time: 6 ms typical : 10 ms maximum
Input
Input frequency: 50/60 Hz +/- 3 Hz Auto-sensing
Input voltage range for main operations: 151 - 302 Adjustable, 160 - 286V
Number of Power Cords: 1
Other Input Voltages: 220 V, 240 V
Batteries & Runtime
Battery type: Lead-acid battery
Typical recharge time: 3hour(s)
Replacement Battery: APCRBC157
Expected Battery Life (years): 4 - 6
RBC Quantity: 1
Battery Charge Power (Watts): 112 Watts
Runtime: View Runtime Graph
Efficiency: View Efficiency Graph
Communications & Management

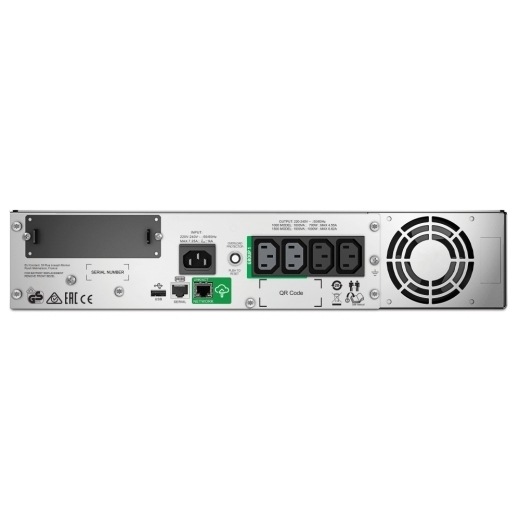

Interface Port(s): RJ-45 Serial, SmartSlot, USB
Control panel: Multifunction LCD status and control console
Audible Alarm: Alarm when on battery : distinctive low battery alarm : configurable delays
Emergency Power Off (EPO): Optional
Available SmartSlotâ„¢ Interface Quantity: 1
Surge Protection and Filtering
Surge energy rating: 459Joules
Filtering: Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
Physical
Maximum Height: 86MM, 8.6CM
Maximum Width: 432MM, 43.2CM
Maximum Depth: 477MM, 47.7CM
Net Weight: 22.5KG
Shipping weight: 31.45KG
Shipping Height: 251MM, 25.1CM
Shipping Width: 594MM, 59.4CM
Shipping Depth: 603MM, 60.3CM
Colour: Black
Units per Pallet: 8.0
Environmental
Operating Temperature: 0 - 40 °C
Operating Relative Humidity: 0 - 95 %
Operating Elevation: 0 - 3048meters
Storage Temperature: -15 - 45 °C
Storage Relative Humidity: 0 - 95 %
Storage Elevation: 0 - 15240meters
Audible noise at 1 meter from surface of unit: 45.0dBA
Online thermal dissipation: 56.0BTU/hr
GTIN: 731304332985
