APC Smart-UPS 2200VA LCD Rack/Tower UPS Battery Backup for POS/Routers/Switches

APC Smart-UPS 2200VA LCD Rack/Tower UPS Battery Backup for POS/Routers/Switches

Hurry! 2 items left!

$3738.60

Collect 3738 Everyday Rewards points

Free Shipping

Sold & shipped by KG Superstore

Secure ways to pay at checkout

(0)

APC Smart-UPS X 2200VA Rack/Tower LCD 200-240V.

Intelligent and efficient network power protection from entry level to scalable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.

Features:
Run time for load: 1980W
Min-max: 198-1980 W
Max. Capacity Used: 100%
Output power capacity: 1.98kWatts / 2.2kVA
Rack Height: 2U

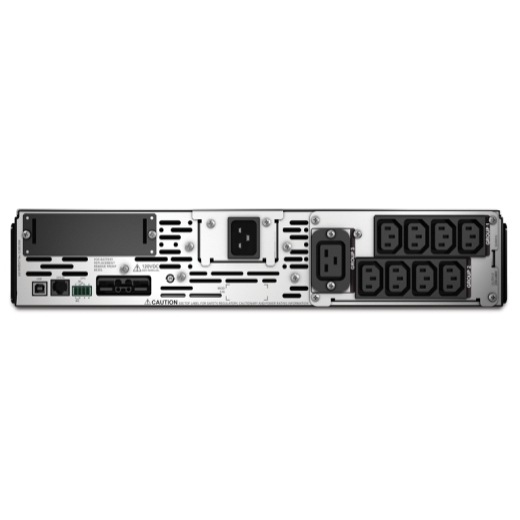

Output Connections

(1) IEC 320 C19 (Battery Backup)
(8) IEC 320 C13 (Battery Backup)
(2) IEC Jumpers (Battery Backup)

Nominal Output Voltage: 208V, 230V
Nominal Input Voltage: 208V, 230V
Input Connections: BS1363A British, IEC 320 C20, Schuko CEE 7 / EU1-16P
Cord Length: 1.8 meters

Cold-start capable: Provides temporary battery power when the utility power is out.
Energy meter: Provides actual kilowatt hours of usage for energy conscious users.
Green mode: Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
High online efficiency: Reduces utility costs, generates less heat.
Intelligent Card Slot: Customize UPS capabilities with management cards.
Multiple switched outlet groups: Multiple outlet groups that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
Predictive replace battery date: Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
Temperature-compensated battery charging: Prolongs battery life by regulating the charge voltage according to battery temperature.

Smart-UPS Features & Benefits
Serviceability

Battery failure notification: Provides early-warning fault analysis on batteries enabling timely preventive maintenance
Resettable circuit breakers: Enables a quick recovery from overload events.
User-replaceable batteries: Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
Hot-swappable batteries: Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
Predictive failure notification: Provides early-warning fault analysis ensuring proactive component replacement.

Adaptability

Adjustable voltage-transfer points: Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.
Adjustable voltage sensitivity: Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.

Availability

Disconnected battery notification: Warns when a battery is not available to provide backup power.
Intelligent battery management: Maximizes battery performance, life, and reliability through intelligent, precision charging.
Automatic self-test: Periodic battery self-test ensures early detection of a battery that needs to be replaced.
Boost and Trim Automatic Voltage Regulation (AVR): Gives higher application availability by correcting low and high voltage conditions without using the battery (not available on all models).
Automatic restart of loads after UPS shutdown: Automatically starts up the connected equipment upon the return of utility power.
Power conditioning: Protects connected loads from surges, spikes, lightning, and other power disturbances.
Temperature-compensated battery charging: Prolongs battery life by regulating the charge voltage according to battery temperature.

Manageability

Audible alarms: Provides notification of changing utility power and UPS conditions.
Serial connectivity: Provides management of the UPS via a serial port.
USB connectivity: Provides management of the UPS via a USB port (not available on all models).
LED status indicators: Quickly understand unit and power status with visual indicators.
Network manageable: Most models provide remote power management options of the UPS over the network. Many do not have NMC embedded.

Includes:

1x CD with Software
1x Documentation CD
1x Rack Mounting Brackets
1x Smart UPS Signalling RS-232 Cable
1x USB Cable
1x User Manual

Specifications:

Output

Max Configurable Power (Watts): 1.98kWatts / 2.2kVA
Output Voltage Distortion: Less than 5 %
Output Frequency (sync to mains): 50/60 Hz +/- 3 Hz Sync to mains
Other Output Voltages: 220 V, 240 V
Topology: Line interactive
Waveform type: Sine wave
Transfer Time: 2-4 ms
Transfer Time: 6 ms typical : 10 ms maximum

Input

Input frequency: 50/60 Hz +/- 3 Hz Auto-sensing
Input voltage range for main operations: 140 - 280V
Number of Power Cords: 1
Other Input Voltages: 220 V, 240 V
Transfer Time: 2-4 ms

Batteries & Runtime

Battery type: Lead-acid battery
Typical recharge time: 3hour(s)
Replacement Battery: APCRBC117
Expected Battery Life (years): 3 - 5
RBC Quantity: 1
Battery Charge Power (Watts): 233 Watts
Extendable Run Time: 1

Communications & Management

Interface Port(s): RJ-45 Serial, SmartSlot, USB
Control panel: LED status display with load and battery bar-graphs and on line : on battery : replace battery : and overload indicators, Multifunction LCD status and control console
Audible Alarm: Alarm when on battery : distinctive low battery alarm : configurable delays
Emergency Power Off (EPO): Yes
Available SmartSlot™ Interface Quantity: 1

Surge Protection and Filtering

Surge energy rating: 645Joules
Filtering: Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

Physical

Maximum Height: 85MM, 8.5CM
Maximum Width: 432MM, 43.2CM
Maximum Depth: 667MM, 66.7CM
Net Weight: 37.32KG
Shipping weight: 45.36KG
Shipping Height: 243MM, 24.3CM
Shipping Width: 596MM, 59.6CM
Shipping Depth: 869MM, 86.9CM
Colour: Black
# of Layers per Pallet: 4.0
# of Units per Layer per Pallet: 2.0
Pallet Weight: 856.91lbs.
Units per Pallet: 8.0

Environmental

Operating Temperature: 0 - 40 °C
Operating Relative Humidity: 0 - 95 %
Operating Elevation: 0 - 3048meters
Storage Temperature: -15 - 45 °C
Storage Relative Humidity: 0 - 95 %
Storage Elevation: 0 - 15240meters
Audible noise at 1 meter from surface of unit: 55.0dBA
Online thermal dissipation: 150.0BTU/hr

Standard Consumer Warranty
