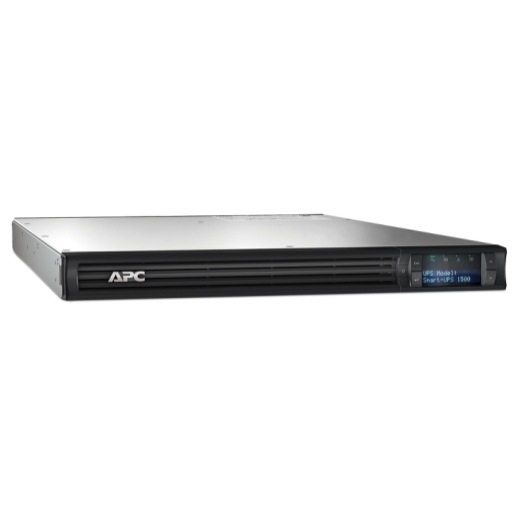

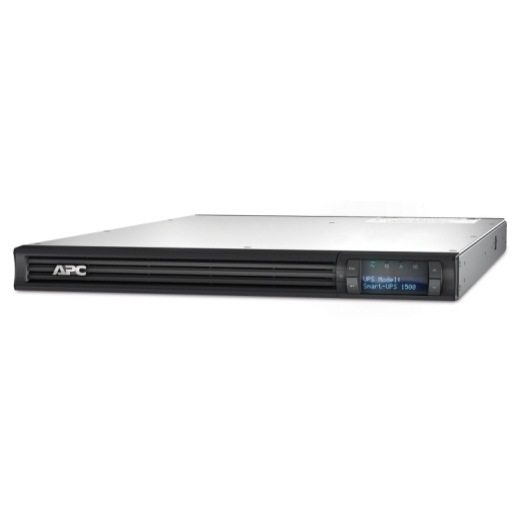

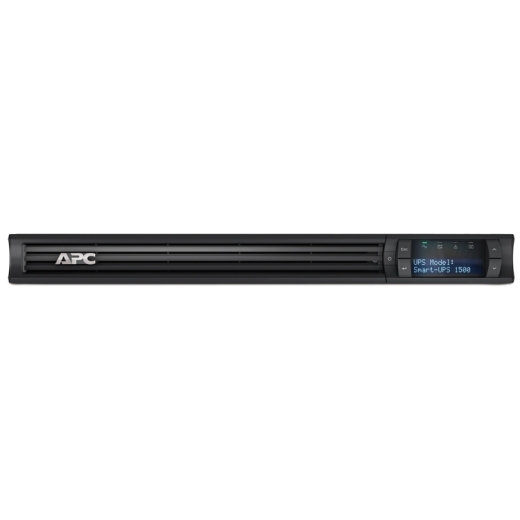

APC Smart-UPS Rackmount 1500VA SmartConnect UPS Power for POS/Routers/Switches

APC Smart-UPS Rackmount 1500VA SmartConnect UPS Power for POS/Routers/Switches

Hurry! 6 items left!

$2349.90

Collect 2349 Everyday Rewards points

Free Shipping

Sold & shipped by KG Superstore

Secure ways to pay at checkout

(0)

APC Smart-UPS 1500VA LCD RM 1U 120V (Not for sale in CO, VT or WA).

Intelligent and efficient network power protection from entry level to scaleable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other.

Features:
Run time for load: 1000W
Min-max: 100-1000 W
Max. Capacity Used: 100%
Output Power Capacity: 1.0kWatts / 1.44kVA
Rack Height: 1U

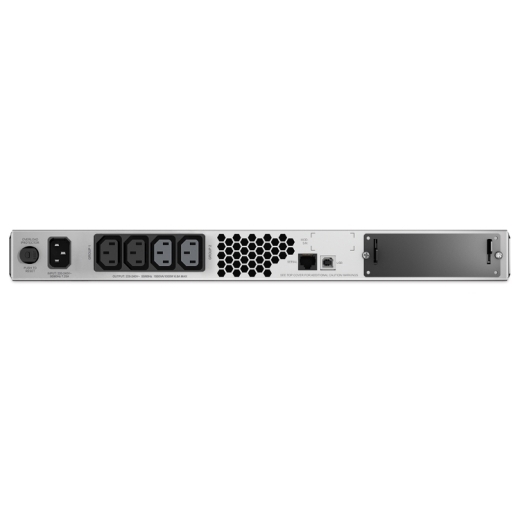

Output Connections: (4) NEMA 5-15R (Battery Backup)
Nominal Output Voltage: 120V
Nominal Input Voltage: 120V
Input Connections: NEMA 5-15P
Cord Length: 2.4meters
Maximum Input Current: 12.0A

Cold-Start Capable: Provides temporary battery power when the utility power is out.
Energy Meter: Provides actual kilowatt hours of usage for energy conscious users.
Green Mode: Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
High Frequency Design: Reduces or eliminates bulky transformers resulting in lighter units for ease of handling.
High Online Efficiency: Reduces utility costs, generates less heat.
Intelligent Card Slot: Customize UPS capabilities with management cards.
Intuitive LCD interface: Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
Multiple switched outlet groups: Multiple outlet groups that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
Predictive replace battery date: Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
Pure sine wave output on battery: Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
Temperature-compensated battery charging: Prolongs battery life by regulating the charge voltage according to battery temperature.

Smart-UPS Features & Benefits
Serviceability

Battery failure notification: Provides early-warning fault analysis on batteries enabling timely preventive maintenance
Resettable circuit breakers: Enables a quick recovery from overload events.
User-replaceable batteries: Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
Hot-swappable batteries: Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
Predictive failure notification: Provides early-warning fault analysis ensuring proactive component replacement.

Adaptability

Adjustable voltage-transfer points: Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.
Adjustable voltage sensitivity: Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.

Availability

Disconnected battery notification: Warns when a battery is not available to provide backup power.
Intelligent battery management: Maximizes battery performance, life, and reliability through intelligent, precision charging.
Automatic self-test: Periodic battery self-test ensures early detection of a battery that needs to be replaced.
Boost and Trim Automatic Voltage Regulation (AVR): Gives higher application availability by correcting low and high voltage conditions without using the battery (not available on all models).
Automatic restart of loads after UPS shutdown: Automatically starts up the connected equipment upon the return of utility power.
Power conditioning: Protects connected loads from surges, spikes, lightning, and other power disturbances.
Temperature-compensated battery charging: Prolongs battery life by regulating the charge voltage according to battery temperature.

Manageability

Audible alarms: Provides notification of changing utility power and UPS conditions.
Serial connectivity: Provides management of the UPS via a serial port.
USB connectivity: Provides management of the UPS via a USB port (not available on all models).
LED status indicators: Quickly understand unit and power status with visual indicators.
Network manageable: Most models provide remote power management options of the UPS over the network. Many do not have NMC embedded.

Includes:

1x CD with Software
1x Documentation CD
1x Installation Guide
1x Rack Mounting Support Rails
1x Smart UPS sIgnalling RS-232 Cable
1x USB Cable

Specifications:

Output

Max Configurable Power (Watts): 1.0kWatts / 1.44kVA
Output Voltage Distortion: Less than 5 %
Output Frequency (sync to mains): 50/60 Hz +/- 3 Hz Sync to mains
Topology: Line interactive
Waveform type: Sine wave
Transfer Time: 4 ms typical : 8 ms maximum

Input

Input frequency: 50/60 Hz +/- 3 Hz Auto-sensing

Batteries & Runtime

Battery type: Lead-acid battery
Typical recharge time: 4hour(s)
Replacement Battery: APCRBC88
Expected Battery Life (years): 3 - 5
RBC Quantity: 1
Battery Charge Power (Watts): 73 Watts

Communications & Management

Interface Port(s): RJ-45 Serial, SmartSlot, USB
Control panel: Multifunction LCD status and control console
Audible Alarm: Alarm when on battery : distinctive low battery alarm : configurable delays
Available SmartSlot™ Interface Quantity: 1

Surge Protection and Filtering

Surge energy rating: 540Joules
Filtering: Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

Physical

Maximum Height: 44MM, 4.4CM
Maximum Width: 432MM, 43.2CM
Maximum Depth: 665MM, 66.5CM
Net Weight: 24.09KG
Shipping weight: 29.09KG
Shipping Height: 200MM, 20.0CM
Shipping Width: 575MM, 57.5CM
Shipping Depth: 794MM, 79.4CM
Colour: Black
Units per Pallet: 10.0

Environmental

Operating Temperature: 0 - 40 °C
Operating Relative Humidity: 0 - 95 %
Operating Elevation: 0 - 3048meters
Storage Temperature: -15 - 45 °C
Storage Relative Humidity: 0 - 95 %
Storage Elevation: 0 - 15240meters
Audible noise at 1 meter from surface of unit: 46.0dBA
Online thermal dissipation: 88.0BTU/hr
