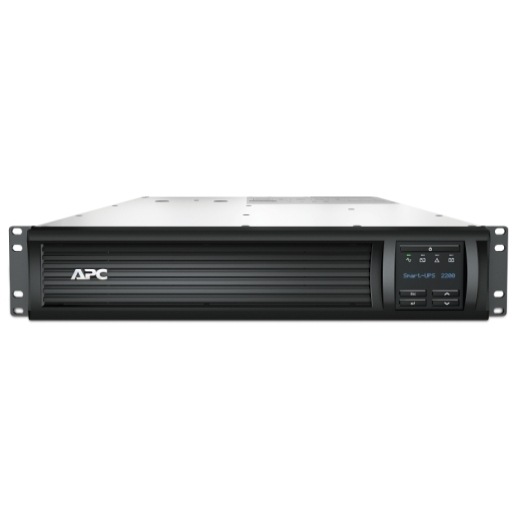

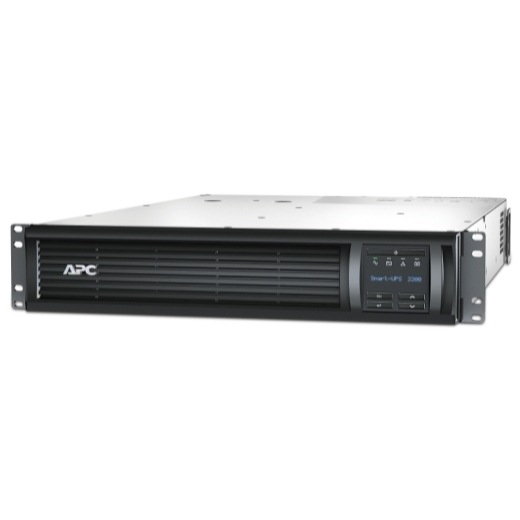

APC Smart-UPS SMT2200 Rack Mount 2200VA/1980W Battery Backup for POS/Switches

APC Smart-UPS SMT2200 Rack Mount 2200VA/1980W Battery Backup for POS/Switches

Hurry! 2 items left!

$3793.50

Collect 3793 Everyday Rewards points

Log in to MyDeal to link your card

Free Shipping

Sold & shipped by KG Superstore

Secure ways to pay at checkout

APC Smart-UPS 2200VA, Rack Mount, LCD 230V with SmartConnect Port

Intelligent and efficient network power protection from entry level to scalable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.

Features:
Run time for load: 1980W
Min-max: 198-1980 W
Max. Capacity Used: 100%
Output power capacity: 1.98kWatts / 2.2kVA

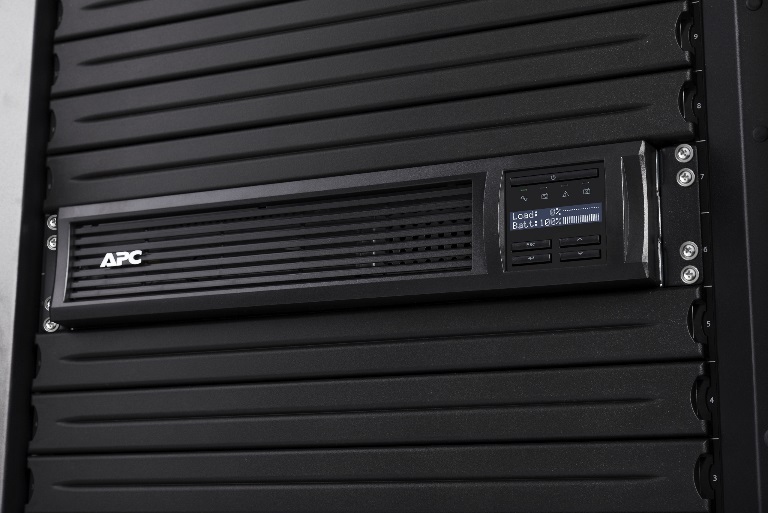

Rack Height: 2U

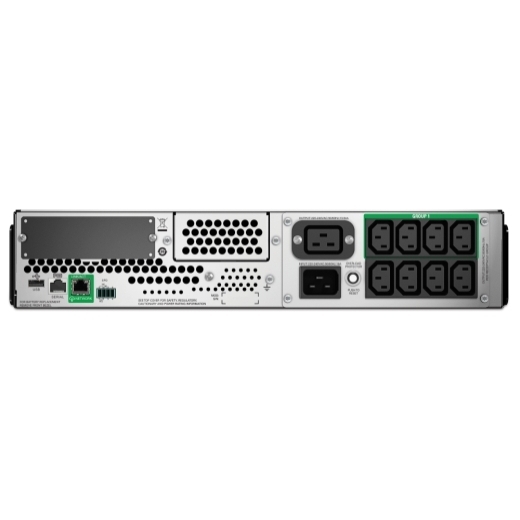

Output Connections

(1) IEC 320 C19 (Battery Backup)
(8) IEC 320 C13 (Battery Backup)
(3) IEC Jumpers (Battery Backup)

Nominal Output Voltage: 230V
Nominal Input Voltage: 230V
Input Connections: BS1363A British, IEC 320 C20, Schuko CEE 7 / EU1-16P
Cord Length: 2meters

Cold-start capable: Provides temporary battery power when the utility power is out.
Energy meter: Provides actual kilowatt hours of usage for energy conscious users.
Green mode: Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
High online efficiency: Reduces utility costs, generates less heat.
Intelligent Card Slot: Customize UPS capabilities with management cards.
Intuitive LCD interface: Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
Predictive replace battery date: Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
Pure sine wave output on battery: Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
Sequenced network shutdown and reboot: Customize network shutdown and reboot sequence of connected servers and UPSs.
Single switched outlet group: Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
SmartConnect: Innovative, easy to use remote monitoring feature that provides automatic notifications, firmware updates, and advanced support services.
StruxureWare Data Center Expert compatible: Enables centralized management via StruxureWare Data Center Expert.
Temperature-compensated battery charging: Prolongs battery life by regulating the charge voltage according to battery temperature.

Smart-UPS Features & Benefits
Manageability

Network manageable: Most models provide remote power management options of the UPS over the network. Many do not have NMC embedded.
Serial connectivity: Provides management of the UPS via a serial port.
Audible alarms: Provides notification of changing utility power and UPS conditions.
USB connectivity: Provides management of the UPS via a USB port (not available on all models).
LED status indicators: Quickly understand unit and power status with visual indicators.

Includes:

1x APC Smart-UPS SMT2200 Smart UPS
1x Documentation CD
1x Rack Mounting Hardware
1x Rack Mounting Support Rails
1x USB Cable

Specifications:

Output

Max Configurable Power (Watts): 1.98kWatts / 2.2kVA
Output Voltage Note: Configurable for 220 : 230 or 240 nominal output voltage
Output Voltage Distortion: Less than 5 %
Output Frequency (sync to mains): 50/60 Hz +/- 3 Hz Sync to mains
Other Output Voltages: 220 V, 240 V
Topology: Line interactive
Waveform type: Sine wave
Transfer Time: 6 ms typical : 10 ms maximum

Input

Input frequency: 50/60 Hz +/- 3 Hz Auto-sensing
Input voltage range for main operations: 151 - 302 Adjustable, 160 - 286V
Number of Power Cords: 1
Other Input Voltages: 220 V, 240 V

Batteries & Runtime

Battery type: Lead-acid battery
Typical recharge time: 3hour(s)
Replacement Battery: RBC43
Expected Battery Life (years): 3 - 5
RBC Quantity: 1
Battery Charge Power (Watts): 169 Watts

Communications & Management

Interface Port(s): RJ-45 Serial, SmartSlot, USB
Control panel: Multifunction LCD status and control console
Audible Alarm: Alarm when on battery : distinctive low battery alarm : configurable delays
Available SmartSlot™ Interface Quantity: 1

Surge Protection and Filtering

Surge energy rating: 375Joules

Physical

Maximum Height: 86MM, 8.6CM
Maximum Width: 432MM, 43.2CM
Maximum Depth: 683MM, 68.3CM
Net Weight: 42.31KG
Shipping weight: 49.73KG
Shipping Height: 254MM, 25.4CM
Shipping Width: 600MM, 60.0CM
Shipping Depth: 980MM, 98.0CM
Units per Pallet: 8.0

Environmental

Operating Temperature: 0 - 40 °C
Operating Relative Humidity: 0 - 95 %
Operating Elevation: 0 - 3048meters
Storage Temperature: -15 - 45 °C
Storage Relative Humidity: 0 - 95 %
Storage Elevation: 0 - 15240meters
Audible noise at 1 meter from surface of unit: 55.0dBA
Online thermal dissipation: 215.0BTU/hr
