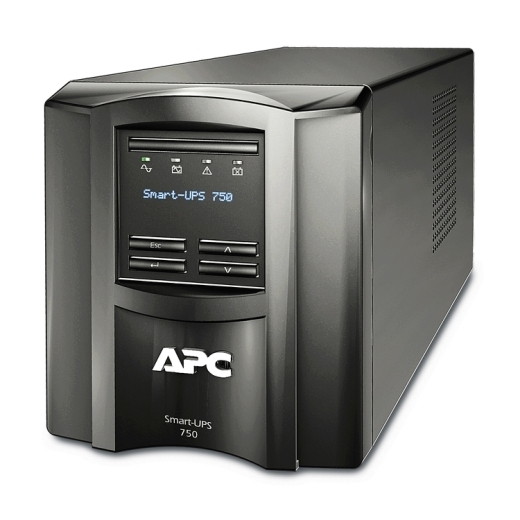

APC SMT750IC Smart-UPS 750VA/500W Tower UPS Battery Backup for Routers/Switches
,gravity=Center,allowExpansion)
,gravity=Center,allowExpansion)
,gravity=Center,allowExpansion)
,gravity=Center,allowExpansion)
Collect 1050 Everyday Rewards points
Collect 1050 Everyday Rewards points

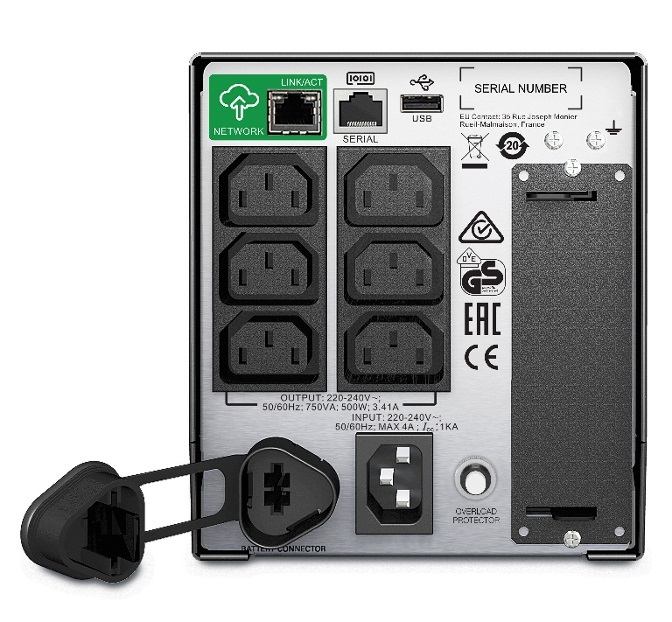

APC Smart-UPS 750VA, 230V, LCD, 6x IEC 320 C13 & 2x IEC Jumpers outlets, w/SmartConnect port.
Intelligent and efficient network power protection from entry level to scalable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.
Features:
Run time for load: 500W
Min-max: 50-500 W
Max. Capacity Used: 100%
Output power capacity: 500 Watts / 750VA
Output Connections
Nominal Output Voltage: 230V
Nominal Input Voltage: 230V
Input Connections: IEC 320 C14
Cord Length: 1.8meters
Smart-UPS Features & Benefits
Manageability
Includes:
Output
Max Configurable Power (Watts): 500 Watts / 750VA
Output Voltage Distortion: Less than 5 %
Output Frequency (sync to mains): 50/60 Hz +/- 3 Hz Sync to mains
Other Output Voltages: 220 V, 240 V
Topology: Line interactive
Waveform type: Sine wave
Transfer Time: 6 ms typical : 10 ms maximum
Input
Input frequency: 50/60 Hz +/- 3 Hz Auto-sensing
Input voltage range for main operations: 151 - 302 Adjustable, 160 - 280V
Number of Power Cords: 1
Other Input Voltages: 220 V, 240 V
Batteries & Runtime
Battery type: Lead-acid battery
Typical recharge time: 3hour(s)
Nominal Battery Voltage: 24 V
Replacement Battery: RBC48
Expected Battery Life (years): 3 - 5
RBC Quantity: 1
Battery Charge Power (Watts): 49 Watts
Runtime: View Runtime Graph
Efficiency: View Efficiency Graph
Communications & Management
Interface Port(s): SmartSlot, USB
Control panel: Multifunction LCD status and control console
Audible Alarm: Alarm when on battery : distinctive low battery alarm : configurable delays
Emergency Power Off (EPO): Optional
Available SmartSlotâ„¢ Interface Quantity: 1
Surge Protection and Filtering
Surge energy rating: 540Joules
Filtering: Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
Physical
Maximum Height: 161MM, 16.1CM
Maximum Width: 138MM, 13.8CM
Maximum Depth: 369MM, 36.9CM
Net Weight: 11.8KG
Shipping weight: 14.23KG
Shipping Height: 301MM, 30.1CM
Shipping Width: 278MM, 27.8CM
Shipping Depth: 499MM, 49.9CM
Colour: Black
Units per Pallet: 24.0
Environmental
Operating Temperature: 0 - 40 °C
Operating Relative Humidity: 0 - 95 %
Operating Elevation: 0 - 3048meters
Storage Temperature: -15 - 45 °C
Storage Relative Humidity: 0 - 95 %
Storage Elevation: 0 - 15240meters
Audible noise at 1 meter from surface of unit: 40.0dBA
Online thermal dissipation: 90.0BTU/hr
GTIN: 731304340317
