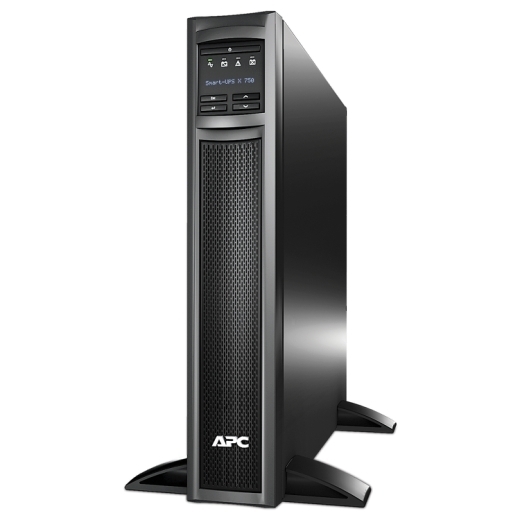

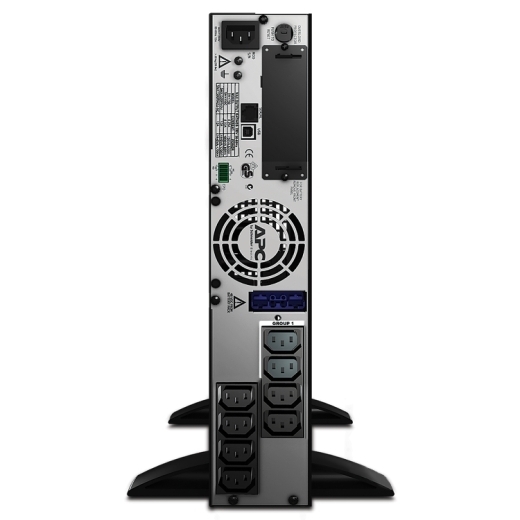

APC Smart-UPS X 750VA, 230V, LCD, rackmount/tower, 2U, 8x IEC 320 C13 & 2x IEC Jumpers outlets.

Intelligent and efficient network power protection from entry level to scalable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.

• Auto recognition of external batteries: UPS recognizes when external battery packs are attached and automatically adjusts runtime.

• Cold-start capable: Provides temporary battery power when the utility power is out.

• Energy meter: Provides actual kilowatt hours of usage for energy conscious users.

• EPO: Attach the device to an Emergency Power Off (EPO) system so that power can be turned off in an emergency situation.

• Green mode: Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.

• High frequency design: Reduces or eliminates bulky transformers resulting in lighter units for ease of handling.

• High online efficiency: Reduces utility costs, generates less heat.

• Intelligent Card Slot: Customize UPS capabilities with management cards.

• Intuitive LCD interface: Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.

• Multiple switched outlet groups: Multiple outlet groups that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.

• Plug-and-Play external batteries: Ensures clean, uninterrupted power to the loads when adding extra runtime to the UPS.

• Predictive replace battery date: Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.

• Pure sine wave output on battery: Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.

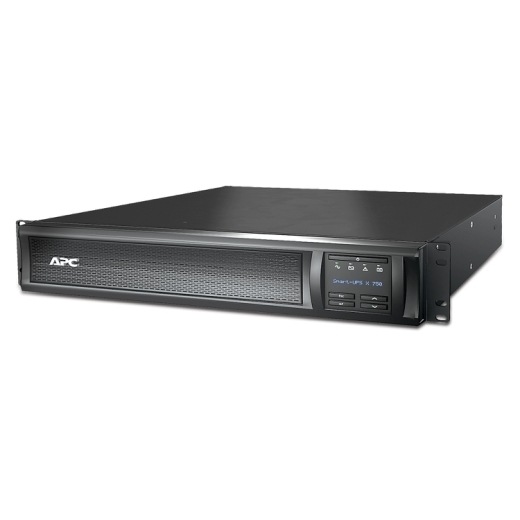

• Rack/Tower convertible: Protects the initial investment in the UPS when migrating from tower to rack-mount environment.

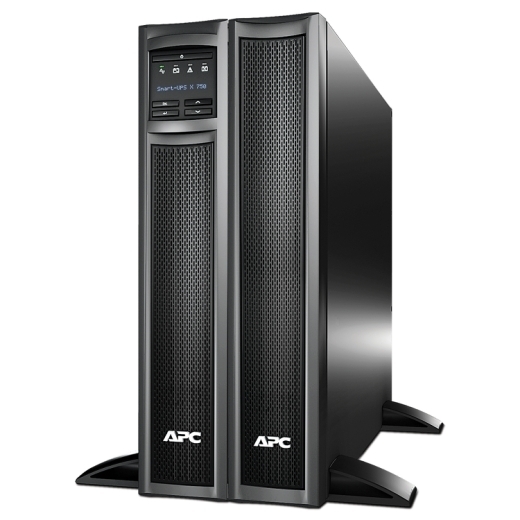

• Scalable runtime: Allows additional run time to be quickly added as needed.

• Single switched outlet group: Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.

• Temperature-compensated battery charging: Prolongs battery life by regulating the charge voltage according to battery temperature.

Smart-UPS Features & Benefits

Serviceability

• Battery failure notification: Provides early-warning fault analysis on batteries enabling timely preventive maintenance

• Resettable circuit breakers: Enables a quick recovery from overload events.

• User-replaceable batteries: Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)

• Hot-swappable batteries: Ensures clean, uninterrupted power to protected equipment while batteries are being replaced

• Predictive failure notification: Provides early-warning fault analysis ensuring proactive component replacement.

Adaptability

• Adjustable voltage-transfer points: Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.

• Adjustable voltage sensitivity: Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.

Availability

• Disconnected battery notification: Warns when a battery is not available to provide backup power.

• Intelligent battery management: Maximizes battery performance, life, and reliability through intelligent, precision charging.

• Automatic self-test: Periodic battery self-test ensures early detection of a battery that needs to be replaced.

• Boost and Trim Automatic Voltage Regulation (AVR): Gives higher application availability by correcting low and high voltage conditions without using the battery (not available on all models).

• Automatic restart of loads after UPS shutdown: Automatically starts up the connected equipment upon the return of utility power.

• Power conditioning: Protects connected loads from surges, spikes, lightning, and other power disturbances.

• Temperature-compensated battery charging: Prolongs battery life by regulating the charge voltage according to battery temperature.

Manageability

• Audible alarms: Provides notification of changing utility power and UPS conditions.

• Serial connectivity: Provides management of the UPS via a serial port.

• USB connectivity: Provides management of the UPS via a USB port (not available on all models).

• LED status indicators: Quickly understand unit and power status with visual indicators.

• Network manageable: Most models provide remote power management options of the UPS over the network. Many do not have NMC embedded.

Includes:

• 1x CD with Software

• 1x Documentation CD

• 1x Installation Guide

• 1x Rack Mounting Brackets

• 1x Removable Support Feet

• 1x Smart UPS Signalling RS-232 Cable

• 1x User Manual
