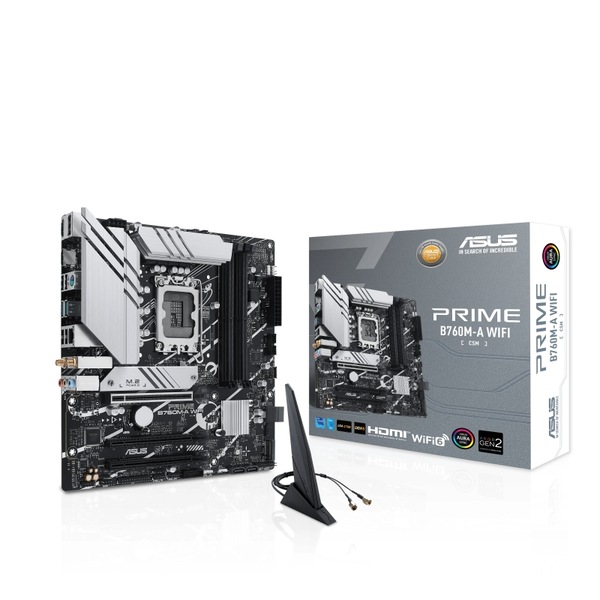

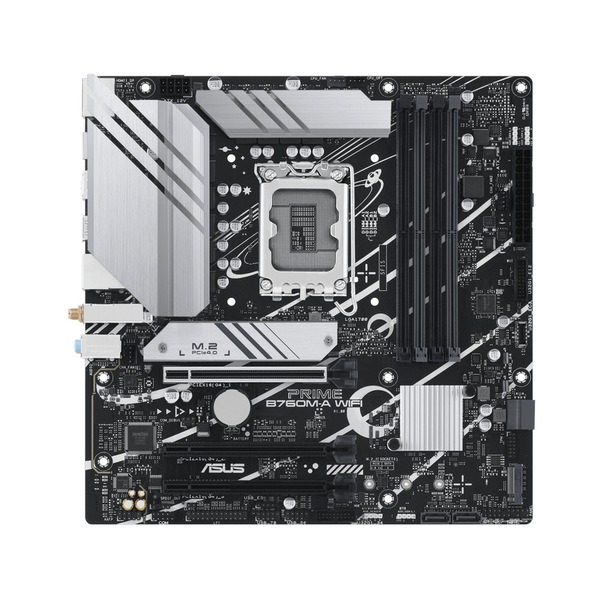

Asus PRIME B760M-A WIFI-CSM Motherboard, for Intel CPU, DDR5, LGA1700, Micro-ATX

1 Review

Image 1
Image 2
Image 3
Limited Stock
$274.77

Collect 274 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by Best Deal Computers
Secure ways to pay at checkout

AMD B650 Micro-ATX motherboard, DDR5, PCIe 5.0 M.2 support, WiFi 6, DisplayPort, HDMI™, SATA 6 Gbps, rear USB 10Gbps Type-A & Type-C® ports, front USB 5Gbps Type-C®, BIOS FlashBack™, Two-Way AI Noise Cancelation, Aura Sync

Features:
  • Ready for Advanced AI PC:Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
  • AM5 Socket for AMD Ryzenâ„¢ Desktop Processors
  • Ultrafast Connectivity:WiFi 6, M.2 PCIe 5.0, rear USB 10Gbps Type-A & Type-C® ports, front USB 5Gbps Type-C®
  • ASUS OptiMem II:Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking
  • Comprehensive Cooling:VRM heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
  • Aura Sync RGB Lighting:Onboard Addressable Gen 2 headers for RGB LED strips, easily synced with Aura Sync-capable hardware
  • Two-Way AI Noise Cancelation:Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences
  • CEC Tier II ready
  • ASUS Control Center Express:Real-time IT monitoring and management software for enhanced data protection
Specifications:
  • Model :PRIME B650M-A AX6-CSM
  • CPU :AMD Socket AM5 for AMD Ryzenâ„¢ 9000 & 8000 & 7000 Series Desktop Processors*
    * Refer toAsus official sitefor CPU support list.
  • Chipset :AMD B650 Chipset
  • Memory :4 x DIMM slots, max. 192GB, DDR5 7600+(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6
    400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800 ECC and Non-ECC, Un-buffered Memory*Dual channel memory architecture
    Supports AMD Extended Profiles for Overclocking (EXPOâ„¢)
    OptiMem II
    * Supported memory types, data rate (speed), and number of DRAM modules vary dep
    ending on the CPU and memory configuration, for more information please refer to
    CPU/Memory Support list under the Support tab of product information site or visithttps:// Asus official site/support/.* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
  • Graphics :1 x DisplayPort**
    1 x HDMIâ„¢ port***
    * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
    ** Supports max. 8K@60Hz as specified in DisplayPort 1.4.
    *** Supports 4K@60Hz as specified in HDMI 2.1.
  • Expansion Slots :AMD Ryzenâ„¢ 9000 & 7000 Series Desktop Processors*
    1 x PCIe 4.0 x16 slot (supports x16 mode)
    3 x PCIe 4.0 x16 slots (support x1 mode)
    AMD Ryzenâ„¢ 8000 Series Desktop Processors
    1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**
    3 x PCIe 4.0 x16 slots (support x1 mode)***
    * Please check the PCIe bifurcation table on the support site (https:// Asus official site/support/FAQ/1037507/).
    ** Specifications vary by CPU types.
    *** PCIEX16_4 slot will be disabled with some 8000 Series processors.
    - To ensure compatibility of the device installed, please refer tohttps:// Asus official site/support/for the list of supported peripherals.
  • Storage :Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*
    AMD Ryzenâ„¢ 9000 & 7000 Series Desktop Processors

    M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
    AMD Ryzenâ„¢ 8000 Series Desktop Processors
    M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
    AMD B650 Chipset
    M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
    M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode)
    4 x SATA 6Gb/s ports
    * AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10.
  • Ethernet :1 x Realtek 1Gb Ethernet
  • Wireless & Bluetooth :Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
    Supports 2.4/5GHz frequency band
    Bluetooth® v5.3*
    * The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
  • USB :Rear USB (Total 8 ports)
    2 x USB 10Gbps ports (1 x Type-A +1 x USB Type-C®)
    2 x USB 5Gbps ports (2 x Type-A)
    4 x USB 2.0 ports (4 x Type-A)
    Front USB (Total 9 ports)
    1 x USB 5Gbps connector (supports USB Type-C®)
    2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
    2 x USB 2.0 headers support 4 additional USB 2.0 ports
  • Audio :Realtek 7.1 Surround Sound High Definition Audio CODEC*
    - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
    - Supports up to 24-Bit/192 kHz playback
    Audio Features
    - Audio Shielding
    - Premium audio capacitors
    - Dedicated audio PCB layers
    * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
  • Back Panel I/O Ports :2 x USB 10Gbps ports (1 x Type-A + 1 x USB Type-C®)
    2 x USB 5Gbps ports (2 x Type-A)
    4 x USB 2.0 ports (4 x Type-A)
    1 x DisplayPort
    1 x HDMIâ„¢ port
    1 x Wi-Fi Module
    1 x Realtek 1Gb Ethernet port
    3 x Audio jacks
    1 x BIOS FlashBackâ„¢ button
  • Internal I/O Connectors :Fan and Cooling related
    1 x 4-pin CPU Fan header
    1 x 4-pin CPU OPT Fan header
    1 x 4-pin AIO Pump header
    3 x 4-pin Chassis Fan headers
    Power related
    1 x 24-pin Main Power connector
    1 x 8-pin +12V Power connector
    Storage related
    3 x M.2 slots (Key M)
    4 x SATA 6Gb/s ports
    USB
    1 x USB 5Gbps connector (supports USB Type-C® )
    2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
    2 x USB 2.0 headers support 4 additional USB 2.0 ports
    Miscellaneous
    3 x Addressable Gen 2 headers
    1 x Clear CMOS header
    1 x COM Port header
    1 x Front Panel Audio header (F_AUDIO)
    1 x S/PDIF Out header
    1 x Speaker header
    1 x SPI TPM header (14-1 pin)
    1 x 10-1 pin System Panel header
  • Special Features :ASUS 5X PROTECTION III
    - DIGI+ VRM
    - LANGuard
    - Overvoltage Protection
    - SafeSlot Core+
    - Stainless-Steel Back I/O
    ASUS Q-Design
    - Q-DIMM
    - Q-LED Core
    - Q-Slot
    ASUS Thermal Solution
    - VRM heatsink design
    ASUS EZ DIY
    - BIOS FlashBackâ„¢ button
    - BIOS FlashBackâ„¢ LED
    Aura Sync
    - Addressable Gen 2 headers
  • Software Features :ASUS Exclusive Software
    Armoury Crate
    - Aura Creator
    - Aura Sync
    - Fan Xpert 2+
    - Power Saving
    - Two-Way AI Noise Cancelation
    AI Suite 3
    - TurboV EVO
    - DIGI+ VRM
    - PC Cleaner
    ASUS CPU-Z
    IT Management software supported
    - ASUS Control Center Express(ACCE)
    Norton 360 Deluxe (60 Days Free Trial)
    WinRAR (40 Days Free Trial)
    UEFI BIOS
    ASUS EZ DIY
    - ASUS CrashFree BIOS 3
    - ASUS EZ Flash 3
    - ASUS UEFI BIOS EZ Mode
  • BIOS :256 Mb Flash ROM, UEFI AMI BIOS
  • Manageability :WOL by PME, PXE

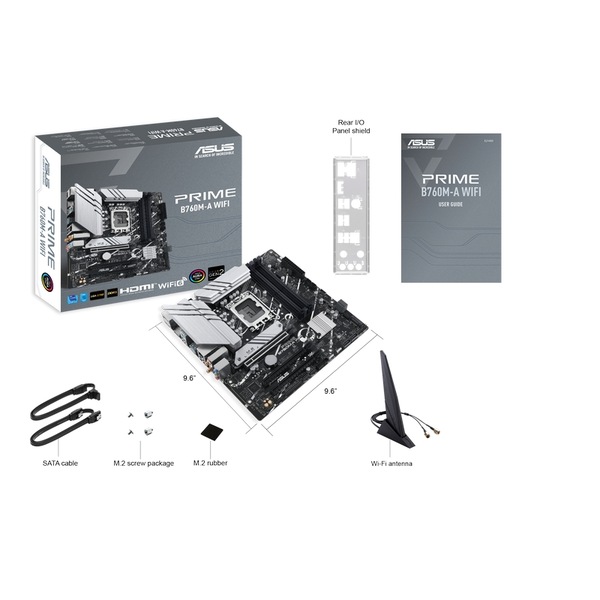

  • Accessories :Cables
    2 x SATA 6Gb/s cables
    Miscellaneous
    1 x ASUS Wi-Fi moving antenna
    1 x I/O shield
    2 x Screw packages for M.2 SSD
    Documentation
    1 x ACC Express Activation Key Card
    1 x Quick start guide
  • Operating System :Windows® 11, Windows® 10 64-bit
  • Form Factor :micro-ATX Form Factor
    9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)

SKU: MB-ASU-B760MAWC
