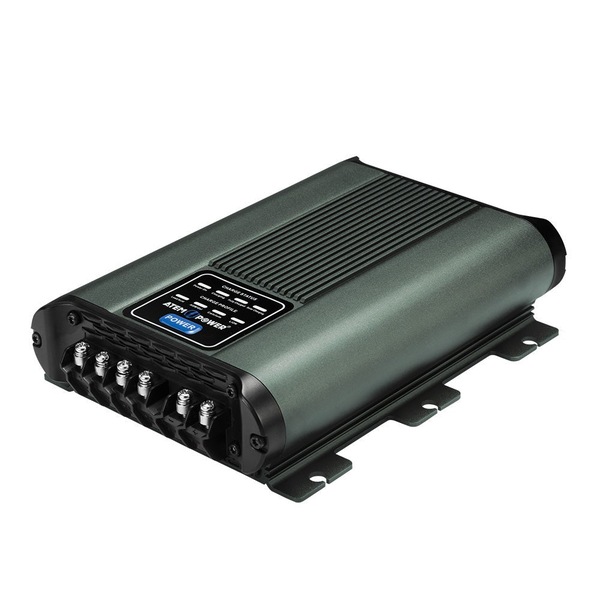

Battery Charger DC to DC 12V 40A MPPT System Kit Isolator Dual Atempower

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Image 8
Image 9
Image 10
Image 11
$186.95

Collect 186 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by Salesbay
Secure ways to pay at checkout
Pay in 4 interest-free payments of $46.74 with PayPal
Features

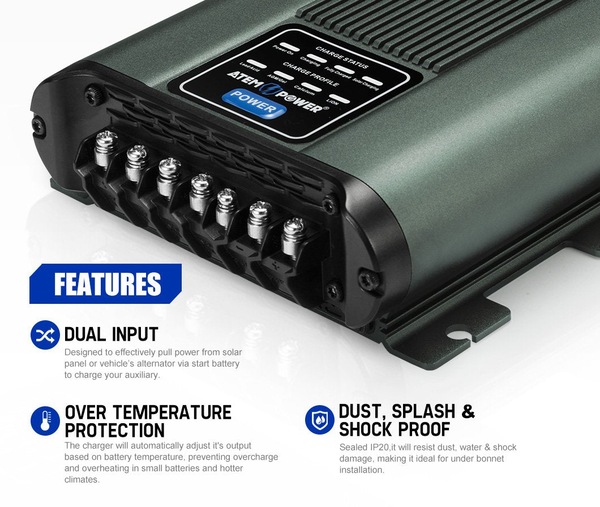

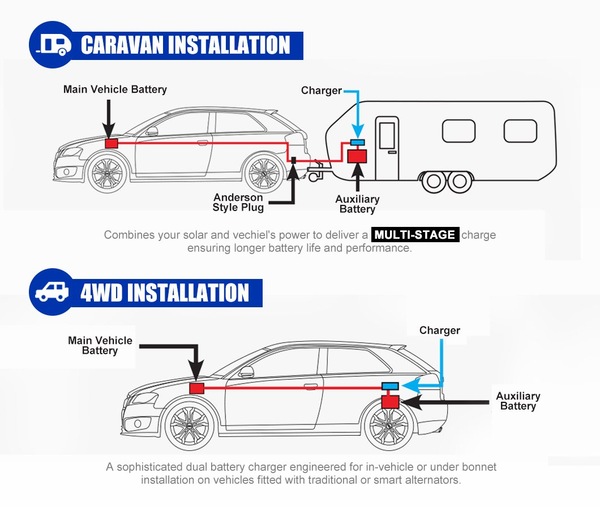

  • Dual Input: This Charger is designed to effectively pull power from solar panel (up to 40A) or vehicle’s alternator to charge your auxiliary battery.

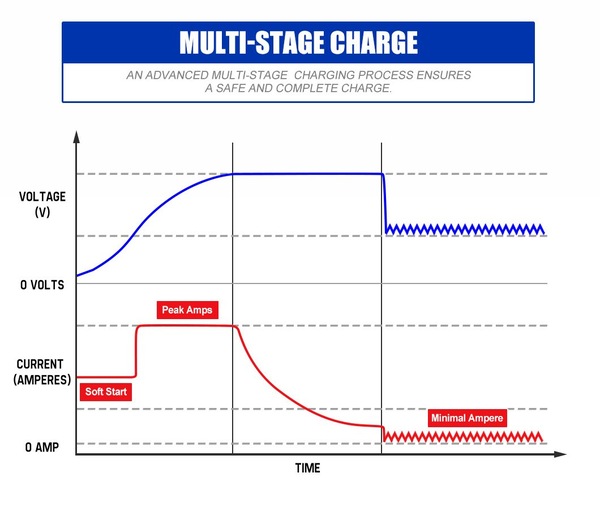

  • Multi-Stage Charging: This charger integrates standby, pre-charge, constant current charging, constant voltage charging, full charge and re-charge.
  • Multi Battery Selection: This DC to DC charger by ATEM POWER is compatible with Lead Acid, AGM, Gel, calcium, Li-ion batteries.

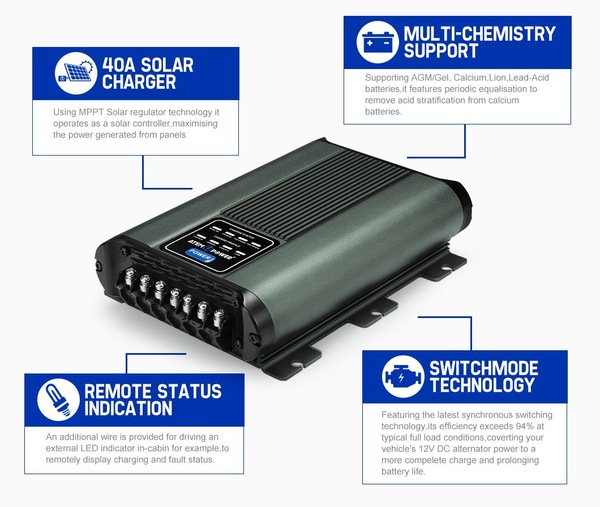

  • Built-In MPPT Regulator: The regulator is designed to harvest up more energy from the solar panel to reduce the load on your engine.
  • Multiple Protection: It integrates over-charge, short circuit, over-temperature, thermal load, solar input overload, input/output reverse polarity protection.
  • Internal Temperature Monitoring: This mechanism can effectively protect the circuit board to prolong the lifespan of the charger.
  • Sturdy Construction: Sturdy aluminum housing is built to resist harsh conditions and quality wires are built for durability.
  • Upgraded Charging Algorithm: This algorithm is designed to select the optimum charge mode and revive your discharged battery.

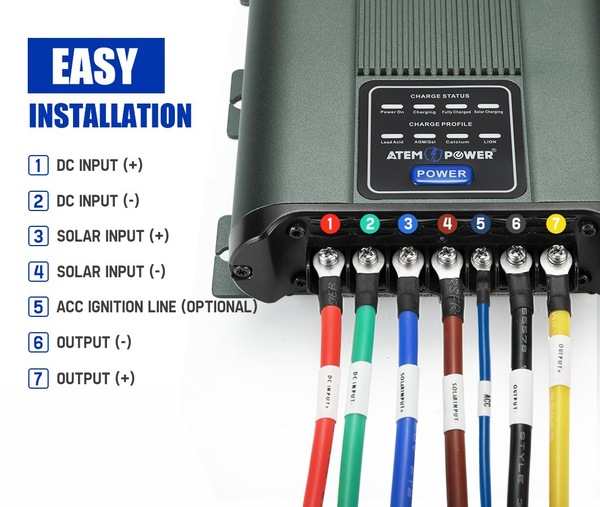

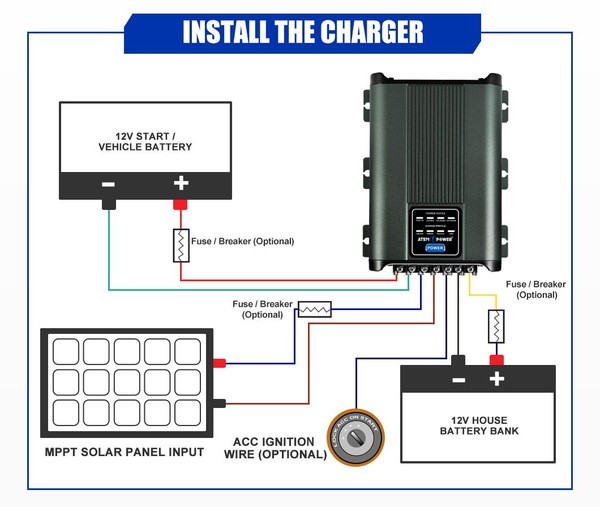

  • Smart Alternator Compatible: The ACC wire can be wired to the ignition to adjust voltage cut off, which is suitable for modern vehicle,trailers and caravans.

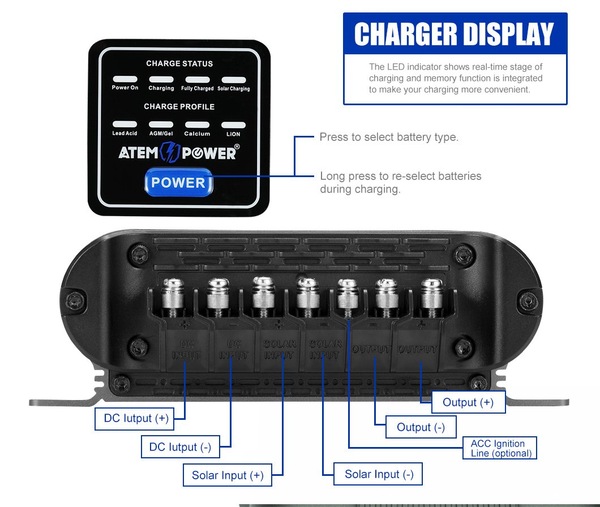

  • User Friendly Design: The LED indicator shows real-time stage of charging and memory function is integrated to make your charging more convenient.
Specifications
  • Type: Multi Stage
  • Warranty: 1 year
  • Input: DC Battery: 12.5~16.0Volts
  • Solar Input: 16.0-25.0 Volts
  • Output/Charging Voltage: 14.4~15.4 Volts(Stops charging when alternator output or vehicle battery below 12.5 volts)
  • Max Output Current: DC Output: 40A
  • Max Solar Output: 40A
  • Minimum Start Voltage: 2.5 Volts-For battery being charged
  • Soft Start: Yes
  • Max Soft Charge Current: 40A
  • Bulk Charge Voltage: 14.7V(AGM/Gel)14.4V(Lead Acid)15.4V(Calcium)14.4V(Li-ion)
  • Absorption: Constant voltage with automatic amperage control
  • Equalisation: Automatic
  • Float Charge Voltage: 13.5V(AGM/Gel)13.5V(Lead Acid)13.5V(Calcium)
  • Float Charge Current: 100mA
  • Battery Range: 120 to 1200Ah
  • 0-1 Metres: 10AWG
  • 1-5 Metres: 6 AWG
  • 5 Metres+: 4 AWG

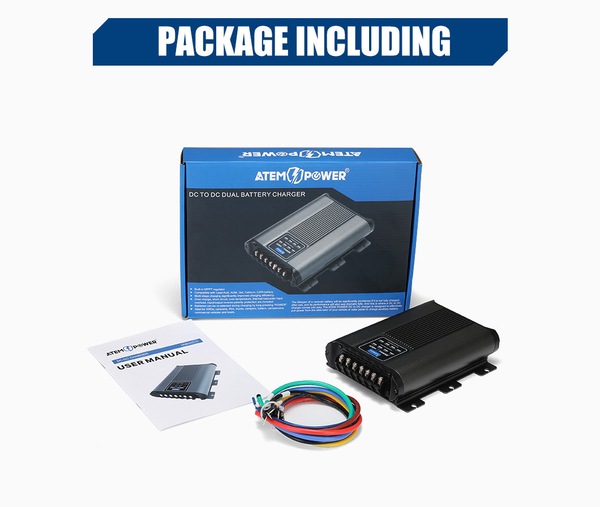

  • Package contents: 1x ATEM POWER 40A DC-DC Charger, 1x Manual
Please note

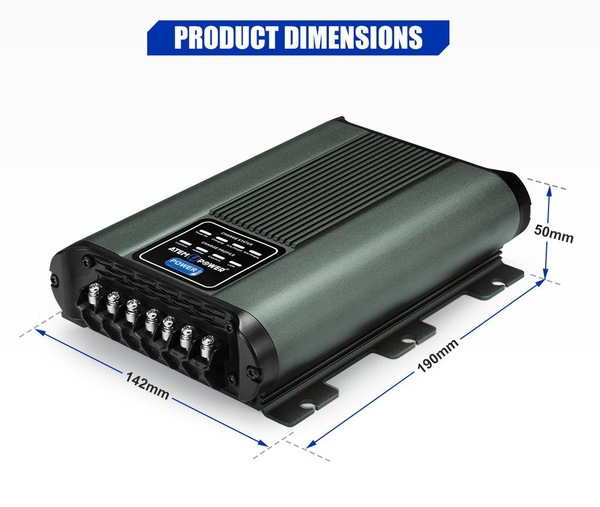

  • Please allow some leeway in size dimensions due to hand measurements.

GTIN: 7446936331307
