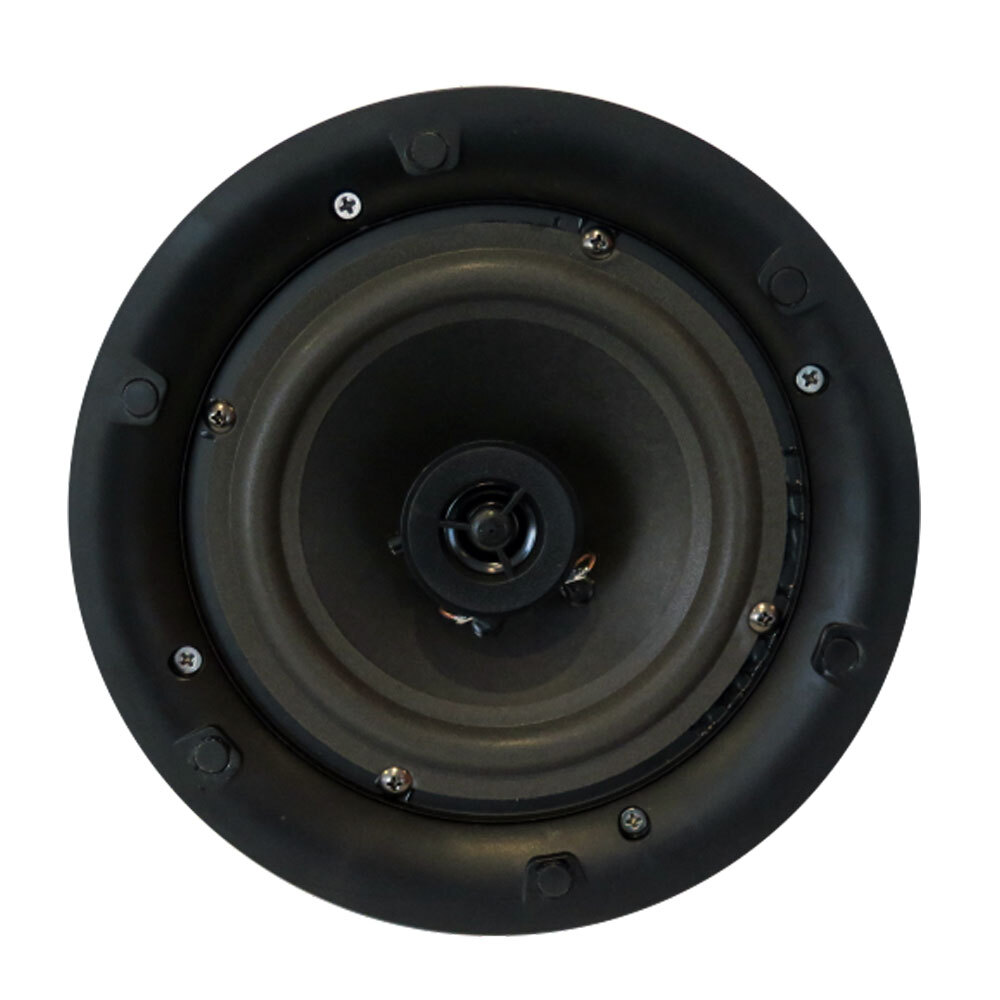

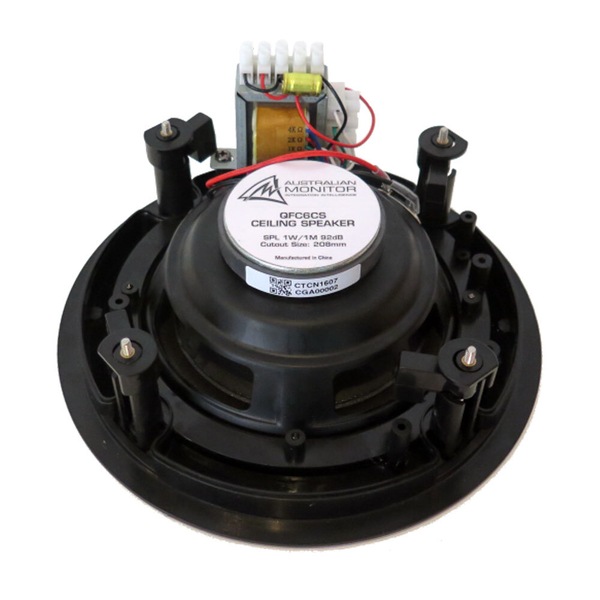

The all-new QuickFit coaxial series of ceiling speakers feature 3 new models, each model comprises a 2-way coaxial driver producing high SPL and intelligibility.
The frameless grills provide a modern sleek look sure to please end-users, consultants and architects alike.
If you require a black ceiling speaker it’s as easy as changing the grill.
A black grill for each model can be purchased separately as an accessory.
The QFC5CS, QFC6CS and QFC8CS series of QuickFit ceiling speakers are the perfect choice for situations demanding high intelligibility and SPL.
Australian Monitor Quick Fit 6" Ceiling Speaker 208mm is recommended for function rooms, school halls, retail spaces, boardrooms, place of worship, RSL’s, clubs, rubs, Restaurants and many other commercial applications.
Each model also features a supervisory capacitor as standard to allow for evacuation system integration.
EASE®GLL files simulation files are available for QuickFit ceiling speakers. EASE®is a registered trademark of AFMG Technologies GmbH
Key Features
6 inch coaxial high powered driver

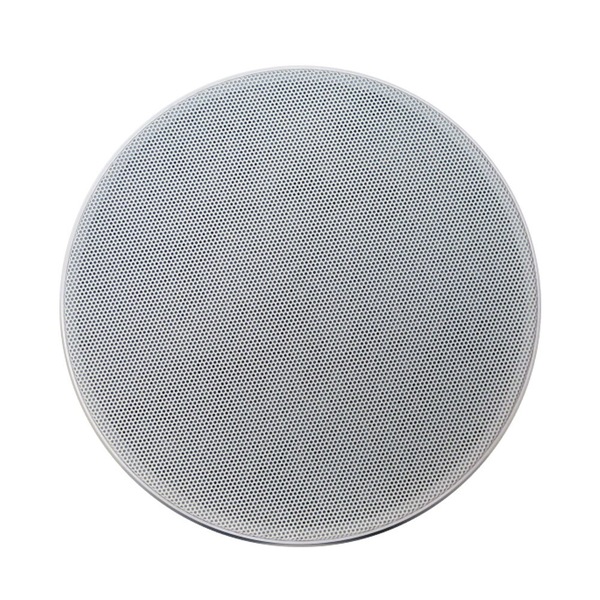

QuickFit white frameless powder-coated steel grill
2.5, 5, 10, 20 watt taps @ 100V
Evac. capacitor as standard
Colour: White
AU/NZ Plug
Form Factor: Ceiling
Tappings: 20W-10W-5W-2.5W-1.25W
EASE Model: Yes
Powered: Passive
Driver Diameter: 6" & 25mm
Dimensions Approx.: 23.2 x 9 cm (WxD)
Weight Approx.: 1.2 kg
Max Continuous Power: 20 W
Max Program Power: 40 W
Max Peak Power: 80 W
SPL 1W/1m: 92dB
Max SPL RMS: 105dB
Frequency Response (-3dB): 70Hz - 20kHz
Dispersion: 100 deg
This item comes with a 12-month warranty.
