AX3000 WIFI6 TRAVEL ROUTER
,gravity=Center,allowExpansion)
,gravity=Center,allowExpansion)
,gravity=Center,allowExpansion)
,gravity=Center,allowExpansion)
Collect 189 Everyday Rewards points
Collect 189 Everyday Rewards points
1: Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput, wireless coverage and number of connected devices are not guaranteed and will vary as a result of network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.
2: Use of 802.11ax (Wi-Fi 6) and its features require clients to also support corresponding features.
3: 2.5 Gbps internet speeds require compatible service plans and equipment. Actual network speed may be limited by the rate of the product's Ethernet WAN or LAN port, the rate supported by the network cable, internet service provider factors, and other environmental conditions.
4: It is recommended to use the supplied power adapter. If you use other power adapters, there is a risk of damaging the device.
5: The scenarios are only for illustration, and users can choose the corresponding mode according to actual needs. Whether the USB Internet Sharing function can be used depends on the compatibility of the 3G/4G USB Modem or mobile device, and is not guaranteed to be compatible with all devices.
WIRELESS | Standards and Protocols |
|
---|---|---|
Wi-Fi Speeds |
|
|
Wi-Fi Capacity |
|
|
Working Modes |
|
|
SECURITY | Network Security |
|
Guest Network |
|
|
VPN Server |
|
|
VPN Client |
|
|
Wi-Fi Encryption |
|
|

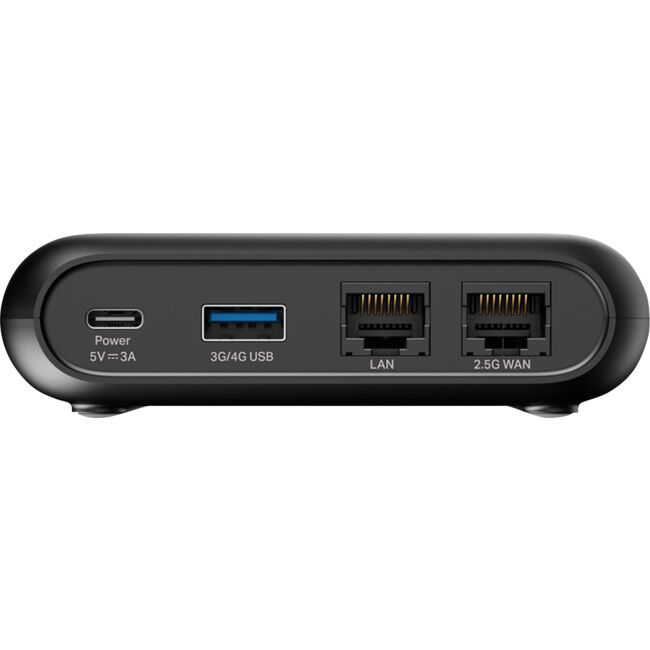

HARDWARE | Ethernet Ports |
|
USB Support | 1 × USB 3.0 Port | |
Buttons |
|
|
Power | 5V/3A, External DC power adapter | |
SOFTWARE FEATURES | Quality of Service | QoS by Device |
WAN Type |
|
|
Management Features |
|
|
DHCP |
|
|
Protocols |
|
|
TEST DATA | Wi-Fi Transmission Power | CE:
|
Wi-Fi Reception Sensitivity | 2.4GHz:
|
|
ENVIRONMENT | Operating Temperature | 0°C~40°C (32°F~104°F) |
Storage Temperature | −40°C~60°C (−40°F~140°F) | |
Operating Humidity | 10%~90% non-condensing | |
Storage Humidity | 5%~90% non-condensing | |
OTHER | Dimensions (W×D×H) | 105mm × 91.3mm × 30mm (4.1″ × 3.6″ × 1.2″) |
Package Contents |
|
|
Certifications | FCC, CE |
TL-WR3002X
Fastest, Most Capable
Wi-Fi 6 Travel Router
|
TL-WR1502X
Budget-Friendly
Wi-Fi 6 Travel Router
|
TL-WR902AC
Basic Dual-Band
Travel Router
|
TL-WR802N
Small, Simple, Basic
Travel Router
|
---|---|---|---|
Wi-Fi Standard | |||
Wi-Fi 6 | Wi-Fi 6 | Wi-Fi 5 | Wi-Fi 4 |
Wi-Fi Speeds | |||
AX3000 | AX1500 | AC750 | N300 |
Bands Supported | |||
2.4GHz, 5GHz | 2.4GHz, 5GHz | 2.4GHz, 5GHz | 2.4GHz |
5G Speeds | |||
2402 Mbps | 1201 Mbps | 433 Mbps | – |
2.4G Speeds | |||
574 Mbps | 300 Mbps | 300 Mbps | 300 Mbps |
Modes | |||
Router, Access Point, Range Extender, USB Tethering, USB Modem, Client, Hotspot | Router, Access Point, Range Extender, USB Tethering, USB Modem, Client, Hotspot | Router, Access Point, Range Extender, Client, Hotspot | Router, Access Point, Range Extender, Client, Hotspot |
Captive Portal Authentication | |||
One-Step | One-Step | – | – |
VPN Support | |||
OpenVPN, WireGuard, PPTP, L2TP | OpenVPN, WireGuard, PPTP, L2TP | PPTP, L2TP | PPTP, L2TP |
Ethernet Ports | |||
1 × 2.5 Gbps WAN 1 × 1.0 Gbps LAN |
1 × 1.0 Gbps WAN
1 × 1.0 Gbps LAN |
1 × 10/100 Mbps
WAN/LAN |
1 × 10/100 Mbps
WAN/LAN |
USB Port | |||
1 × USB 3.0 | 1 × USB 2.0 | 1 × USB 2.0 | – |
microSD / TF Card Slot | |||
1 × up to 512GB | – | – | – |
Physical Dimensions | |||
104mm × 90mm × 28mm (4.1″ × 3.5″ × 1.1″) |
104mm × 90mm × 28mm (4.1″ × 3.5″ × 1.1″) |
74mm × 67mm × 22mm (2.9″ × 2.6″ × 0.9″) |
57mm × 57mm × 18mm (2.2″ × 2.2″ × 0.7″) |
Year Released | |||
2024 | 2024 | 2017 | 2015 |
