• 350A Battery Monitor is able to monitor the amperage flowing out of the battery



• bank & Measure currents up to 500 amps. Voltage, current, consumed power & battery capacity is all accurately measured & displayed on the LCD screen in



• real- time. The Battery Monitor is intended to help maintain battery systems for



• 12V deep cycle batteries, such as ones found in RV, boats or off grid homes,



• which are regularly charged & discharged



• High precision Current detection; accurate Battery SOC%



• High and low voltage programmable alarm - backlight and voltage value will flash



• Simultaneously



• Data storage - designed to automatically store the last testing data when system



• shuts off

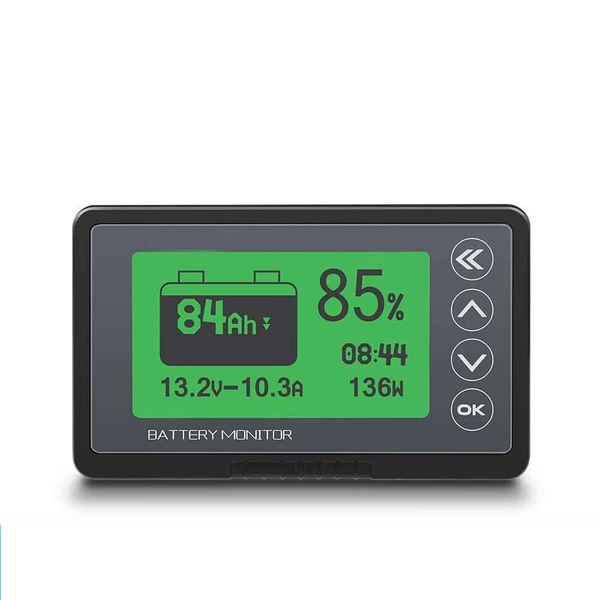

• Large backlit LCD displays multiple electronic parameters (voltage, current,



• consumed power and battery capacity



• Universal Battery Monitor- voltage range 10v-120v and up to 350A

Specifications:

• Working Voltage: 10-120V



• Working Dissipation: 10-15mA



• Standby Dissipation: 1-2mA



• Temperature range: 0-35oC



• Weight: 2.6 oz / 75 g



• Size: 3.9 x 2.4 x 0.7 in / 100 x 61 x 17 mm
