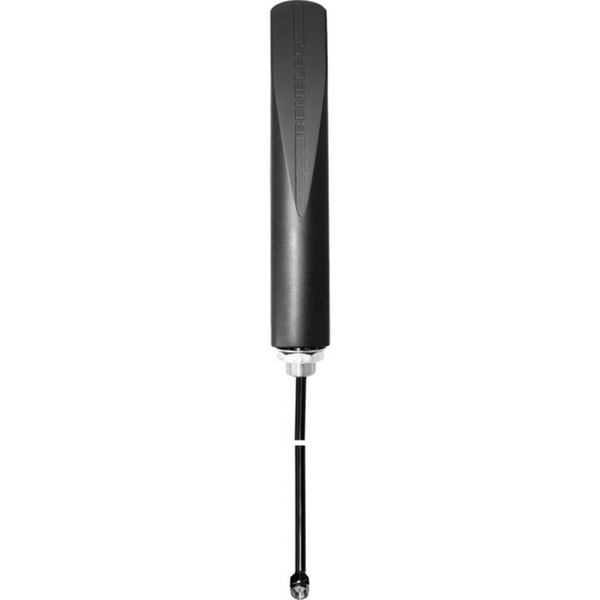

BENELEC 024584 5G Cellular Multi Band 186mm Antenna 3m Cable with SMA Plug

Image 1
Hurry! 2 items left!
$110

Collect 110 Everyday Rewards points

Log in to MyDeal to link your card
Free Shipping
Sold & shipped by Bourne Superstore
Secure ways to pay at checkout
024584 4G CELLULAR ALL BAND ANTENNA - BENELEC

The model 024584 is an economically priced, compact, unity gain all band antenna suited for use in the bands 690-960 & 1710-2700 MHz. It comes standard – complete with 3.0 metres of low loss cable terminating in an SMA connector suited for mounting onto a wall bracket.
This antenna can be used inside or outside, in mobile or fixed applications. The 024584 is decoupled from the feed cable and offers a clean radiation pattern at all frequencies.

Applications:

Fixed and mobile solutions suited for use in the cellularbands 690-960 MHz & 1710-2700 MHz.

Features:
  • Cellular all band
  • Economically priced
  • Compact
  • Can be used inside or outside
  • Comes complete with 3M of low loss cable terminating in an SMA connector
  • Reliable & Durable
Specifications:

Frequency: @ 690-960 MHz, Tuned Bandwidth 270 MHz; 1710-2700 MHz Tuned Bandwidth 990 MHz.

VSWR: 2.2:1 max

Gain: 2.54dbi min

Impedance: 50 Ohm nom

Radiation Pattern: Omni directional

E Plane Beamwidth: 80 Deg

Length: 186mm

Weight: 120g

Termination: 3m Low loss Cable tail, SMA Male

Windloading @160 KPH: 1.85kg






Specifications:

12 Months

MPN: 024584

Estimated Delivery Time Frame:5-7 business days
