Biometric Smart Ultra Slimline Handle Door Lock for Aluminum Panel Glass Door

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Hurry! 1 items left!
$639.40

Collect 639 Everyday Rewards points

Log in to MyDeal to link your card
Free Shipping
Sold & shipped by Forge Electrical
Secure ways to pay at checkout
  • Perfect fit for aluminum frame glass doors

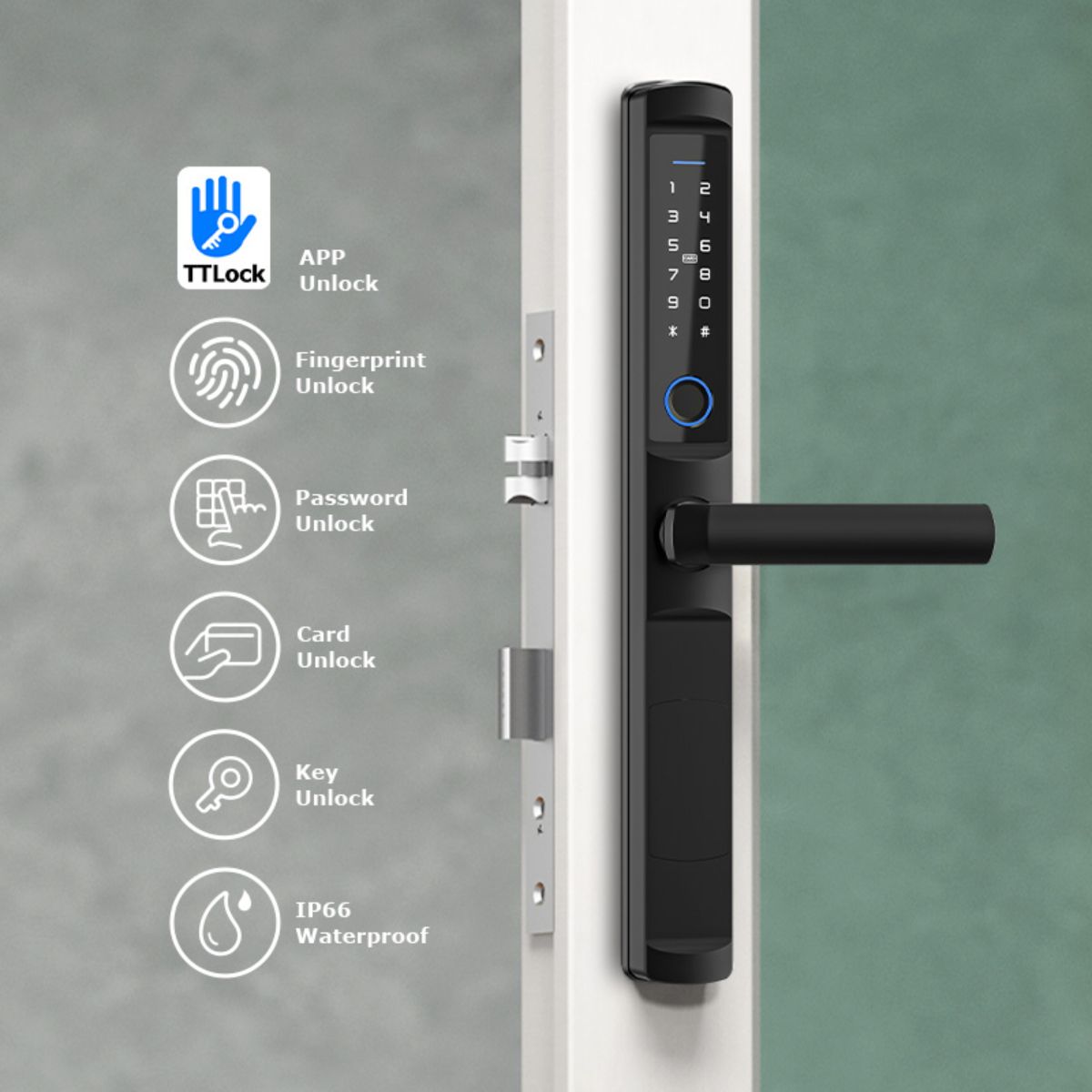

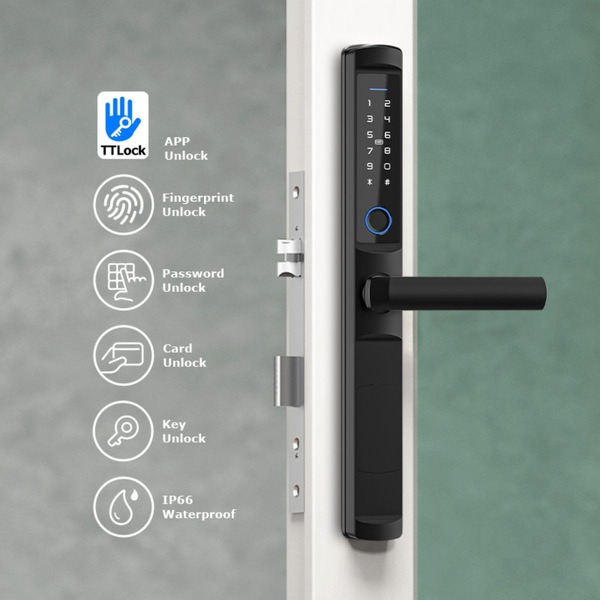

  • Unlock with fingerprints, passcodes, RFID cards, physical keys, and the app
  • Heavy duty 304 stainless steel lock set
  • Supports both swing and sliding doors
  • Suitable door thickness: 38-55mm

Specifications:

specification=

Will it fit my door?
Suitable Door Thickness: 38-55mm (can suit thinner doors with minor modification)

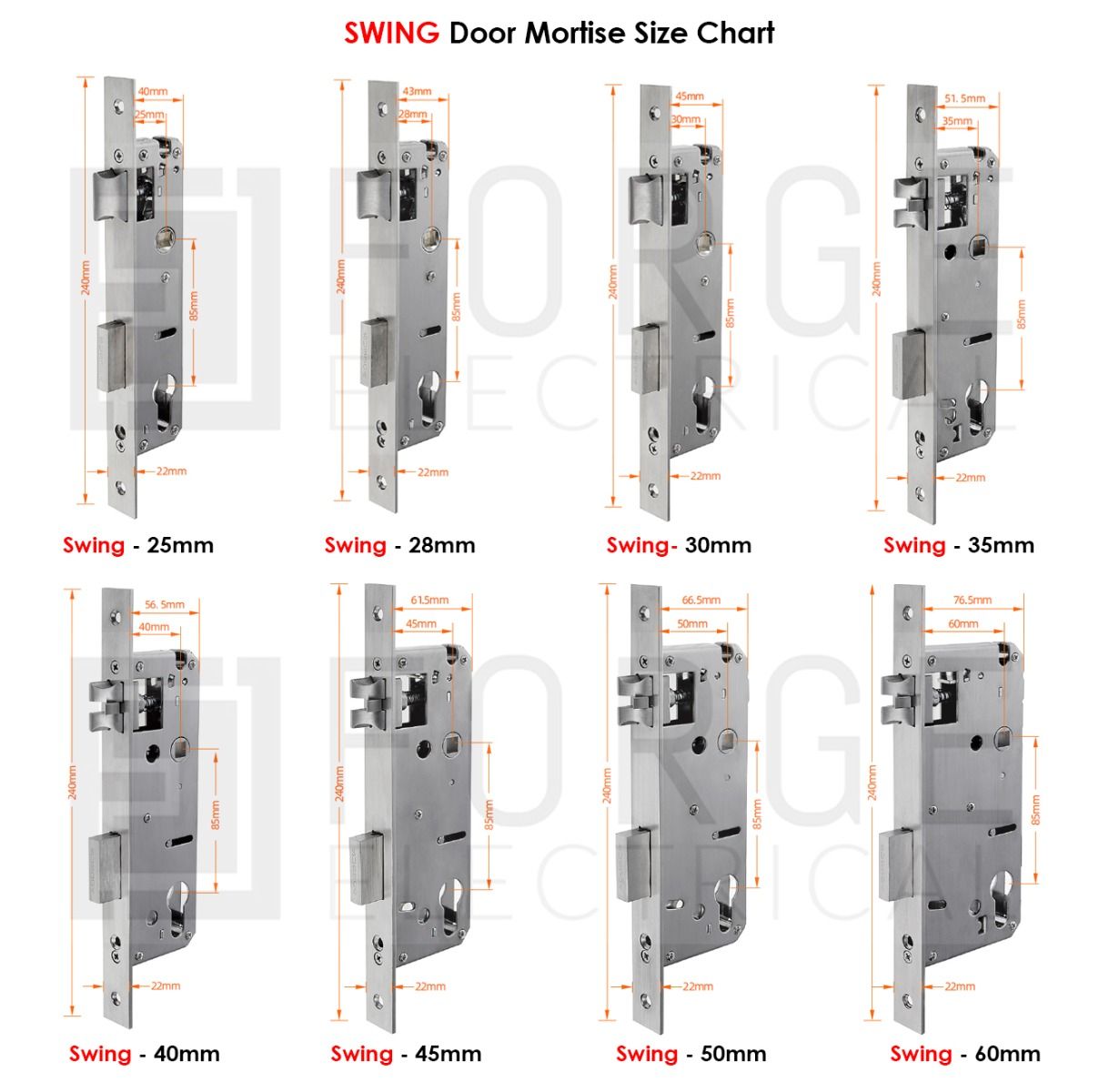

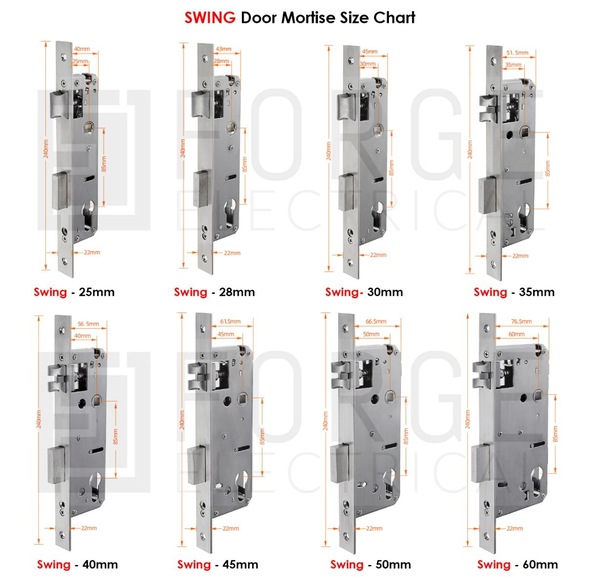

Minimum Lock Stile Requirement (If not a flat panel):
- Mortise with 25mm backset: 46mm
- Mortise with 30mm backset: 48mm
- Mortise with 35mm backset: 53mm
- Mortise with 40mm backset: 58mm
- Mortise with 45mm backset: 63mm
- Mortise with 60mm backset: 78mm

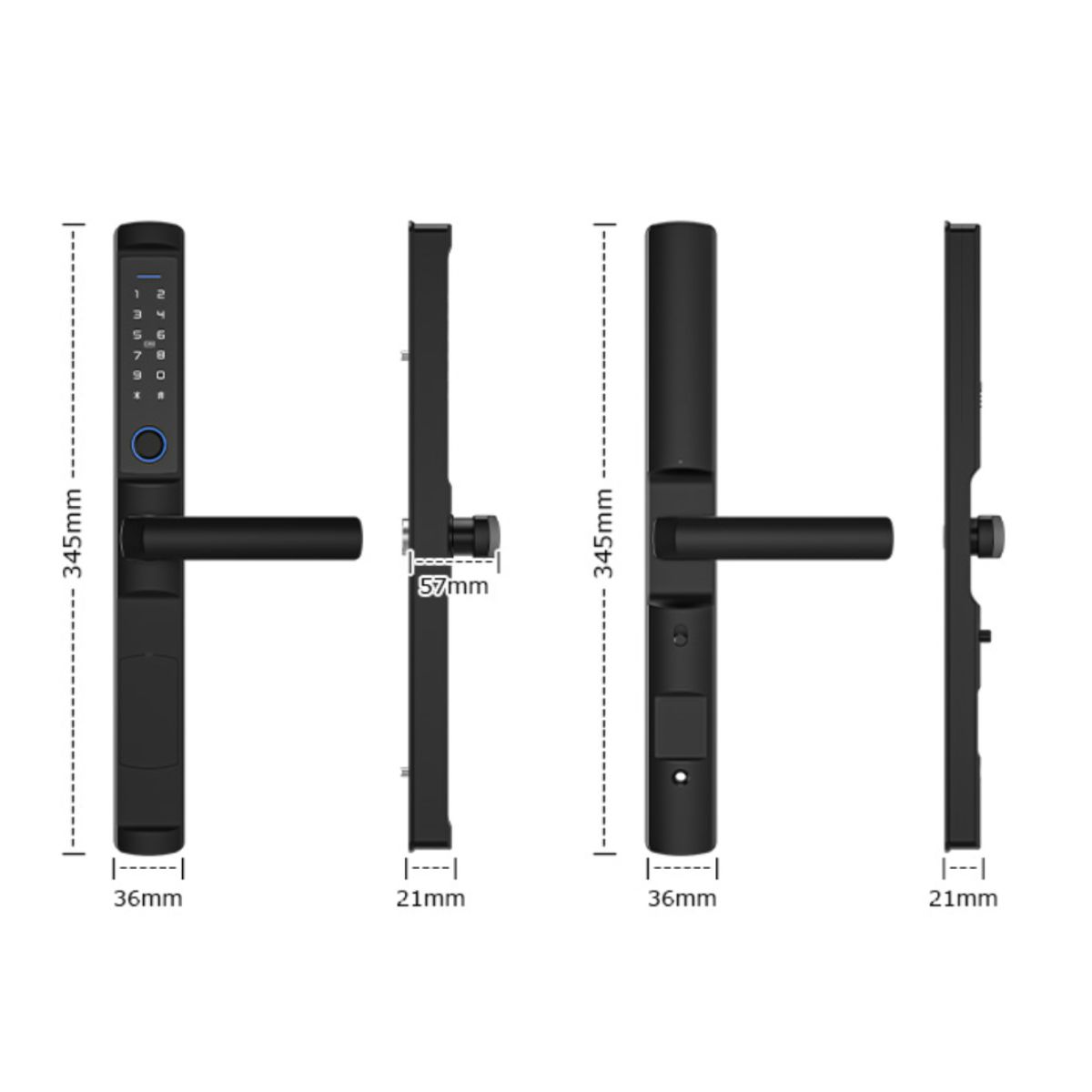

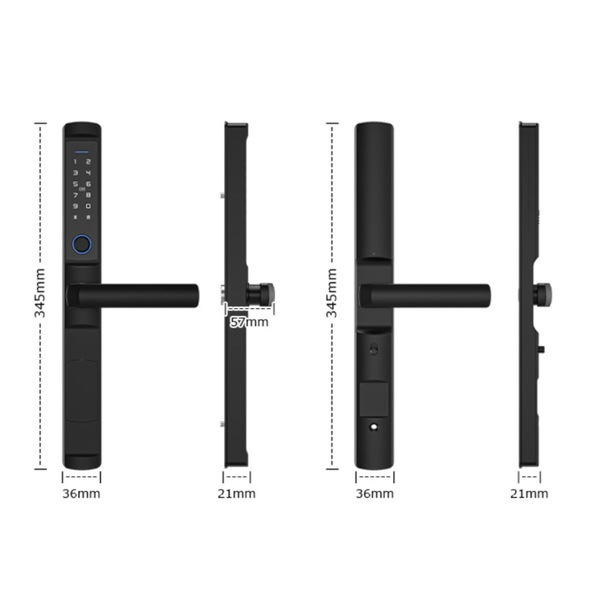

Faceplate Dimensions: 36x345mm

These measurements identify the feasibility of replacing an existing lock.
If unsure - please call us and we can support you to find the most suitable options.

Door Thickness
The most common door thickness in Australia is 35-38mm.
Some doors may have a 40mm or above thickness.

Backset
The distance from the keyhole to the edge of the door.
The most common backset in Australia is 60mm.

Maximum Lock Stile
The distance between the edge of the door to any glass or art inlays.
Ignore this if your door is completely a flat panel.

Faceplate Dimensions
The physical size of the lock on the door surface.
Pay attention to this if you are replacing your existing lock or want to cover an unpainted surface.
It is much easier to replace a smaller faceplate with a larger faceplate.

,detailed_description=

  • The ultra slim (36mm wide) 5-in-1 smart handle lock is the perfect fit for aluminum frame glass doors and other types of doors with minimal space for the mortise
  • Unlock with fingerprints, passcodes, RFID cards, physical keys, and the app (with Bluetooth connection)
  • Heavy duty 304 stainless steel lock set
  • Ideal for both internal and external doors with IP66 weatherproof rating
  • Supports both swing and sliding doors (with different lock body size options, talk to us if you need advice)
  • Suitable door thickness: 38-55mm
  • With a backup USB type-C power supply port - just plug in a power bank in case of a flat battery

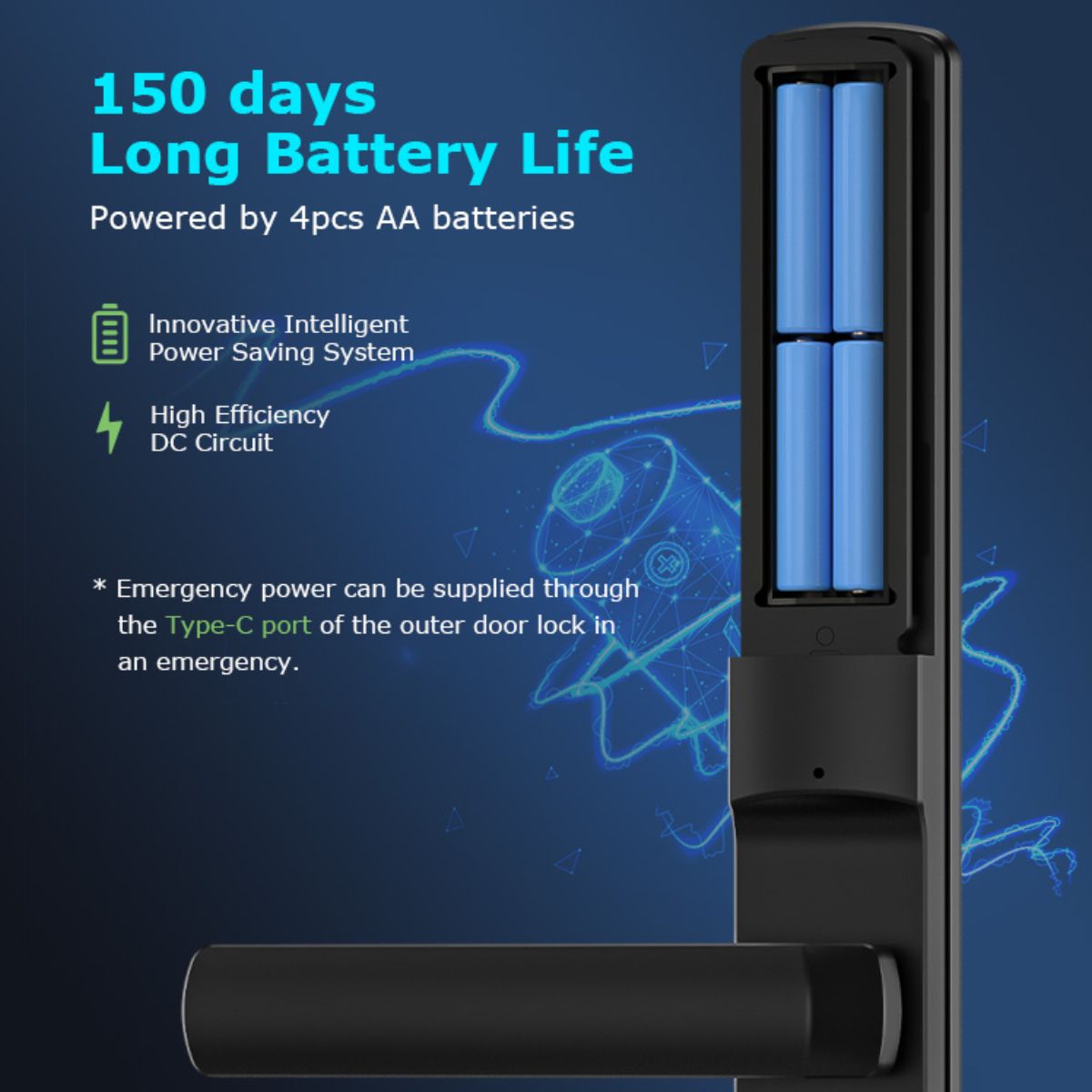

  • Long battery life up to 150 days with 4 AA batteries.
  • With loud and clear voice prompts for easy operation and low battery warning
  • With optional Wi-Fi bridge upgrade to allow for remote access management

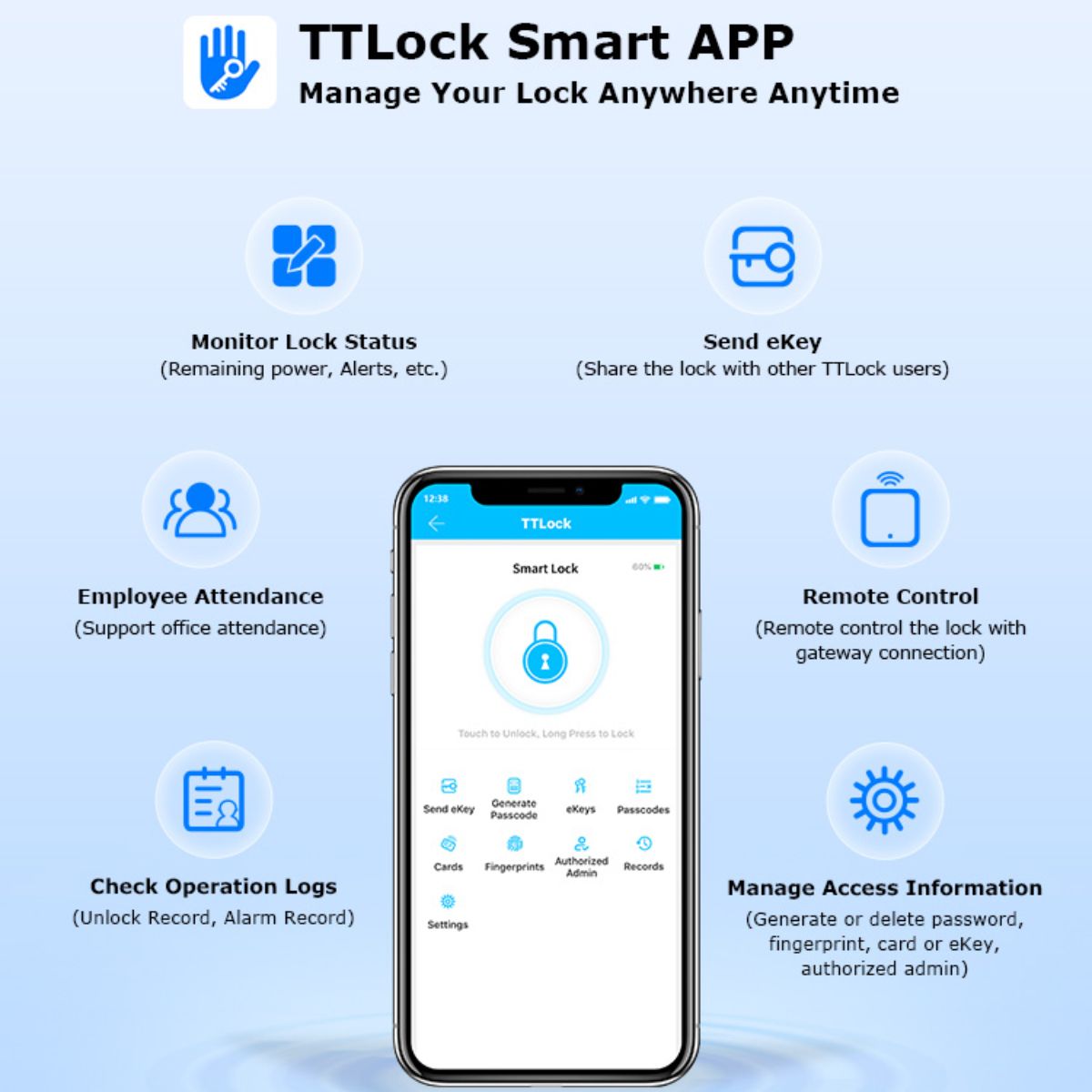

  • True keyless electronic access management via the app - see entry logs of when/who and issue temporary passcodes
  • With API ports for further customization and control



Product Warranty

This product comes with a 2 Years Standard Warranty.



Commercial Enquiry



Talk to us now about commercial and bulk orders. Call: 1800136743 Email: sales@forgeelectrical.com.au

GTIN: 0665386643557
