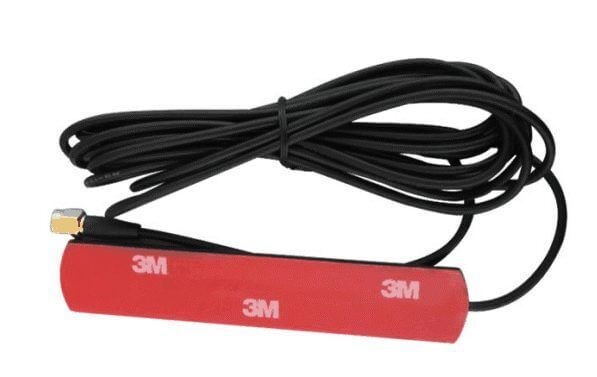

Blackhawk 3m Cable 4G LTE Signals Adhesive Mount Antenna SMA Male Connector Black

Image 1
$42.90

Collect 42 Everyday Rewards points

Log in to MyDeal to link your card
Free Shipping
Sold & shipped by Bourne Superstore
Secure ways to pay at checkout

The Blackhawk 4G & IoT adhesive mount antenna is a modest performing mobile antenna that covers most worldwide 4G cellular bands between 700 and 2700 MHz. It is commonly used to improve 4G signal strength in metering and telemetry.

Adhesive antennas are compact in design which allows unobtrusive and convenient installation in vehicles, machinery, and electronic signage.

This type of antenna design contains a simple PCB microstrip element which has been shaped to transmit across the entire wide operating frequency range with high efficiency. While peak gain is not an important consideration in this type of antenna, the model provides a stable gain of around 3 dBi which is quite typical of this design.

Ideal for boosting 3G and 4G LTE signals where mounting access is a problem.

Ideal for Telstra Next-G and 4GX networks, Optus, and Vodafone 3G/4G.

FEATURES

  • 3.5 dBi gain across lower bands 698-960 MHz
  • 3.5 dBi gain across upper bands 1710-2700 MHz
  • Mounting by 3M sticker
  • Connector Type SMA Male
  • Cable length 3 metres
ELECTRICAL SPECIFICATIONS
Frequency Range (MHz) 698-960/1710-2700 MHz
Input Impedance 50
VSWR ≤3.0
Gain (dBi) 3.5
Polarisation Type Vertical
Radiation Direction Omni Directional
Maximum Input Power 50 W
MECHANICAL SPECIFICATIONS
Antenna Length 115x21x3mm
Cable 3000mm
Connect Type SMA Male
Mounting 3M Sticker
Radome Color Black
Cable RG174
Suction 0.7 kg
Attachment Welding

MPN: ANT-BH-00045
