Connector | SMA Male with 4.5 m Coax Cable |
Dimensions | ᴓ16 x 600 mm |
Weight | 1.2 kg |
Reflector Material | Copper |
Radome Material | Fibreglass |
Antenna Colour | Black |
Operating Temperature | -40°C to +65°C |
Mounting Pole |
ᴓ38 –
|
This premium grade antenna will satisfy 3G and 4G capabilities for all the major networks in Australia and can be used for commercial and industrial 3G and 4G applications.

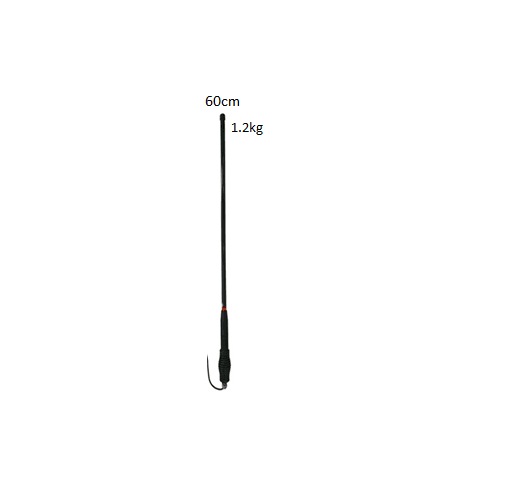

The Blackhawk Omni Trucker Edge Compact LITE at 60 cm will provide the perfect solution for voice and data applications. It is lighter in weight than its sister antenna the Trucker Edge Compact, weighing only 1.2 kg. The new design includes a smaller barrel which helps reduce weight and minimises vibration and subsequent damage caused by driving on corrugated roads found in remote and harsh environments.
Frequency Range,MHz | 698-960 | 1710-2170 |
Gain, dBi | 4 | 5 |
VSWR | ≤ 2.0 | ≤ 2.0 |
Polarization | Vertical | |
Horizontal Beam-width | 360° | |
Vertical Beam-width | 48° | 29° |
Input Impedance | 50 Ω | |
Max. Input Power | 50 W | |
Lightning Protection | DC Ground |
