Blustream 100M 4K 30Hz Dolby IP Multicast UHD Video Receiver 1GB w/ Video Scaler

Image 1
Image 2
Hurry! 1 items left!
$1033.20

Collect 1033 Everyday Rewards points

Log in to MyDeal to link your card
Free Shipping
Sold & shipped by KG Superstore
Secure ways to pay at checkout
Pay in 4 interest-free payments of $258.30 with Learn More

Our UHD Multicast distribution platform allows virtually latency free (1 frame) distribution of HDMI video over a 1GbNetwork switch.

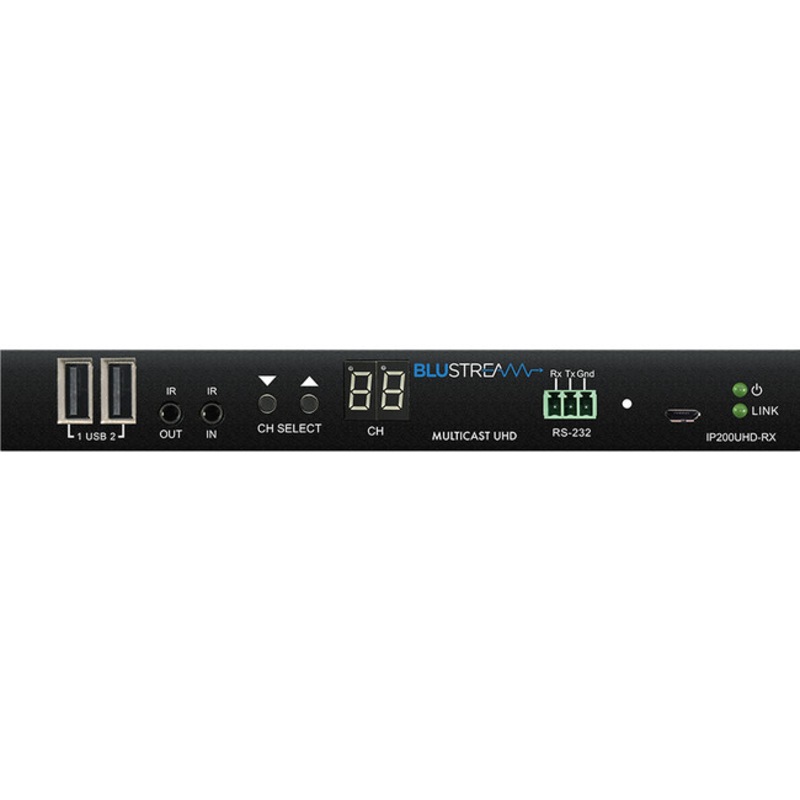

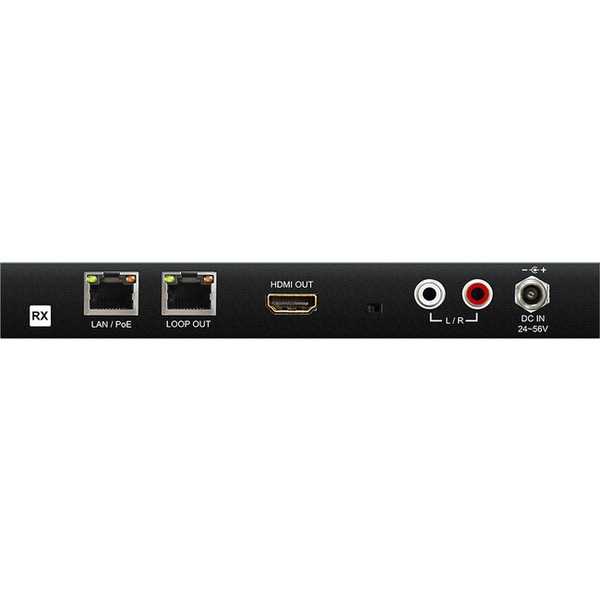

The IP200UHD-RX is an industry leading 4K HDCP 2.2 HDMI video scaling receiver that using visually lossless compression technology delivers HDMI, Bi-directional IR, RS-232 & USB/KVM up to lengths of 100m over standard network architecture.
The IP200UHD-RX can be powered via PoE from the Network switch or locally should the switch not support PoE.
With multiple configuration options available the Multicast solution is ideal for both commercial and residential installations.

Key Features:

  • Advanced UHD video over 1GB Network
  • Virtually unlimited system size
  • Extends HDMI up to a distance of 100m over a single CAT cable
  • Video up-scaling and down-scaling
  • Supports up to 4K 30Hz UHD video output
  • Supports all known HDMI audio formats including DolbyTrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission
  • Advanced signal management for independent routing ofIR, RS-232, USB/KVM, audio and video
  • PoE (Power over Ethernet) to power Blustream productsfrom PoE switch
  • HDCP2.2 compliant with advanced EDID management
  • Analogue L/R audio breakout
  • LAN loop-out for one-to-many extender mode
  • Local 24-56V power supply (should Ethernet switch notsupport PoE) - sold separately
  • Features 4 operational modes:
    • Matrix distribution (requires 1Gb network switch)
    • Video wall (requires 1Gb network switch)
    • One-to-one HDMI extender (No network switch required)
    • One-to-many HDMI extender (No network switch required)

Specifications:

  • Video Input Connectors: 1x LAN RJ45 connector,
  • Video Output Connectors: 1x HDMI Type A, female
  • Audio Output Connectors: 2x RCA L/R Analogue audio
  • Ethernet port: 1x LAN RJ45 connector (video extension)
  • RS-232 Serial port: 1x 3-Pin Phoenix connector
  • USB/KVM Port: 2x USB - Type A
  • IR Input ports: 1x 3.5mm stereo jack
  • IR Output ports: 1x 3.5mm mono jack
  • Firmware Update (MCU): 1x Micro-USB
  • Mounting kit included
  • Dimensions (W x D x H ): 190mm x 114mm x 25mm
  • Shipping Weight: 0.8kg
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature : -4°F to 140°F (-20°C to 60°C)

Box Contents:

  • 1x IP200UHD-RX
  • 1x (IRR) IR Receiver
  • 1x (IR1) IR Transmitter
  • 1x Serial 3-pin phoenix connector
  • 1x Mounting kit

GTIN: 9340242002891
