Our MFP112 is a multi-format presentation switcher within-built video scaling, audio embedding, de-embedding, EDID management and HDBaseTâ„¢ input and output.
The MFP112 works in 2 modes, first as a 11 input dual output switcher, alternatively each output can work independently with HDMI output 1 routing the 1x HDBaseTâ„¢ + 4x HDMI inputs only and output 2 switching all 11 video + audio inputs.
With control of the switcher using the front-panel push buttons, IR remote control or RS-232 interface it is an ideal solution for commercial installations.

Features:

  • Switcher can function in 2 modes:
    • Splitter mode - Both HDMI output 1 & HDBaseTâ„¢ output 2 display the same selected input.
    • Matrix Switcher mode - HDMI inputs are independently switchable to HDMI output 1 & HDBaseTâ„¢ output 2. HDMI output 1 has access to HDBaseTâ„¢ input + HDMI inputs 1-4 ONLY (HDMI signal pass-through including 4K resolution), whilst HDBaseTâ„¢output 2 has access to all HDMI, HDBaseTâ„¢ and analogue video inputs with associated audio.
  • HDBaseTâ„¢ output (output 2) for distribution of video sources up to 100m (4K up to 70m) with bi-directional IR, RS-232, LAN serving and EDID management.
  • HDBaseTâ„¢ input for integration of remote HDMI sources up to 100m distance (4K up to 70m) with bi-directional IR and LAN serving
  • Built-in video scaling, both up-scaling (maximum of 1080p) and down-scaling capabilities (including 4K to lower resolutions).
  • Video inputs support all industry standard video resolutions including VGA-WUXGA and 480i-4K.
  • Scaled video output resolutions include 720p, 1080P, 1280x1024, 1024x768, 1360x768, 1440,900, 1680x1050
  • Audio embedding - independent analogue L/R audio inputcan be embedded to HDMI/HDBaseTâ„¢ outputs + analogue L/R audio and Coaxial digital outputs concurrently (feature available on HDMI/HDBaseTâ„¢ outputs 1+2 in Splitter mode and HDBaseTâ„¢ output 2 only in Matrix Switcher mode).
  • HDMI audio breakout to analogue L/R audio and Coaxial digital outputs concurrently (linked to output 2 when in Matrix Switcher mode)
  • Volume control of HDMI, line-level analogue L/R audio and Coaxial digital outputs
  • PoH to compatible Blustream Transmitters & Receivers (local power required when using HEX100ARC-RX)
  • Supports all known HDMI audio formats on HDMI pass-through, including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master audio transmission

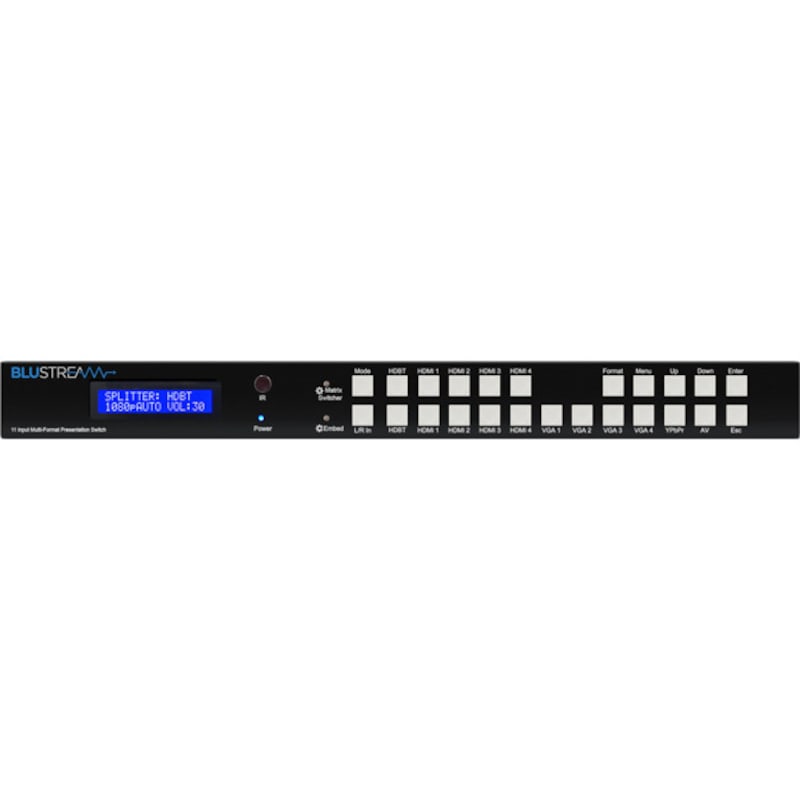

  • Front panel display for status feedback
  • Control via front panel, IR, RS-232 and TCP/IP
  • 3rd Party drivers available for all major home controlbrands
  • Advanced EDID management
  • HDCP compliant

Specifications:

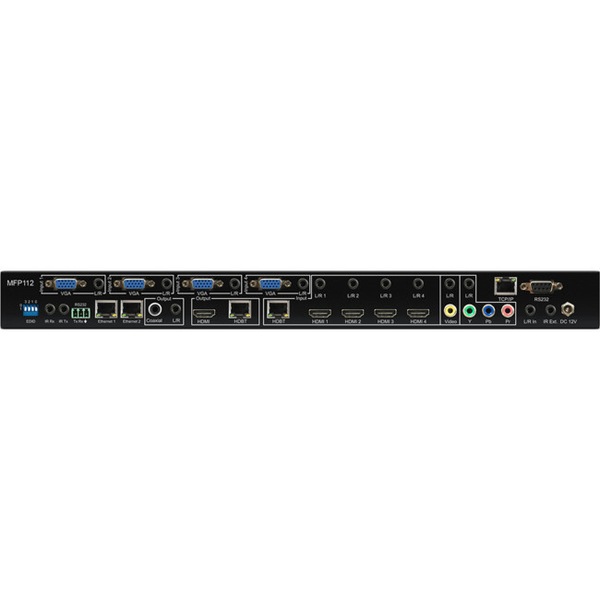

  • Video Input Connectors: 4x HDMI Type A, 1x HDBaseTâ„¢ RJ45 connector, 4x VGA, 1x Composite, 1x Component (YPbPr)
  • Video Output Connectors: 1x HDMI Type A, 1x HDBaseTâ„¢ RJ45 connector
  • Audio Input Connectors: 11x Analogue audio 3.5mm stereo jack
  • Audio Output Connectors: 1x Analogue audio 3.5mm stereo jack, 1x SPDIF Coaxial digital
  • RS-232 serial port: DB-9 connector (Matrix control), 1x 3-pin Phoenix connector for RS232 pass-through
  • IR Input ports: 2x 3.5mm stereo jack
  • IR Output ports: 2x 3.5mm mono jack
  • Casing Dimensions (W x H x D): 438mm x 45mm x 225mm, without feet
  • Dimensions Including Connections (W x H x D): 438mm x 45mm x 235mm
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature: -4°F to 140°F (-20°C to 60°C)
  • Power Supply: 12V/5A DC

Box Contents:

  • 1 x MFP112
  • 1 x 12V/5A DC power supply
  • 1 x Remote control
  • 4 x IR receiver
  • 3 x IR transmitters
  • 1 x IR control cable - 3.5mm-3.5mm cable
  • 1 x Serial cable - 9-pin RS232 to 3-pin phoenix connector
  • 1 x Mounting kit
  • 1 x User manual

Optional Components( Sold Seperately ):

  • 1 x HDBaseTâ„¢ 100m transmitter (HDBaseTâ„¢ source input)
  • 1 x HDBaseTâ„¢ 100m receiver (HDBaseTâ„¢ output)
