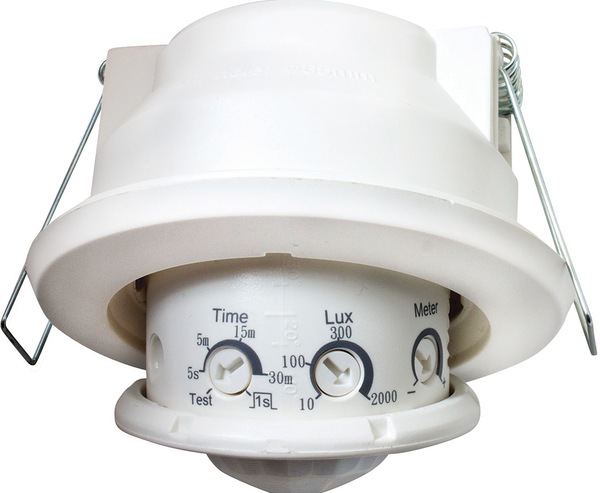

CABAC CPD-360 Ceiling mount 360deg Presence Detector to Control Lighting Devices

Image 1
$149.90

Collect 149 Everyday Rewards points

Log in to MyDeal to link your card
Free Shipping
Sold & shipped by Bourne Superstore
Secure ways to pay at checkout

Designed as a single load for controlling lighting devices, the CPD-360 is a high-performance relay for all types of lighting fixtures. The omni-directional quad element detector is integrated with the unique lens to provide "no dead spot" zones and superior sensitivity in its 360-degree detection coverage. The device features down light construction to enable quick and easy mounting in various ceiling board thicknesses.

  • The adjustable sensor head is capable of 30 degree downward and 350 degrees clockwise/anticlockwise rotation, allowing the detection angle to be set as required.
  • The detection beams are well distributed and concentrated over the detection coverage, allowing the device to detect subtle movements.
  • A built-in red LED works as an indicator for simplifying test operation.
  • RJ-12 plug and socket make the sensor and power box quick and easy to install.
  • The hinged top covers of the power box are convenient for quick connection.

Features

  • 360-degree ceiling mount presence detector designed for controlling lighting devices, includes unique flush mount feature for easy installation
  • LED 400W, AC Halogen 1000W, Incandescent 2000W, Fluorescent 900VA
  • Manual override and auto-off timer settings from 5 seconds to 30 minutes
  • Lux adjustment from 10 to 2000 lux
  • 10 metre detection range and unique lens tilt feature

Operating Specifications and Technical Data

  • Auto Off Timer Adjustment: TIME1 (L): Adjust from 5 seconds to 30 minutes and test & TIME2 (D1-D2): Adjust from 10 seconds to 60 minutes
  • LUX Adjustment: Adjustable from 10Lux to 2000 Lux
  • Detection Range: Diameter 10m at 2.5 Ā– 3m
  • Operating Temperature: 0 to +45 degrees Celsius
  • Environmental Protection: IP40 (Sensor), IP20 (Power box)
  • Circuit diagram and dimensions available, refer to the product Datasheet

Technnical Specifications

  • Detection Range (m): 10
  • Number of Channels: 1
  • Mounting Type: Ceiling
  • Surface Mount: No
  • Ceiling Mount: No
  • Lamp Compatibility: Incandescent, Halogen, Fluoroscent
Electrical Data
  • Rated Voltage: 230 +/- 10% 50/60H
  • Load I (L) for Lighting:
  • 10 A (at 230 V AC, cos = 1), 3 AX (at 230 V AC, cos = 0.3)
  • Incandescent Lamp: max. 2000W
  • AC Halogen Lamp: max. 1000W
  • LV Halogen Lamp: max. 1000VA
  • Fluorescent Lamp: max. 900VA/100uF (compensated)
  • Fluorescent Lamp: max. 1000VA (uncompensated)

GTIN: 9318674251804
