Brand New
Features

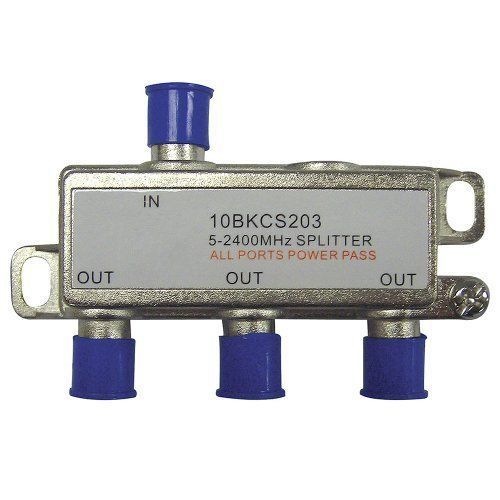

3 Way F Type Splitter
Allows 3 TV's to share the same antenna
Nickel plated zinc die-cast housing
Frequency response 5-2300 Mhz
3 Way F Type Splitter Features
• Foxtel Approved
• Nickel plated zinc die-cast housing
• Tongue groove housing design provides high RFI shielding for 120Db
• Frequency response of 5-2300 MHz
• High precision machine threaded F-ports
• Power pass 12V DC, 500mA all ports
• Ideally for special channels and return channels
• Impedance: 75Ohm
| Item | 05FSPLT2 | 05FSPLT3 | 5FSPLT4 | 05FSPLT6 | 05FSPLT8 |
| Loss 5-40 MHz (dB) | 4.5 | 6.9 | 8 | 12.5 | 13.5 |
| Loss 40-1000 MHz (dB) | 4.5 | 7 | 8.5 | 13.6 | 13.6 |
| Loss 1000-1750 MHz (dB) | 5.5 | 8.5 | 9.8 | 14.7 | 16 |
| Loss 1750-2300 MHz (dB) | 7.2 | 11 | 12.6 | 16.5 | 18 |
| Isolation 5-40 MHz (dB) | 14 | 18 | 20 | 20 | 20 |
| Isolation 40-1000 MHz (dB) | 20 | 21 | 22 | 22 | 20 |
| Isolation 1000-2300 MHz (dB) | 20 | 22 | 21 | 21 | 22 |
| Return Loss 5-40 MHz (dB) | 14 | 12 | 12 | 9 | 9 |
| Return Loss 40-1000 MHz (dB) | 13 | 16 | 14 | 13 | 13 |
| Return Loss 1000-2050 MHz (dB) | 15 | 14 | 13 | 13 | 13 |
| Return Loss 2050-2300 MHz (dB) | 12 | 12 | 12 | 12 | 12 |
12 month warranty
Estimated Delivery Time Frame: 2 - 7 business days
