STEP1
Remove shipping plugs from Quad pump ports.Some water from factory testing may spill out
STEP 2

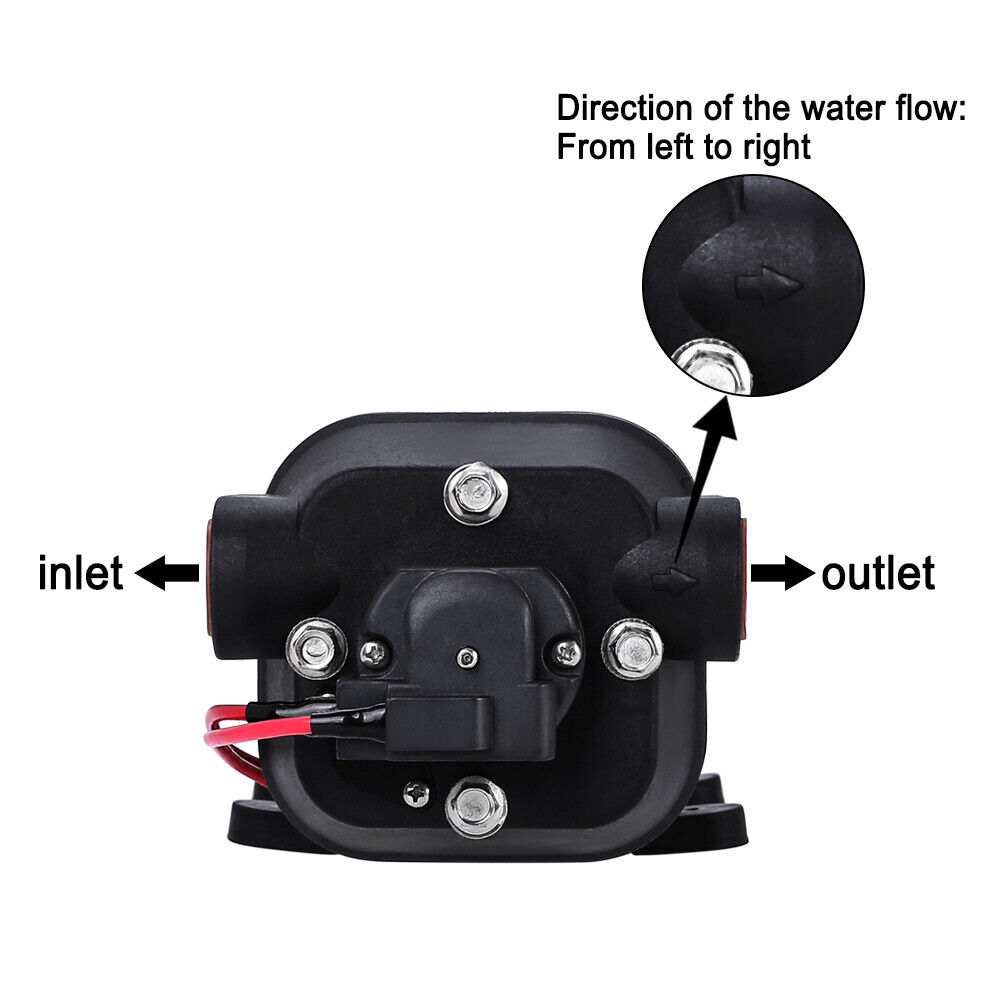

Install inlet A and discharge B port connectors. Firmly push slide clips C forward to lock port connectors in place.
STEP 3
Slide rubber mounts fully into 4 mounting tracks.
STEP 4
Mount pump vertically,with pump head down or horizon tally in an accessible location.Ilf mounting vertically,motor up, attach motor maunts first, then pump head mounts while supporting weight of pump
STEP 5
Use 3/4"1.D. flexible hose(preferably braided of reinfo ced). Use hose clamps on the slip-on barb hose con nectors.
STEP 6
Install a 3/4" in line strainer #01610-000 in accessible ocation between sea cock and pump inlet This strainer or equivalentis required for pump warranty to be valid.
Self-ppriming
Soft, noise absorbing mounts
Corrosion resistant materials
With thermal overload protection
Self-priming up to 6 ft suction lif
Pump able to run dry without damage
Removable port to hose connectors
SPECIFICATIONS
Volts: 12V
??MP: 6A
Flow Rate: 17L/min
Max Pressure: 40PSI
