The KGE-1254D is designed to be surface mounted in in-wall composite/ component video, and stereo audio/digital audio with IR control applications.
Distributes your AV signals via economical CAT5 cable.
Transmitter:
Component video inputs (Y/ Pb/ Pr)
Coaxial digital audio input
Composite video input
Audio Left & Right inputs
2x 3.5mm inputs for IR emitters
Interface:
Video: 1x RCA jack
Audio: 2x RCA jacks for Left and Right Audio
UTP: CAT5e
Impedance:
Video: 75 Ω unbalanced
Audio: 600 Ω unbalanced
UTP: 100 Ω balanced
Bandwidth:
Video: DC~12 MHz
Audio: 50 Hz~15 kHz
Distance:
Audio/Color Video: Category 5e UTP cable up to 300 meters
Receiver:
Component video inputs (Y/ Pb/ Pr)
Coaxial digital audio input
Composite video input
Audio Left & Right inputs
3.5mm input for IR receiver
Power input
Interface:
Video: 3x RCA (Y/Pb/Pr) female connectors
Digital Audio: 1x RCA female connector
UTP: CAT5e
Impedance:
Video: 75 Ω unbalanced
Digital Audio: 75 Ω unbalanced
UTP: 100 Ω balanced
Bandwidth:
Video: DC~60 MHz
Audio: DC~25 MHz
Distance: Over Category 5e/6 UTP cable:
720p video, up to 150 meters (total length, device-to-device)
1080i video, up to 150 meters (total length, device-to-device)
Digital Audio: up to 175 meters (total length, device-to-device)

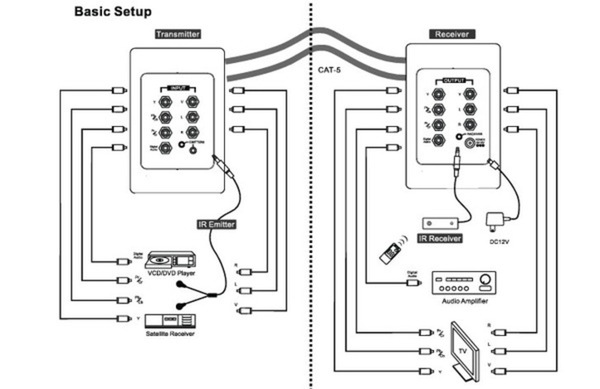

Connection between transmitter and receiver is established using RJ45 CAT5 patch cable.
IR receiver stick:
Works in areas with compact fluorescent lighting
lue IR confirmation LED
Wideband IR receives IR from many types of remotes
Self-adhesive tape for quick and easy fixing on any flat surface
3 meters cable with 3.5mm stereo mini-plug
Receive frequency range: 34 kHz to 40 kHz
Transmit frequencies: 38 kHz
Range On Axis – 55ft to 80 ft (16.8m – 24.4m)
30° Off-Axis – 30ft to 55ft (9.1-16.8m)
Power:12VDC, 31mA max
Dimensions: 54L x 14W x 13H mm
Weight: 23g
NOTE: This IR extender is not compatible with the Foxtel iQ4 Bluetooth Remote.
Delivery Distance:
Audio 300 meters
Component Video: 100Meters (max)
Composite Video: 300Meters (max
Dimension: 114mm x 70mm x 42mm (including blank wall plate)
Power supply: 12VDC, 200mA

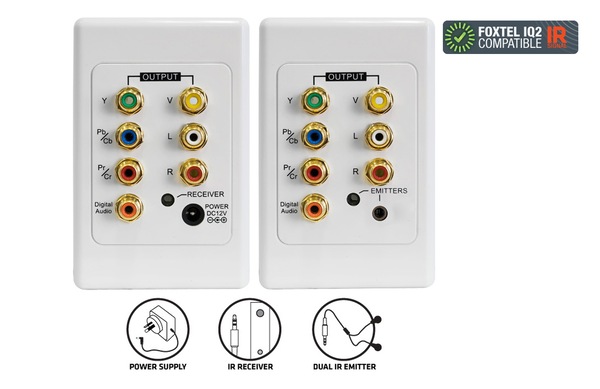

Kit includes:
Transmitter and Receiver wall plates
Dual IR emitter
IR receiver stick
12V DC 200mA power supply
This item comes with a 12 month Warranty
Â
MPN: KGE-1254D
