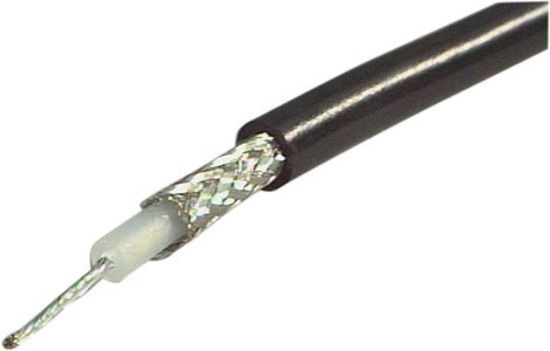

Coaxial Cable RG58C/U 50 Ohm MIL-C-17 Standard W2230 Roll Size: 100m

Features
- Insulated by sign pressure, gas injected foamed dielectric
- Provide supper low attenuation loss in wider frequency range
- Maintain low loss and stable VSWR in high frequency against aging
- Suitable for Radio Transmission, Amateur Radio and Base Radio Antenna Station

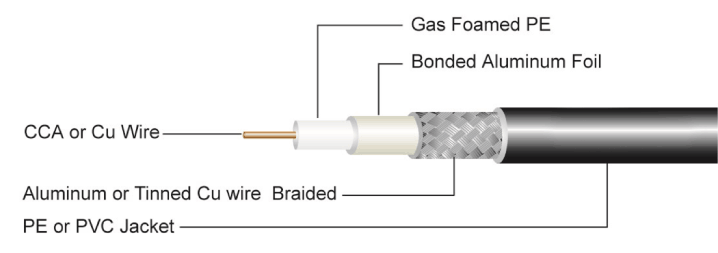

Cross Section

• Outside diameter: 4.95
• Shielding size: 16/7/0.127
• Conductor Area: 0.48mm2
• Conductor: 19/0.18mm Stranded Tinned Copper
• Insulation Nominal: 2.95mm Solid Polythylene
• Loss @ 100MHz: 17.4dB/100m
• Jacket Nominal: 4.95mm Black PVC
• Shield Material & Coverage: 95% Tinned Copper Braid
• Nom Imp Ohm: 50
• Nom Vel Prop: 67%
• Nominal Capacitance PF/m: 101
• Nominal Attenuation
• - 50 : 10.9
• - 100 : 16.4
• - 200 : 24.0
• - 400 : 37.9
• - 700 : 55.6
• - 900 : 65.8
• - 1000 : 70.7
