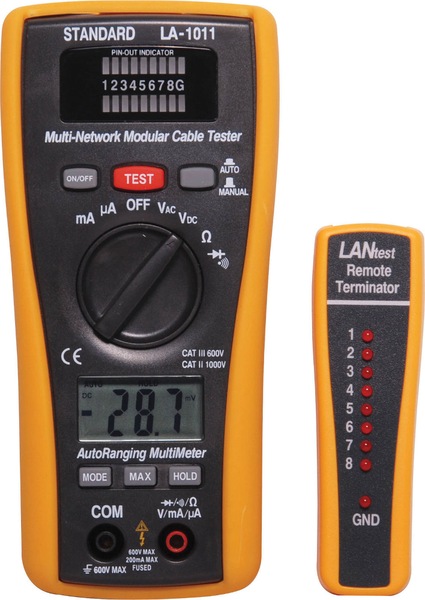

STANDARD Combination Auto Ranging DMM & LAN Cable Tester

Combination DMM & LAN Cable Tester

2 in 1 LAN tester & multimeter is a innovative that allows the user easy to measure DC/AC Voltage/Current, Resistance , Continuity, diode and verify the cable continuity, open short, cross-connect. The included remote terminator allows the user to test installedcable either at a wall jack or a patch panel adding up mto value and convenience. Proper use and care of thisa meter will provide years of reliable service.

Features:

• 2 in 1 LAN tester & multimeter
• Measures DC/AC voltag, DC/AC Current, Resistance, Continuity, diode and LAN tester
• 3-1/2 digit (200 count) LCD display for multimeter functions
• LED displays the actual pin configuration of 10BASE-T AND 10BASE-02 Thin Ethernet, FJ45/RJ11 modular, 258A, tia-568a/568b and Token ring cables
• Double molded housing
• CAT111 600V; CAT11 1000V
• Provides easy to read continuityand fault status display
• Checks for continuity, open wire, ground wire, shorted pair and crossed pair faults
• Allows for remote testing of installed cables from wall jack or patch panel
• Auto or manual scanning for LAN tester n
• Autoranging with auto power off for multimeter functions

Specifications
DC voltage: 200mV, 2V, 20V, 200V, 600V
AC voltage:2V, 20V, 200V, 600V
DC current: 200µA, 2000µA, 20mA, 200mA
AC current: 200µA, 2000µA, 20mA, 200mA
Resistance: 200, 2k, 20k, 200k, 2M, 20M Ohm
Continuity: < 150 Ohm, Audible tone
Diode test: 1mA max
Display: 3.5 digit LCD, 2000 count, backlit
Dimensions: ˜ 75W x 44D x 162H mm (excluding remote terminator)

Warranty

Shop with confidence Item comes with 2year warranty
