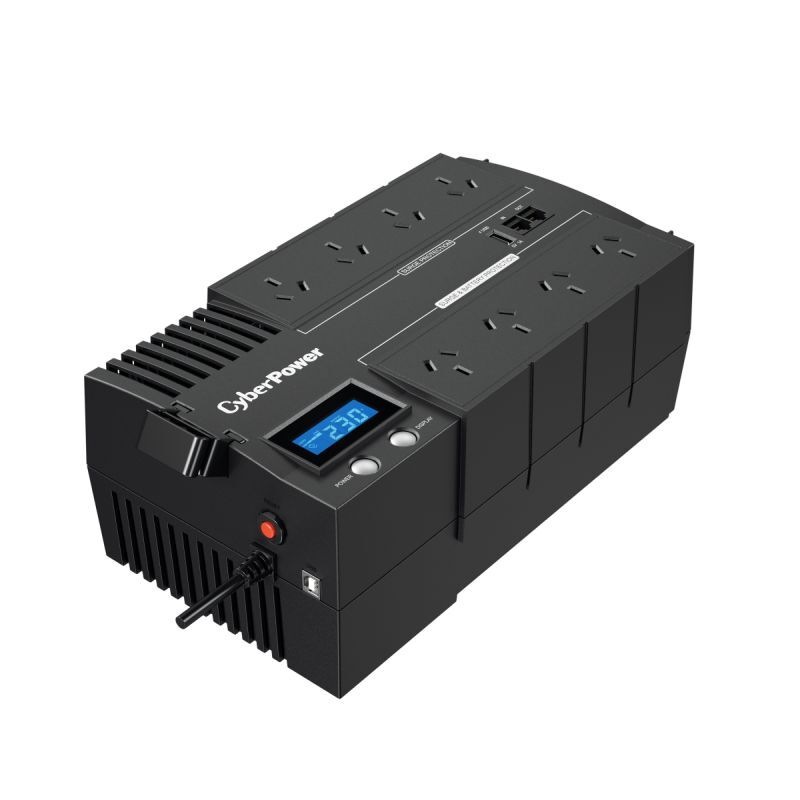

Perfect for home and offce applications, the BRICs LCD Series is a compact UPS that adopts line-interactive topology with Automatic Voltage Regulation (AVR) function to offer stabilised AC power output.
The products' multifunction LCD readout clearly displays information on power and battery conditions. This series also features a cable collector and wall-mount design, allowing you to maintain a tidy and flexible workspace.
Features:
Line-interactive UPS Topology
Energy Saving Technology
Simulated Sine Wave Output
Automatic Voltage Regulation (AVR)
USB Charging Port
Surge and Spike Protection
Phone/Fax/Modem/DSL/Network Protection
LCD Status Display
User-replaceable Batteries
PowerPanel® Management Software
Wall Mount Installation

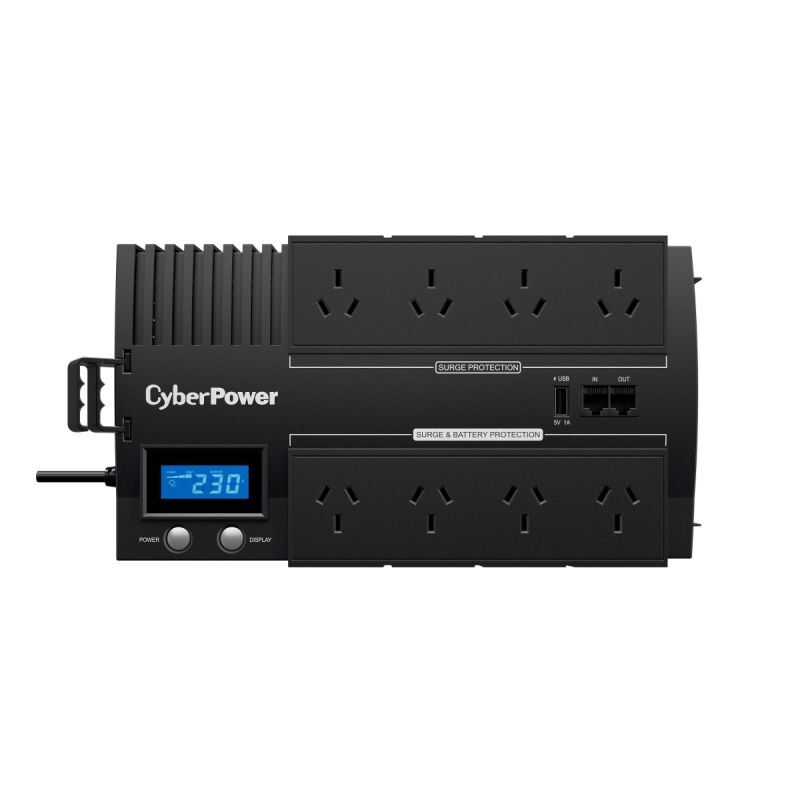

Products Callouts:
Power-On Indicator
Power On/O Switch
LCD Display Panel
Function Button
Battery Backup & Surge Protected Outlets
Surge Protected Outlets
Communication Protection Ports RJ11/RJ45
USB Charging Port
Cable Collector
Input Circuit Breaker
AC Input Power Cord
USB Port
Includes:
1x CP BRIC-LCD 700VA UPS
General
UPS Topology: Line-interactive
Energy Saving Technology: GreenPower UPS™ Bypass Technology
Input
Nominal Input Voltage (Vac): 230 ± 10%
Input Voltage Range (Vac): 170 ~ 290
Input Frequency (Hz): 50 ± 5, 60 ± 5
Input Frequency Detection: Auto-sensing
Rated Input Current (A): 3.18
Input Connector Type: AU
Output
Capacity (VA): 700
Capacity (Watts): 420
On Battery Waveform: Simulated Sine Wave
On Battery Voltage(s) (Vac): 230 ± 10%
On Battery Frequency (Hz): 50 ± 1%, 60 ± 1%
Automatic Voltage Regulation (AVR): Single Boost, Single Buck
Overload Protection: Circuit Breaker
Outlet(s) - Total: 8
Outlet Type: AU x 8
Outlet(s) - Battery & Surge Protected: 4
Outlet(s) - Surge-Only Protected: 4
USB Charging Port(s): 1
USB Charging Current (A): 1
Typical Transfer Time (ms): 4
Battery
Runtime at Half Load (min): 9
Runtime at Full Load (min): 1.5
Typical Recharge Time (Hours): 8
User-replaceable: Yes
Battery Type: Sealed Lead-acid
Replacement Battery Pack: RBP0083
RBP Quantity (pcs): 1
Surge Protection & Filtering
Surge Suppression (Joules): 150
EMI/RFI Filtration: Yes
Phone/Network Protection RJ11/RJ45 (Combo): 1-in, 1-out
Management & Communications
LCD Panel: Yes
LED Indicators: Power On, Line Mode, Battery Mode, Low Battery
HID Compliant USB Port(s): 1
Audible Alarms: Battery Mode, Low Battery, Overload, UPS Fault
Power Management Software: PowerPanel® Personal (Recommended)
Physical
Form Factor: Desktop
Physical Size - UPS Module
Dimensions (WxHxD) (mm.): 166 x 118 x 288
Weight (kg.): 5.3
Environmental
Operating Temperature (°C): 0 ~ 40
Operating Relative Humidity (Non-condensing) (%): 0 ~ 90
Online Thermal Dissipation (BTU/hr): 71
Certifications
Certifications: CE, RCM
RoHS: Yes
This item comes with a 2-year warranty.
