CyberPower LCD Display Surge Protected 600VA Tower UPS for Office/Data Center
,gravity=Center,allowExpansion)
,gravity=Center,allowExpansion)
Collect 659 Everyday Rewards points
Collect 659 Everyday Rewards points
Designed for office and server room applications, the Office Rackmount Series is a reliable UPS that adopts line-interactive topology with Automatic Voltage Regulation (AVR) function to offer stabilised AC power output.
It features simulated sine wave output and hot-swappable battery packs for simple maintenance. The power management software can also easily control and monitor the UPS system.
Features:
Line-interactive UPS Topology
Energy Saving Technology
Automatic Voltage Regulation (AVR)
Hot-swappable Batteries
Surge and Spike Protection
Network Protection
LCD Status Display
Overload Protection
SNMP/HTTP Remote Management Capability (Optional)
PowerPanel® Management Software
Applications:
SOHO Office
Office
Back Office
Server Room
Supermarket
Factory
Airport
Train Station

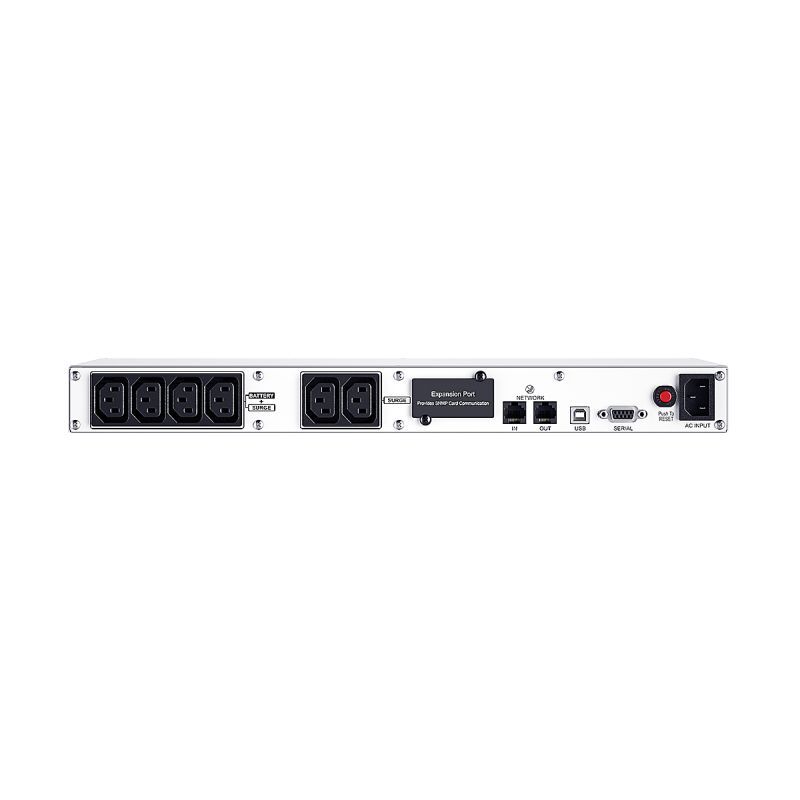

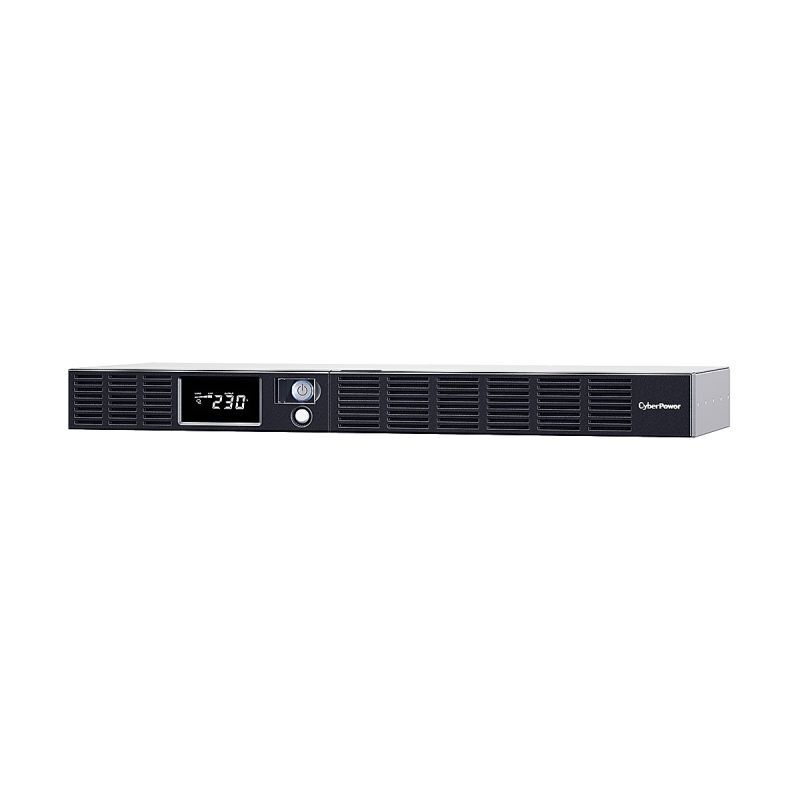

Product Callouts:
Power On Indicator
Power On/Off Switch
LCD Display Panel
Function Button(s)
Battery Backup & Surge Protected Outlets
Surge Protected Outlets
Communication Protection Ports RJ45
Input Circuit Breaker
AC Inlet
Serial Port
USB Port
SNMP/HTTP Network Slot
Includes:
1x CP Smart App Rack LCD 600VA
General
UPS Topology: Line-interactive
Energy Saving Technology: GreenPower UPS™ Bypass Technology
Input
Nominal Input Voltage (Vac): 230
Input Voltage Range (Vac): 165 ~ 271
Input Frequency (Hz): 50 ± 3, 60 ± 3
Input Frequency Detection: Auto-sensing
Rated Input Current (A): 10
Input Connector Type: IEC C14
Output
Capacity (VA): 600
Capacity (Watts): 360
On Battery Waveform: Simulated Sine Wave
On Battery Voltage(s) (Vac): 230 ± 10%
On Battery Frequency (Hz): 50 ± 1%, 60 ± 1%
Automatic Voltage Regulation (AVR): Single Boost
Overload Protection: Internal Current Limiting, Circuit Breaker
Outlet(s) - Total: 6
Outlet Type: IEC C13 x 6
Outlet(s) - Battery & Surge Protected: 4
Outlet(s) - Surge-Only Protected: 2
Typical Transfer Time (ms): 4
Battery
Runtime at Half Load (min): 13
Runtime at Full Load (min): 4
Typical Recharge Time (Hours): 8
User Replaceable: Yes
Hot-Swappable: Yes
Battery Type: Sealed Lead-acid
Replacement Battery Pack: RBP0019
RBP Quantity (pcs): 1
Surge Protection & Filtering
Surge Suppression (Joules): 405
EMI/RFI Filtration: Yes
Network Protection RJ45: 1-in, 1-out
Management & Communications
LCD Panel: Yes
HID Compliant USB Port(s): 1
Serial Port: Dry Contact
Power Management Software: PowerPanel® Business (Recommended)
SNMP/HTTP Remote Monitoring: Yes - with optional RMCARD205
Physical
Form Factor: Rack
Physical Size - UPS Module
Dimensions (WxHxD) (mm.): 433 x 44 x 235
Weight (kg.): 7.8
Installed Rack Height (U): 1
Environmental
Operating Temperature (°C): 0 ~ 40
Operating Relative Humidity (Non-condensing) (%): 0 ~ 95
Online Thermal Dissipation (BTU/hr): 20
Certifications
Certifications: CE, EAC, RCM
RoHS: Yes
This item comes with a 2-year warranty.
GTIN: 4712856274318
