DOSS Wireless Laser Door Entry Security Beam Alarm Buzzer for Shops 100m Range

Image 1
$175.90

Collect 175 Everyday Rewards points

Log in to MyDeal to link your card
Free Shipping
Sold & shipped by Bourne Superstore
Secure ways to pay at checkout

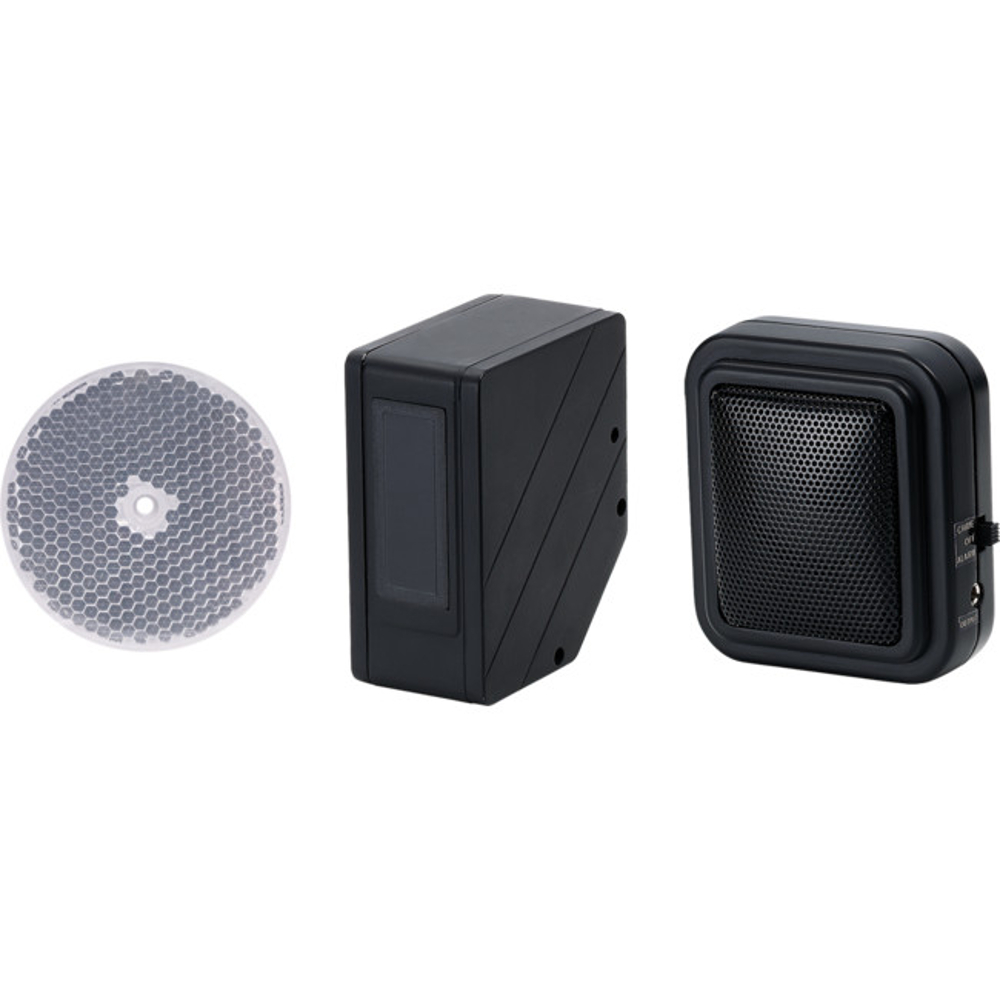

DEA7WL2 is a compact wireless entry alarm system which is easy to install indoor. It is designed for both residentialand commercial using such as garage door, shops, warehouse restaurants etc. to alert you to the entry of customers and visitors. The system consists of a send/receive unit which transmits an IR beam across the doorway onto a prismatic reflector mounted on the opposite side. The beam is reflected back to the receiver to complete the circuit. Whena person walks through the beam, the circuit is interrupted and this causes the alarm to sound an audible warning. The warning buzzer can be mounted in any suitable location.

FEATURES
  • For using as an entrance indicator

  • No wiring required between the sensor and speaker

  • Upto 100m wireless range

  • When tripped, the sensor wirelessly transmits to any programmed speaker

  • Speaker makes ""ding-dong"" or siren sound when beam is interrupted

  • Speaker volume can be adjusted or turned off

  • When in siren mode, sounding time is adjustable from 3~30 seconds

  • Connect additional speakers to the sensor wirelessly (one speaker included)

  • Each sensor can be paired with unlimited number of speakers

Specifications



Photoelectric Beam Sensor
Type

Infrared Receiver Modules for Remote Control Systems

Housing ABS
Radio Frequency 433.92 MHz
LED Emitting Element Infrared LED Indicator (Red)
Sensing Range 0.5 ~ 7 meters
Power Supply Switching mode power supply for sensor and speaker
Current Drain (mA) Standby (Beam Aligned properly): 3.7 mA/Beam Broken:14 mA
Power input wire DC Jack (f)5.5mm/2.1mm x (L)12cm
Wireless Door Announcer
Type Microprocessor based control unit
Housing ABS
Radio Frequency 433.92MHz
Wireless Coverage Range ≤100m (Open space)
Volume of Speaker 0 ~ Max (Adjustable)
Chime/Alarm Time 30 sec max. (Adjustable)
Power Supply (Input) AC / DC Adaptor (100-240VAC/50-60Hz)
Power input Jack DC Jack (f)5.5mm/2.1mm
Power Supply (Output) 12VDC/130 mA
Power output Jack Phone Jack (f)3.5mm
Temperature 0°C ~ 50°C
4 Digits Counter (Optional)
Type 4 Digits Counter (Number can be adjusted /-/Reset)
Housing ABS
Power Supply 12VDC/ 130mA (same power source as speaker)
Power input wire Phone Plug (f)3.5mm

Specifications:

12 month warranty

GTIN: 9328202020048

Estimated Delivery Time Frame:5-7 business days
