Doss 5.4in 4K HD CCTV IP Camera Tester Touch Screen Device Tool 183x110mm

The new T540 tester is designed for CCTV system installation and maintenance. The 5.4 inch IPS touch screen is the perfect size to have in your toolbox. It helps to set up the IP and analog coaxial cameras, HD, or Non-HD cameras, as well as other security equipment. With all the tools built-in to the unit, you can troubleshoot the network issues, cabling, and more.

  • The perfect tool for CCTV system installation and maintenance
  • 5.4" Full HD (1920x1080) IPS touchscreen interface
  • Supports more protocols than the majority of testers on the market
    • IP
    • TVI
    • CVI
    • AHD
    • SDI
    • ONVIF version 2.4 Profile S, Q, A, T(only H.265)
  • Built-in Wi-Fi
  • Easy to use GUI
  • Built-in 7.4V 3350mAh Li-ion Polymer battery
  • Support for the latest CCTV technologies including 4K cameras, H.265 compression, and more
  • Video transmission channel testing
  • ONVIF PTZ and analog PTZ control
  • TDR cable testing
  • UTP cable test
  • Cable scan and much more!
Connections and Ports

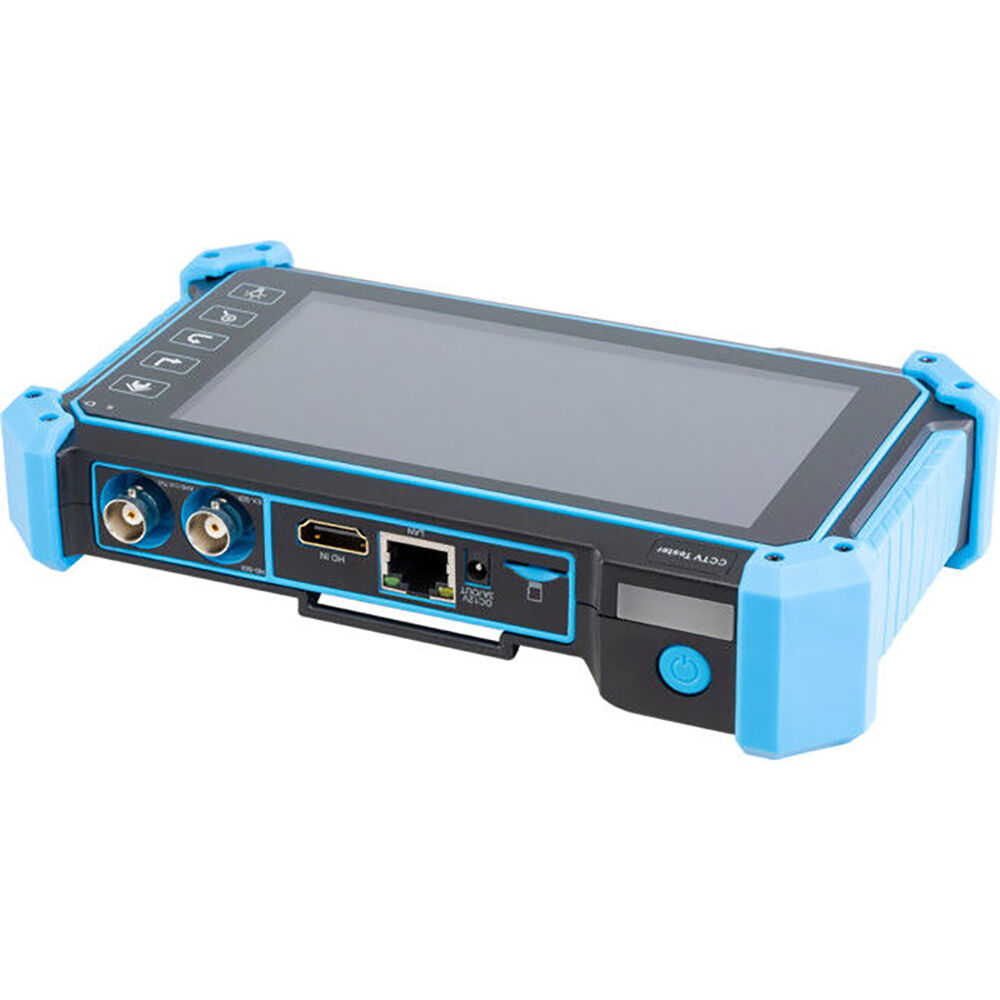

Top
  • HD-SDI, EX-SDI
  • LED Flashlight
  • AHD/CVI/TVI/CVBS in
  • HDMI in
  • 12V 3A DC output
  • RJ45 LAN port or POE output
  • Micro SD card slot (Micro SD card not included)

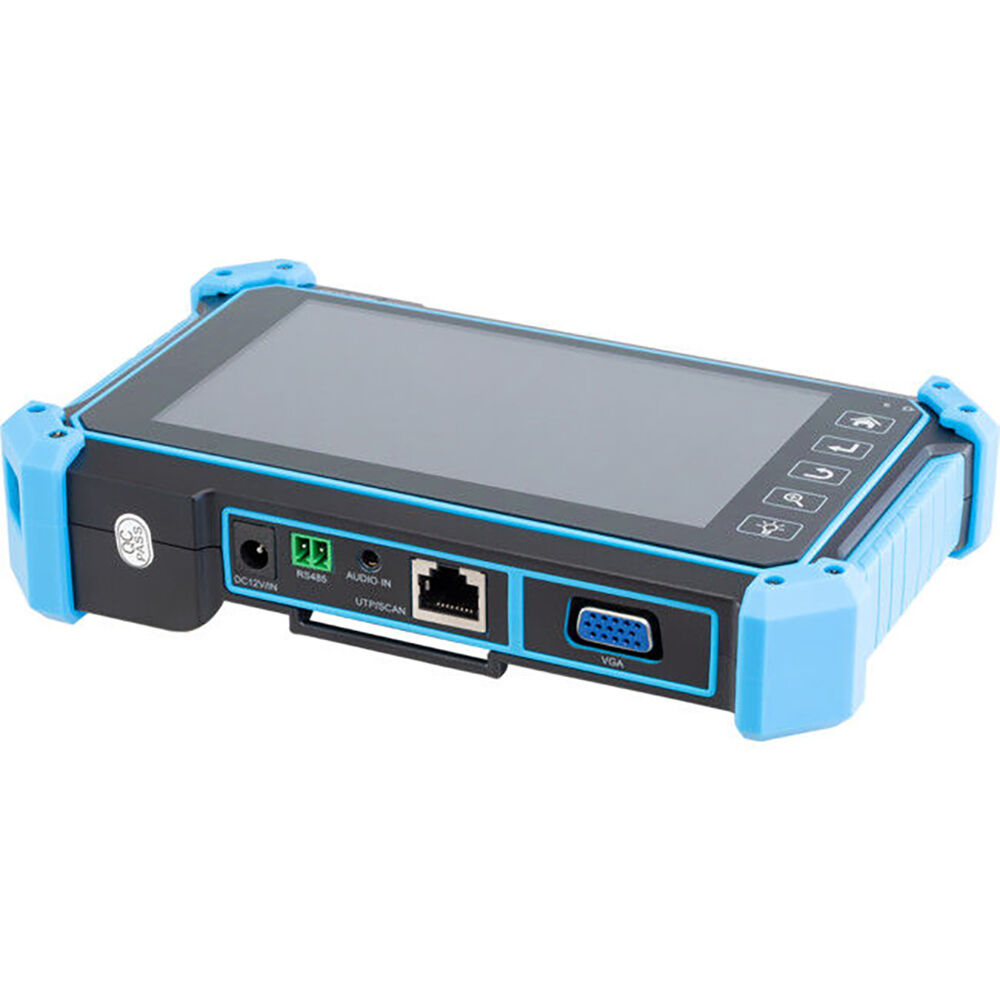

Bottom
  • 12V DC input
  • RS485
  • 3.5mm audio input
  • RJ45 - UTP/SCAN
  • VGA port
Features
Camera test
  • 5.4 inch IPS touch screen, 1920*1080 resolutions
  • H.265 & H .264 IP, 4K video display via mainstream
  • 8MP TVI test, 3840 x 2160P 12.5/15 FPS, 4xzoom, video record & playback, coaxial PTZ control &call OSD menu
  • 8MP AHD test, 3840x2160P 15 FPS, 4xzoom, video record & playback, coaxial PTZ & call OSD menu
  • 8MP CVI test, 3840 x 2160P 12.5/15FPS, 4xzoom, video record& playback, coaxial PTZ & call OSDmenu
  • 8MP EX-SDI test, 3840 x 2160P 25/30FPS,4xzoom, video record& playback, coaxial PTZ & call OSDmenu
  • HD-SDI test, 1920 x 1080P 25/30/50/60 FPS, 4xzoom, video record& playback, coaxial PTZ & call OSDmenu
  • 3G-SDI test, 1920 x 1080P 50/60 FPS, 4xzoom, video record& playback, coaxial PTZ & call OSD menu
  • Auto HD app, auto recognize HD coax camera type andresolution, support snapshot, video record& playback, coaxial PTZ & call OSD menu.
  • VGA input, up to 1920 x 1200P 60FPS, support snapshot, video record& playback.
  • HDMI Input, up to 4K 30FPS, support snapshot, videorecord& playback.
  • Rapid ONVIF, Auto log in and display image, create testing report
  • IPC test pro, auto-scan all network segments, auto-detect and display the PoE power. With the input username and password, quickly scan the camera image, batch activate HIKVISION, Dahua, and Uniview cameras. Easy access to ONVIF interface and test tools.
  • Support the AXIS camera test with AXIS tool APP.
  • Support Hikvision(HIK), Dahua(DH), Uniview(UNV), Huawei test tool.
  • Batch activate cameras, modify IP addresses and passwords, self-defined modify channel name.
  • Quickly change H.264 and H.265 videos.
  • Display IP and analog camera images at the same time.
  • CVBS camera test, PTZ controller
  • DC12V/3A power output, power camera from 12V DC.
  • Rapid video, quickly detect all network cameras andauto display.
  • Built-in Wi-Fi, display image from the wireless camera, create WIFI hotspot

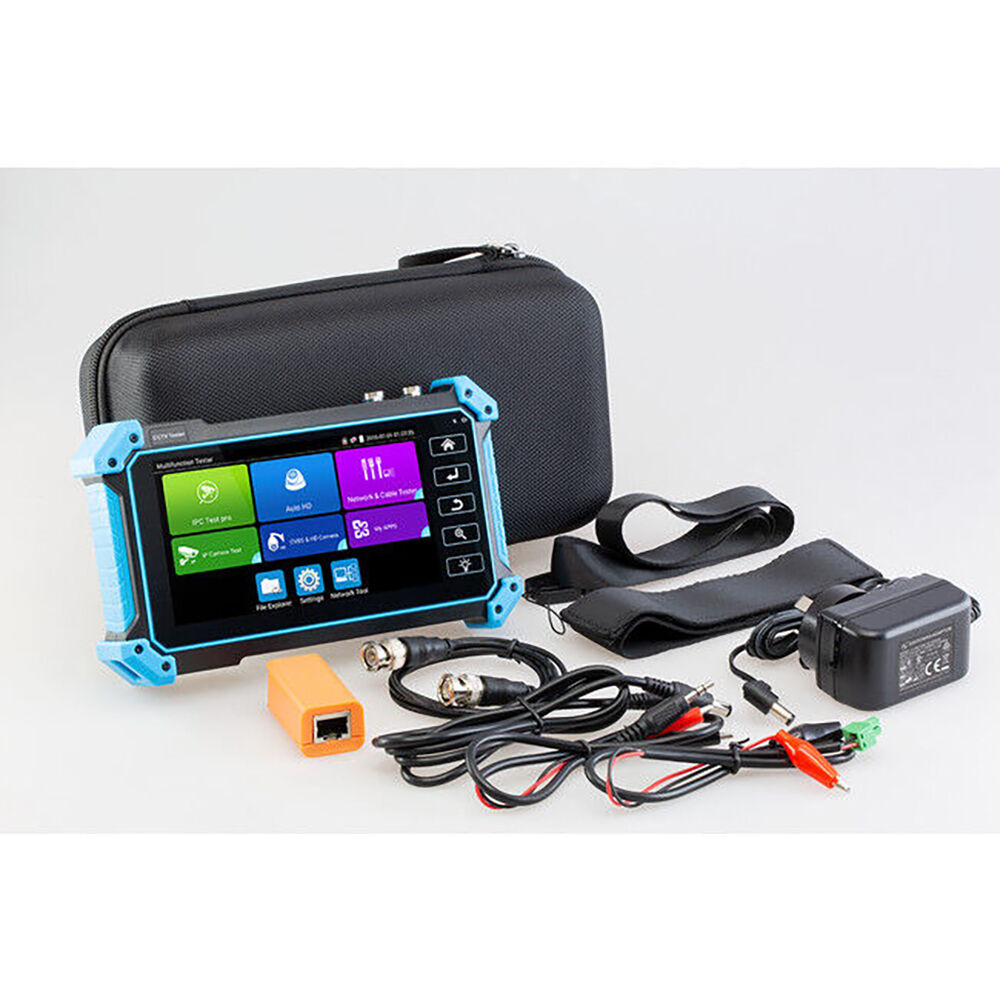

What is in the box?
  • T540 tester
  • Power Adaptor DC12V 1A
  • Network cable tester
  • BNC cable
  • RS485 cable
  • DC12V Power cable
  • Audio cable
  • Safety cord
  • Wrist belt
  • Carry case

Includes:
1 x Camera Tester
