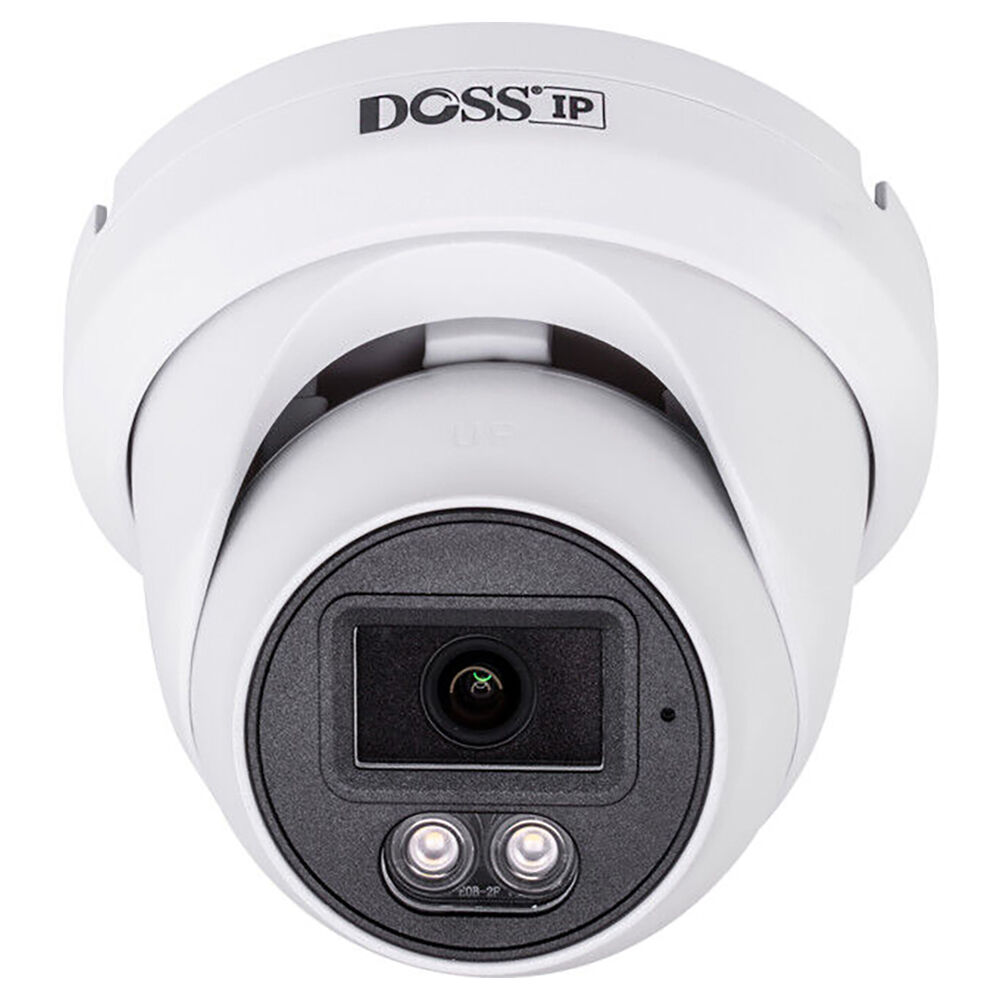

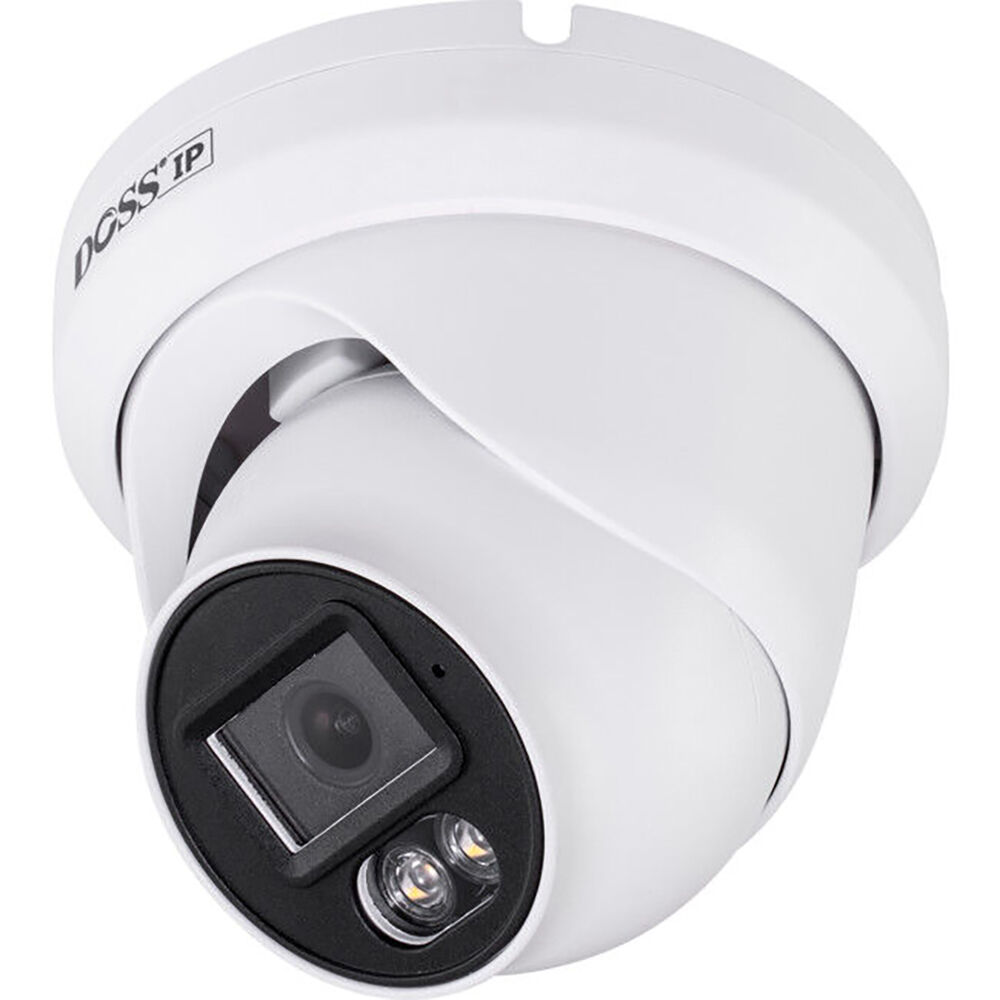

Doss 5MP IR20M IP66 Dome IP Camera Human Detection Surveillance CCTV White
Camera normally relies on the IR to have the night vision in Black and White in no light or low light condition, sometimes can have better video quality in colour but with the help of a good CMOS sensor. This built in dual-light feature offers a big difference on video quality during the night time, the camera lights up when it dectects the movement during the night, to have a real colour video. Watch the night view from the download section.
Note: The dual lights feature is enabled in default, can be disabled when login to the camera.
Camera | |
Sensor | 1/2.7" Megapixels CMOS |
Lens | 3.6mm |
Dual Lights | Warm light 25m; Infrared 25m |
D-WDR | D-WDR (off/low/middle/high) |
IR Led Control | Auto/Manual/Off |
DNR | Off/Low/Middle/High/Higher |
Defog | Off/Low/Middle/High |
Mirror | Off/ Horizontal Mirror/Vertical Mirror/180 degree flip |
Image Setting | Brightness, Contrast,Sharpness,Saturation, Chroma |
Humanoid Detection | |
Detection Quantity | ≤5 people humanoid |
Humanoid Size | Humanoid Pixel≥40X40 |
Detection Ratio | ≥99%(meet above requirement) |
Capture Speed | ≤1s |
Max Detection Frame | 5fps/s |
Fault Detection Ratio | ≤2% |
Detection Part | People with any posture including half body, head, hand, shoulder |
Track People | Support |
Detection Mode | Support static and dynamic humanoid detection |
Detection method | Support visible light image detection, and near infrared image detection |
Detection Area | Appointed area, default full-screen |
Upload Method | Upload it under private protocol |
Trigger Method | Video trigger |
Audio & Video Encoding | |
Video Encode Standard | H.265/H.264 |
Encoding Feature | Main code stream: 5MP 2560x1920@20fps, 4MP 2560x1440@25fps, 3MP 2304x1296@25fps, |
Sub-code stream:D1(720*576),VGA(640*360) | |
Video Code Rate | Fixed code rate,variable code rate (Main stream code:160Kbps-4000kbps) |
Video Type | Composited stream/video stream |
Network Function | |
Protocol | TCP/IP,UDP,HTTP,HTTPS,DHCP,RTSP,DDNS,NTP, PPPOE,UPNP,SMTP |
Connection Protocol | ONVIF, SLINK, HIK |
Preview Video Quantity | Up to 5 users web login |
Security Mode | Authorized user name and password, HTTPS with password, AES connecting with password, RTSP verification |
Motion Detection | Set detection area, can set multi-level sensitivity |
Privacy Mask Alarm | Support 1 area setting |
Privacy Mask | Support 4 area privacy mask |
Schedule Linkage | Capture, email |
Equipment Anomaly Inspection | Support network broken alarm, IP conflict alarm, illegal visiting alarm |
Character Overlay(OSD) | Title,time and date overlay, multi-line OSD, OSD color is optional |
Port | |
Network Port | RJ45 10M/100M network self-adjustable |
General | |

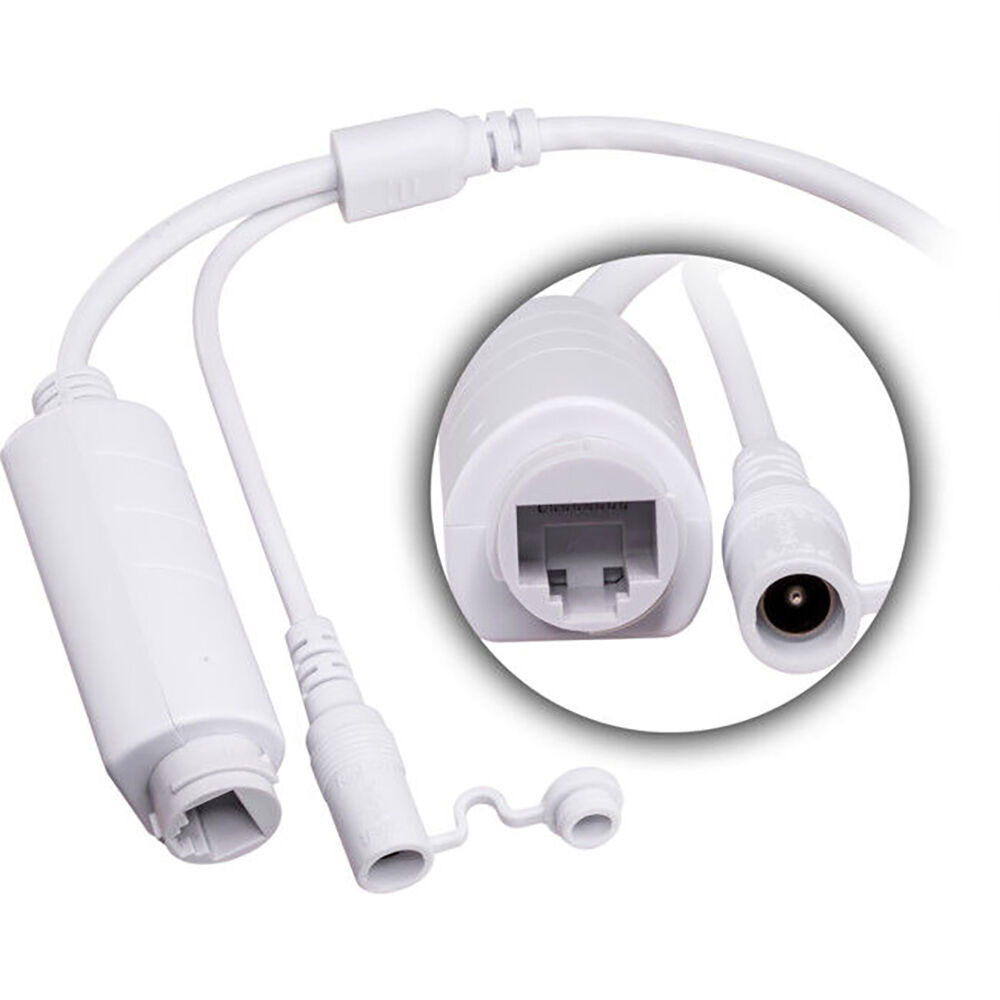

Power Supply | DC12V /POE Option |
Protection | IP66 |

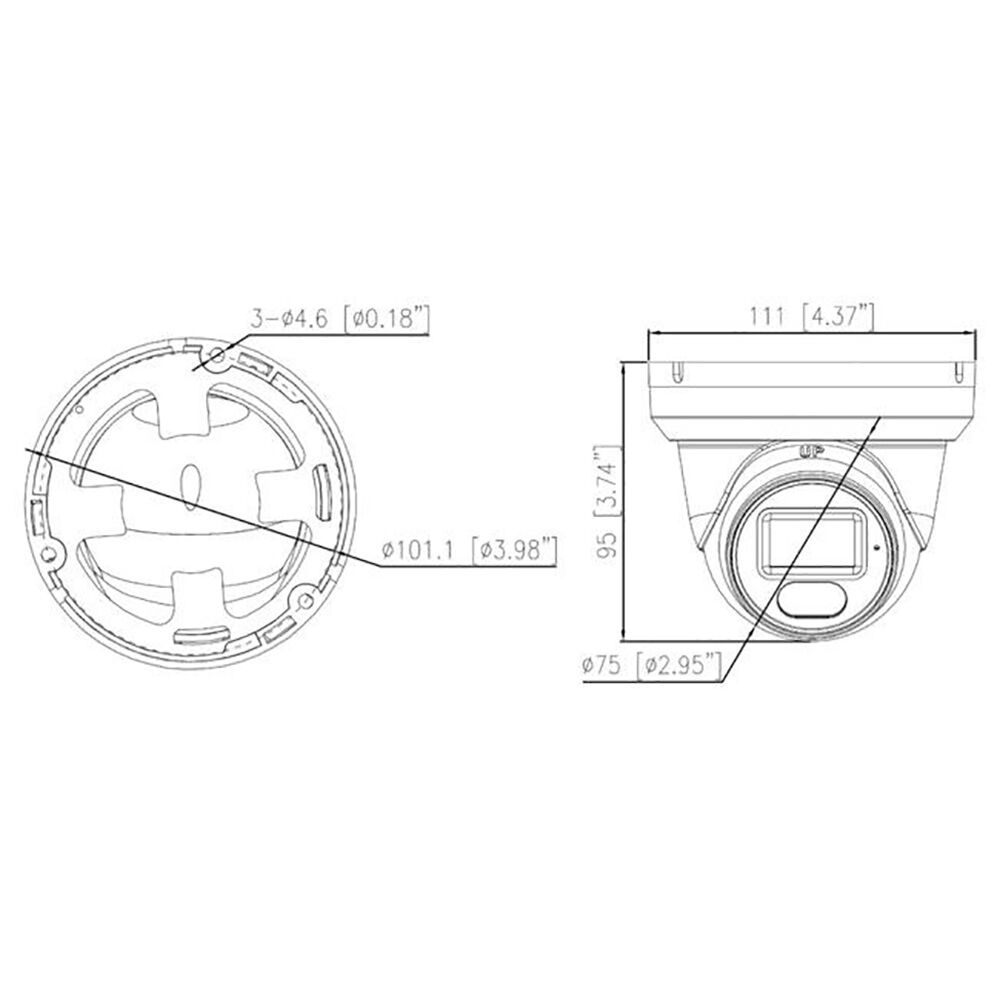

Size | 95.00(W)*85.00(H)mm |
Working Temperature | -20°C ~ 50°C |
Working Humidity | 0%~90% |
Includes:
1 x Camera
