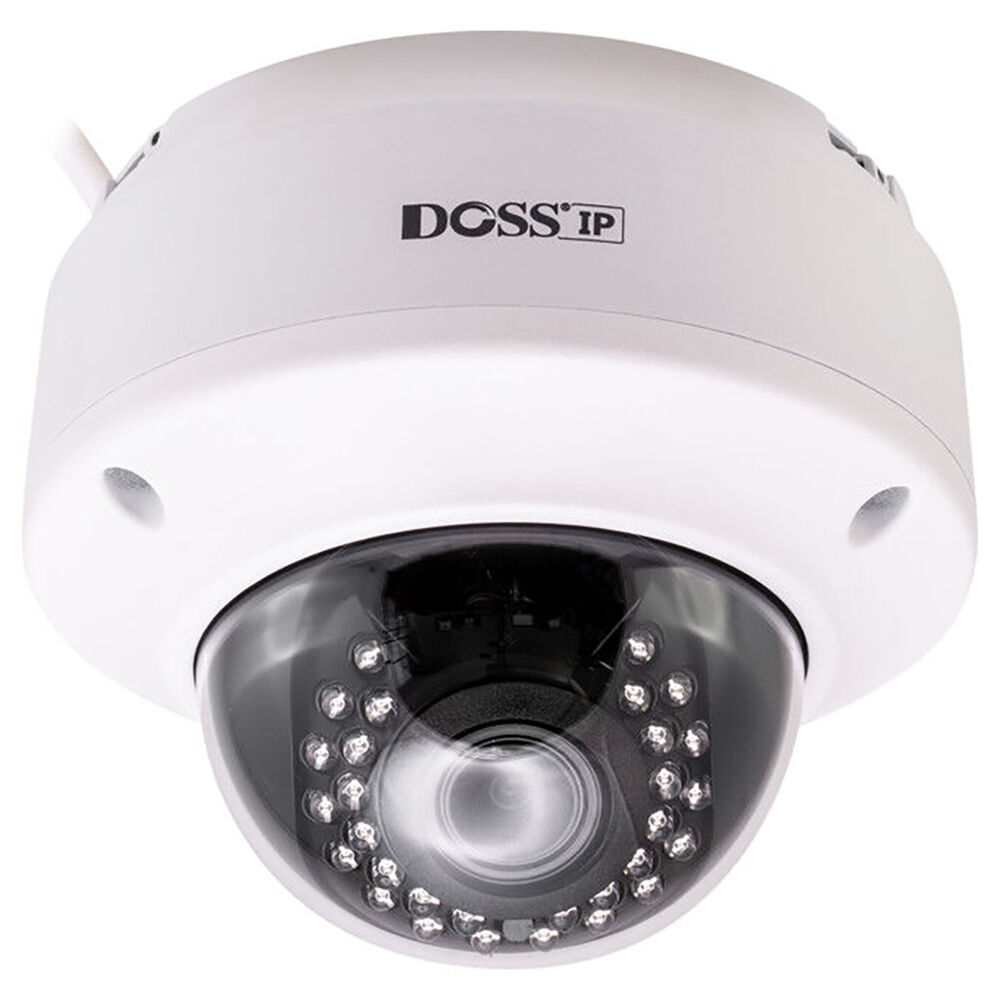

Doss 8MP IR30M IP66 Vandal Proof Dome IP Camera Human Detection CCTV White

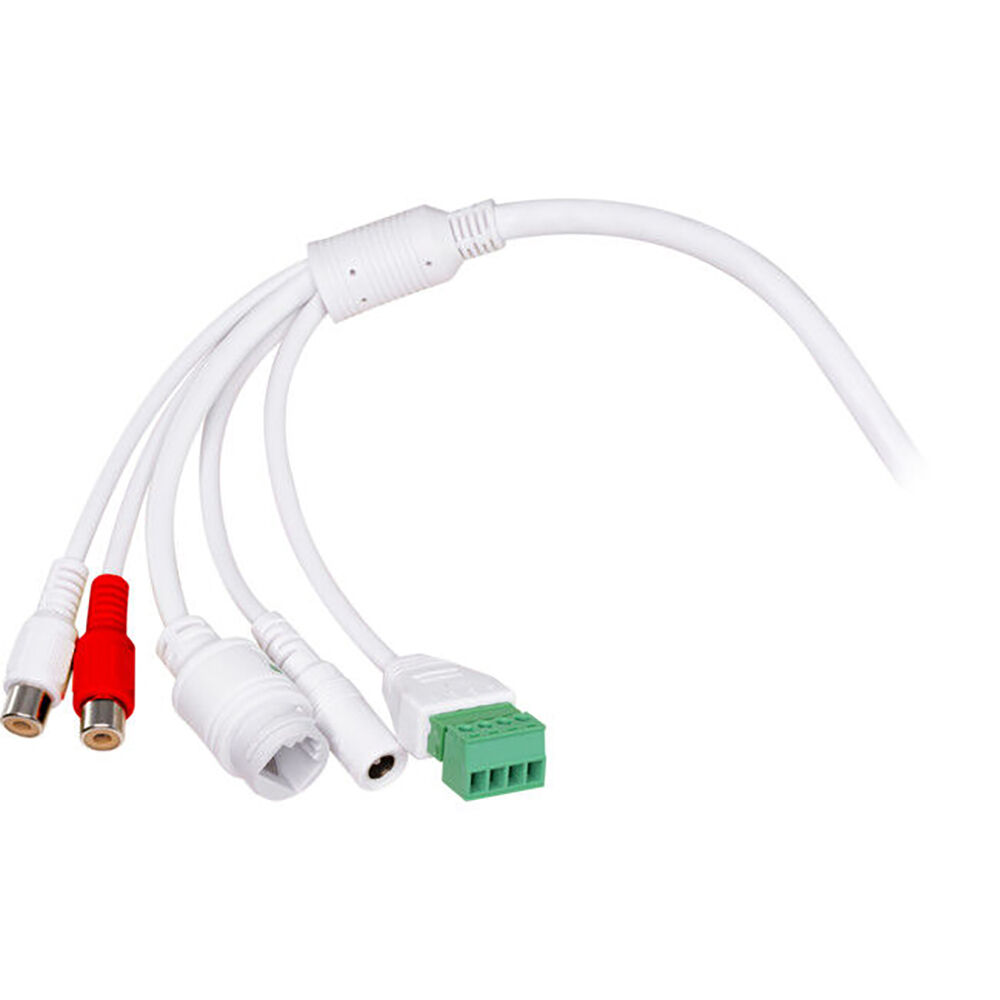

CONNECTIONS
CAMERA | |
Image sensor | 1/2.8" SONY 8MP Progressive Scan CMOS |
Min.illumination | 0 Lux/F1.4 (IR ON) Color: 0.1Lux/F1.4, B/W: 0.05Lux/F1.4 |
IR distance | 30-40m (32x IR leds) |
Electronic shutter | Auto/ Manual (1/25~1/10000),FLK |
Day/ Night | ICR switch, auto, color, B/W, ext |
Lens | 2.7-13.5mm Motorized lens |
Lens interface | Φ14 |
Output | PAL/ NTSC adjustable |
WDR | WDR (Off/ Low/ Middle/ High) |
Light board control | Auto/ Manual/ Off / Support 0-100 brightness adjust |
3D N/R | Off/ Low/ Middle/ High/ Higher |
Defog | Off/ Low/ Middle/ High |
Mirror | Off/ Horizontal/ Vertical/ 180° rotation/ Corridor mode (90° rotation, 270° rotation) |
Slow Shutter | Off/On |
Exposure control | Auto/ Manual |
Image setting | Brightness, Contrast, Saturation, Sharpness, Hue |
Humanoid Detection | |
Detection Quantity | ≤10 person |
Humanoid Size | Humanoid pixel≥40X40 |
Detection Ratio | ≥99% (meet above requirement) |
Capture Corresponding speed | ≤1s |
Max Detection Frame | 5fps/s |
Fault Detection Ratio | ≤2% |
Detect Part | People with any posture including half body,head,hand shoulder |
Track People | Support |
Detection Mode | Support static and dynamic humanoid detection |
Detection Method | Image detection during day or night time with lights or IR Leds |
Detection Area | Appointed area, default full-screen |
Upload Method | Upload it under private protocol |
Trigger Method | Video trigger |
AUDIO/VIDEO ENCODING | |
Video compression | H.265/H.264 |
H.265 Encoding | Main Profile |
H.264 Encoding | BaseLine / Main Profile / High Profile |
Encoding features | Main stream:8MP(3840*2160)20fps,5MP(2592*1904), 4MP(2560*1440)\3MP(2304*1296)\2MP(1920*1080) 25fps Sub-stream:D1(720*576),VGA(640*480),Q720P(640*360),CIF(352*288),QVGA(320*240) |
Max. Resolution | 3840*2160 |
Video bit rate | Constant bit rate, variable bit rate (32Kbps~16Mbps) |
Video type | Complex stream/ Video stream |
Audio compression | G.711u |
Audio bit rate | 64Kbps |
NETWORK | |
Network protocol | TCP/IP,UDP,HTTP,DHCP,RTSP,DDNS,NTP,PPPoE,UPnP,SMTP,FTP |
Access protocol | ONVIF, SLINK, HIK |
Browser | Support IE, Chrome, Firefox, Safari |
Video web preview | 4 users max on web login |
User permission | User add/modify/delete, permission management |
Safe mode | Authorized user name and password, HTTPS encryption and AES link encryption, RTSP verification |
Motion detection | Set detection zone, multi-level sensitivity can be set |
Tampering alarm | 1 zone |
Privacy Mask | 4 zones |
Event linkage | Snapshot, FTP upload or email sending, alarm output linkage, preset linkage |
ANR | Support,match with NVR |
Device exception | Support network disconnected, IP conflict, illegal access alarm |
OSD | Title, time and date overlay, multi-line OSD, OSD color optional |
DST | Support |
Snapshot | Support snapshot, snapshot resolution is encoding resolution |
System Upgrade | Support remote upgrade |
INTERFACE | |
Network Interface | RJ45 10M/100M network adaptive |
Power | 12V DC power input |
Audio | 1ch input/1ch output |
Alarm input | 1ch |
Alarm output | 1ch |
GENERAL | |
Operating temperature | -20°C ~ 55°C |
Operating humidity | 0%-90% |
Protection grade | IP66/IK10 and Vandalproof |
Power supply | DC12V /PoE |
Power consumption (max) | <9W |

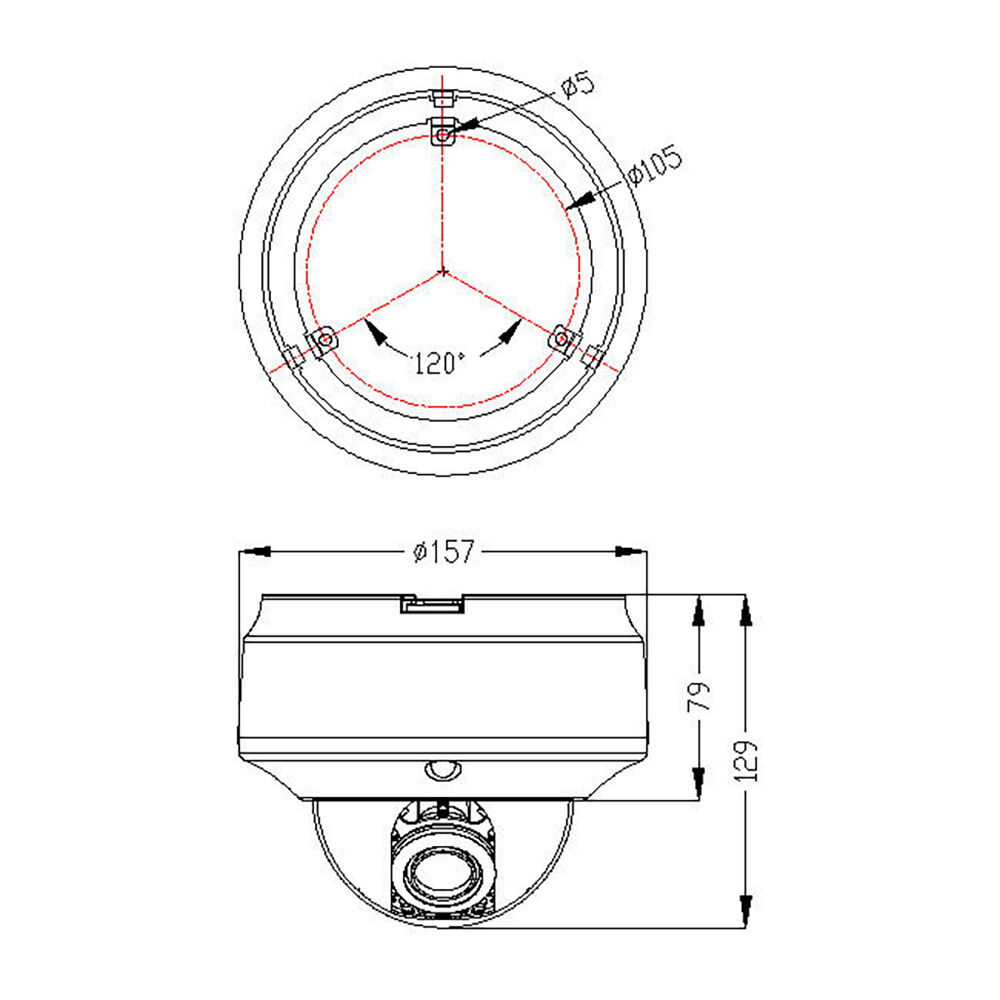

Dimensions(mm) | 157mm(w)x129mm(H) |
Includes:
1 x Camera
