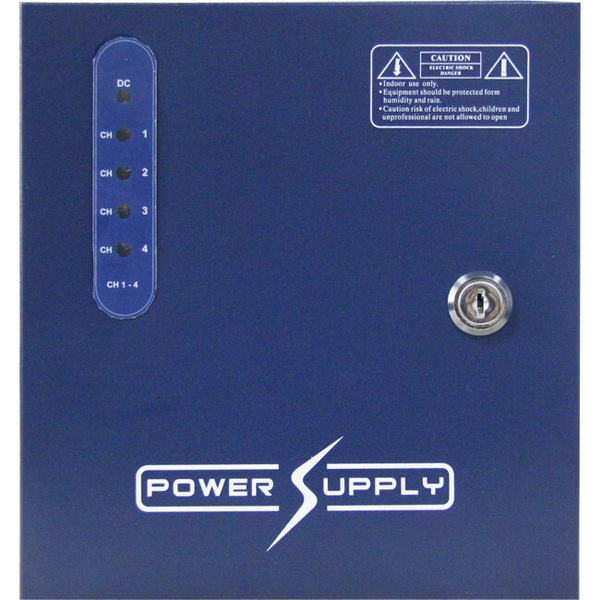

4 WAY 12V DC 5A POWER SUPPLY WITH PFC SURGE PROTECTION
Features:
Universal AC input range: 96-264VAC, 47~63Hz
Each channel is protected separately. There is one tube fuse (Glass fuse) for the mainboard and PTC (Polymeric temperature control) fuses for every individual channel.
Short circuit, over current and overload protection
Models with a power larger than 60W are configured with PFC function.
Meet the European energy efficiency standard
5kA surge protection
High-quality cooling fin to reduce power consumption
External LED indicators for each channel output
Extra AC jack on the side of the box (AC power lead is not included)
Built-in EMI wave filter with 100% full load burn-in test
Using 105°C long life electrolytic capacitors
Wall type blue baking finished shell
Specifications:
Input: 93 - 264V AC
Output: DC 12V 5A
Operating temperature: 30 ~ 70°C
