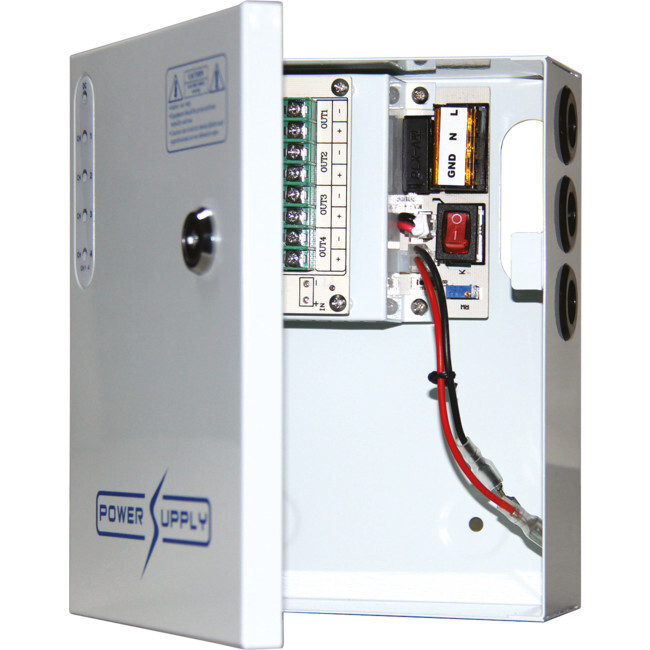

Doss PWU0412W05 4-Way 12V DC 5A Power Supply w/ UPS PFC Surge Protection White

Image 1
Limited Stock
$90.90

Collect 90 Everyday Rewards points

Log in to MyDeal to link your card
Free Shipping
Sold & shipped by KG Superstore
Secure ways to pay at checkout

4 WAY 12V DC 5A POWER SUPPLY WITH UPS PFC SURGE PROTECTION

  • Backup battery charger: keep the system running when power cut off. Battery size: 7A/ h

  • Universal AC input range: 96-264VAC, 47~63Hz

  • Output

  • DC Voltage:  12V

  • Rated Voltage:  12V-14.8VDC

  • Current:  5A

  • Power: 60W

  • Ripple and Noise: ≤100mV

  • Voltage Accuracy: ±10%

  • Set-up Time: ≤2S@120VAC ≤1.0S@230VAC

  • Hold up Time: ≥10mS@120VAC,≥20mS@230VAC

  • Voltage Range: 96V~264VAC

  • Frequency Range: 47~63Hz

  • Efficiency (Type): 80%~95%

  • Over Load: 105%~150% (rated load)

  • Over Voltage:115%~150% (rated output voltage)

  • Shorted Circuit

  • Fuse Tube

  • Operating Temp. & Hum.: -10°C~45°C; 20%~90%RH (non-condensing)

  • Storage Temp. & Hum.: -20°C~+85°C 20%~95%

  • Dimension (L*W*H): 202*163*70mm


Specifications:

Standard Consumer Warranty

GTIN: 9328202018090

Estimated Delivery Time Frame:2-7
