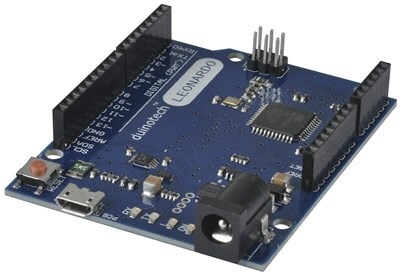

Duinotech Leonardo r3 Development Board For Arduino XC4430

Duinotech Leonardo r3 Development Board For Arduino XC4430

Price
$49.95
Collect 49 Everyday Rewards points
Log in to MyDeal to link your card
Shipping
Free Shipping

Quantity
Maximum item limit (100) has been reached.


Features

  • Most of the Duinotech models use two chipsets, one for the main controller, one for USB communication.
  • The Duinotech Lite combines both these functions into a single IC, which opens to door for more advanced USB functions.
  • Now you can have your DuinoTECH Lite emulate a computer keyboard, mouse, joystick and many other types of input device.
  • The DuinoTECH Lite also boasts more analog inputs (12), and an extra PWM channel.
  •  Fully Arduino™- Compatible
  •  ATMega32u4 Microcontroller
  •  Program Memory: 32KB(4KB used by bootloader)
  •  EEPROM: 1KB
  •  SRAM: 2.5KB
  •  Speed: 16MHz
  •  Built in USB-Serial
  •  IO:
  •  Digital IO: 20 pins (7 are configurable as digital or PWM)
  •  PWM Capable: 7 pins
  •  Analog Inputs: 12 pins (6 are shared with digital pins)
  •  Serial Ports: 2 (One USB, one UART, more supported via SoftwareSerial library)
  •  Input voltage:
  •  5VDC Regulated via USB port or 5V pin
  •  7-14VDC via Vin pin
  •  On-board regulator supplies 5V when unit is powered via Vin pin
  •  USB Cable required- use WC7724
  •  Dimensions: 75(W) x 53(L) x 13(H)mm
GTIN: 9319236445990

Estimated Delivery Time Frame: 5-7 business days
