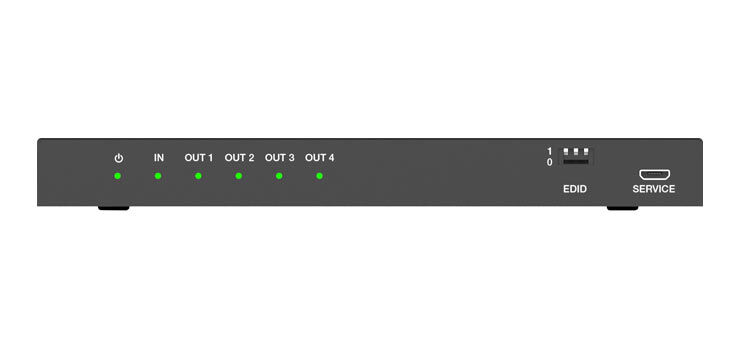

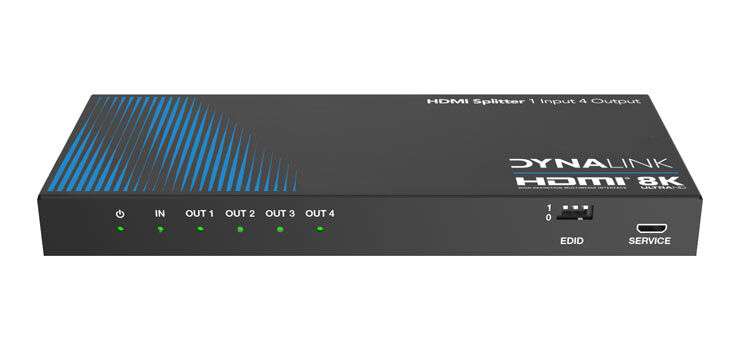

Dynalink 8K 40Gbps HDMI 4 Way Splitter Advanced EDID Management 212Wx94Dx23Hmm

Image 1
Image 2
Image 3
Image 4
$589.90

Collect 589 Everyday Rewards points

Log in to MyDeal to link your card
Free Shipping

Dispatch in 2 business days

Sold & shipped by Bourne Superstore
Secure ways to pay at checkout
Overview

This splitter can distribute one HDMI source signal to any four display devices. It supports video resolution up to 8K@60Hz 4:2:0. It supports advanced EDID management and audio de-embedding function (output through the optical and analog port). This multi-functional product can be widely applied in scenarios of demonstration, video conferencing, multi-media teaching and other occassions requiring for multi screen display.

Features
  • HDMI 2.1 and HDCP 2.3 compliant
  • 40Gbps video bandwidth
  • Supports video resolution up to 8K@60Hz 4:2:0 10bit, 8K@30Hz 4:4:4 10bit, 4K@120Hz 4:4:4 10bit
  • VRR, FVA, ALLM supported
  • Supports HDR, HDR10, HDR10+, Dolby Vision, HLG pass through
  • Supports HDMI audio formats: LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
  • Built-in Equalizer, Retiming and Driver
  • Advanced EDID management
  • Support audio de-embedding function (output through the optical and analog port)
  • Compact design for easy and flexible installation for four HDMI outputs
  • HDMI daisy chain several splitters - up to 4 levels.
Specifications

Technical

  • HDMI Compliance: HDMI 2.1
  • HDCP Compliance: HDCP 2.3
  • Video Bandwidth: 40Gbps
  • Video Resolution: Up to 8K@60Hz 4:4:4 8/10/12bit, 8K@60Hz 4:2:0 12-bit, 8K@30Hz 4:4:4 10-bit, 4K@120Hz  4:4:4 10-bit
  • Audio Formats: HDMI input/output: LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD Audio de-embedding output: Optical: LPCM 2/5.1 CH, Dolby Digital 2/5.1 CH, DTS 2/5.1 CH, Analog: PCM 2.0
  • Colour Depth: 8-bit,10-bit,12-bit
  • Colour Space: RGB, YCbCr 4:4:4 / 4:2:2 / 4:2:0
  • ESD Protection: Human body model — ±8kV (Air-gap discharge) & ±4kV (Contact discharge)

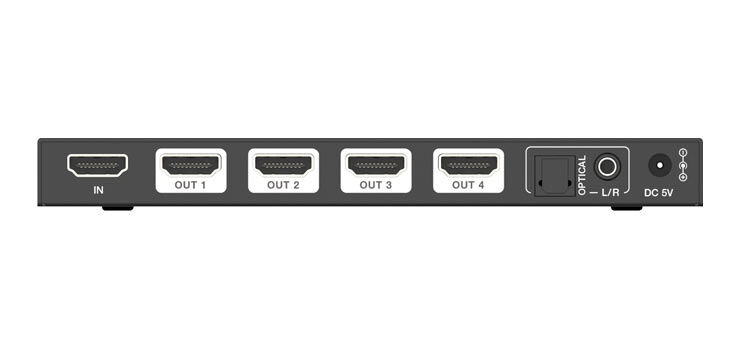

Connection

  • Input Ports: 1 x HDMI IN Type A (19-pin female)
  • Output Ports: 4 x HDMI OUT (Type A, 19-pin female), 1 x OPTICAL (S/PDIF), 1 x L/R (3.5mm Stereo Mini-jack)
  • Control: 1 x SERVICE (Micro USB, Update port)

Mechanical

  • Housing: Plastic Enclosure
  • Dimensions: 212W x 94D x 23Hmm
  • Weight: 539g
  • Power Supply: 5V 2A DC
  • Power Consumption: 9W (Max)
  • Operation Temperature: -0°C to 40°C
  • Storage Temperature: -20°C to 60°C
  • Relative Humidity: 20 to 90% RH (non-condensing)

    *Specifications are subject to change without notice.

Box Contents

  • 1 x 8K HDMI 1x4 Splitter
  • 1 x 12V/2.5A Power Supply
  • 1 x User Manual

GTIN: 9321758253236

Estimated Delivery Time Frame:5-7 business days
