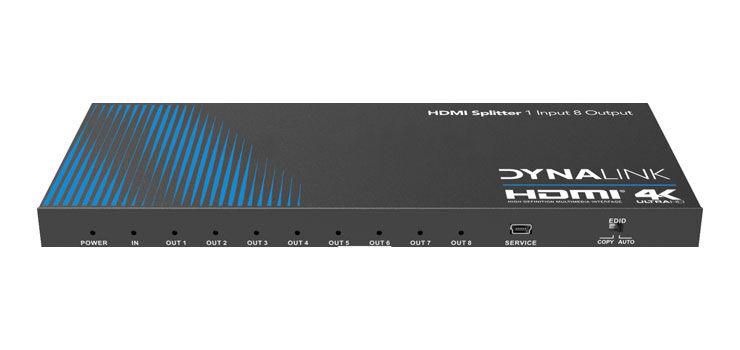

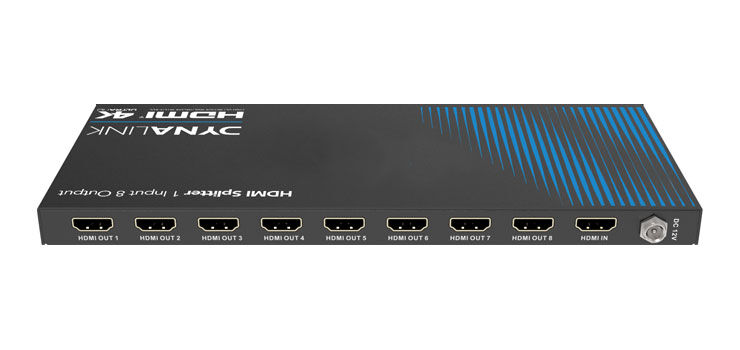

Dynalink A3136D HDMI Splitter 18GBps Bandwidth 1 Input 8 Output 243W×102D×16Hmm

Image 1
Image 2
Image 3
$259.90

Collect 259 Everyday Rewards points

Log in to MyDeal to link your card
Free Shipping

Dispatch in 2 business days

Sold & shipped by Bourne Superstore
Secure ways to pay at checkout
Overview

Allows the connection of multiple HDMI displays to a single HDMI source with no loss of signal quality. This splitter is ideally used for conference centres, sports bars, concerts, board rooms and other distributed AV applications where multiple displays are required.
Features

  • HDCP 2.2 compliant
  • Supports 18Gbps bandwidth
  • Supports resolution up to 4K@60Hz 4:4:4
  • Supports HDR function
  • Supports COPY/AUTO EDID control via dialling the DIP switch
  • Compact design for easy and flexible installation
Specifications

Technical

  • HDMI Compliance: HDMI 2.0b
  • HDCP Compliance: HDCP 2.2
  • Video Bandwidth: 594MHz/18Gbps
  • Video Resolution: 480i ~1080p50/60Hz, 4K2K@30Hz, 4K2K@60Hz
  • HDMI Audio Formats: PCM 2CH, LPCM 7.1/5.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos and DTS:X
  • ESD Protection: Human body model—±8kV (Air-gap discharge) & ±4kV (Contact discharge)

Connection

  • Input Ports: 1×HDMI Type A (19-pin female),  1×SERVICE (Micro USB, Update port)
  • Output Ports: 8×HDMI Type A (19-pin female)

Mechanical

  • Housing: Metal Enclosure
  • Dimensions: 243W × 102D × 16Hmm
  • Weight: 572g
  • Power Supply: Input: AC100 - 240V 50/60Hz, Output: DC 12V/1A
  • Power Consumption: 6.15W
  • Operation Temperature: -10°C to 50°C
  • Storage Temperature: -20°C to 60°C
  • Relative Humidity: 20 to 90% RH (non-condensing)

Package Contents

  • 1× 8 Way HDMI Splitter
  • 1× 5V/1A Power Supply
  • 1× User Manual





GTIN: 9321758253045
