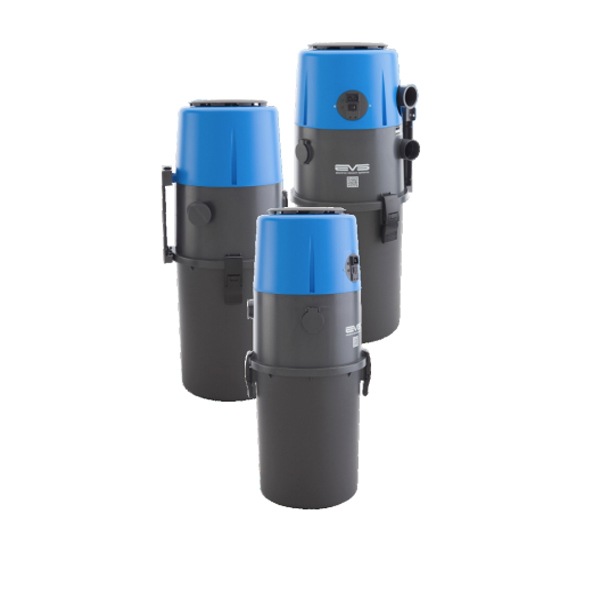

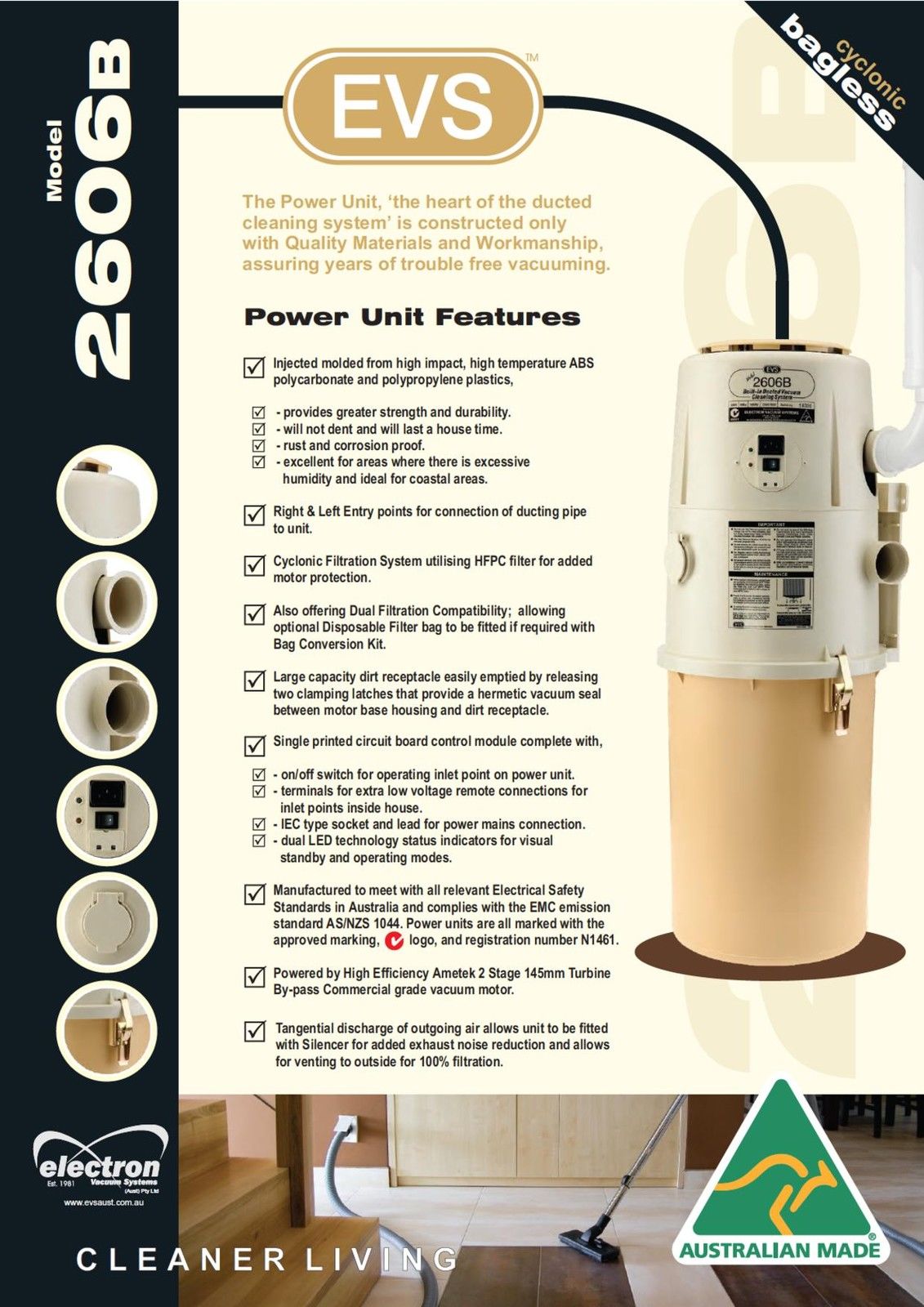

Electron EVS Ducted Vacuum Cleaner System Model 2606B 5 Year Warranty.

Model 2606B

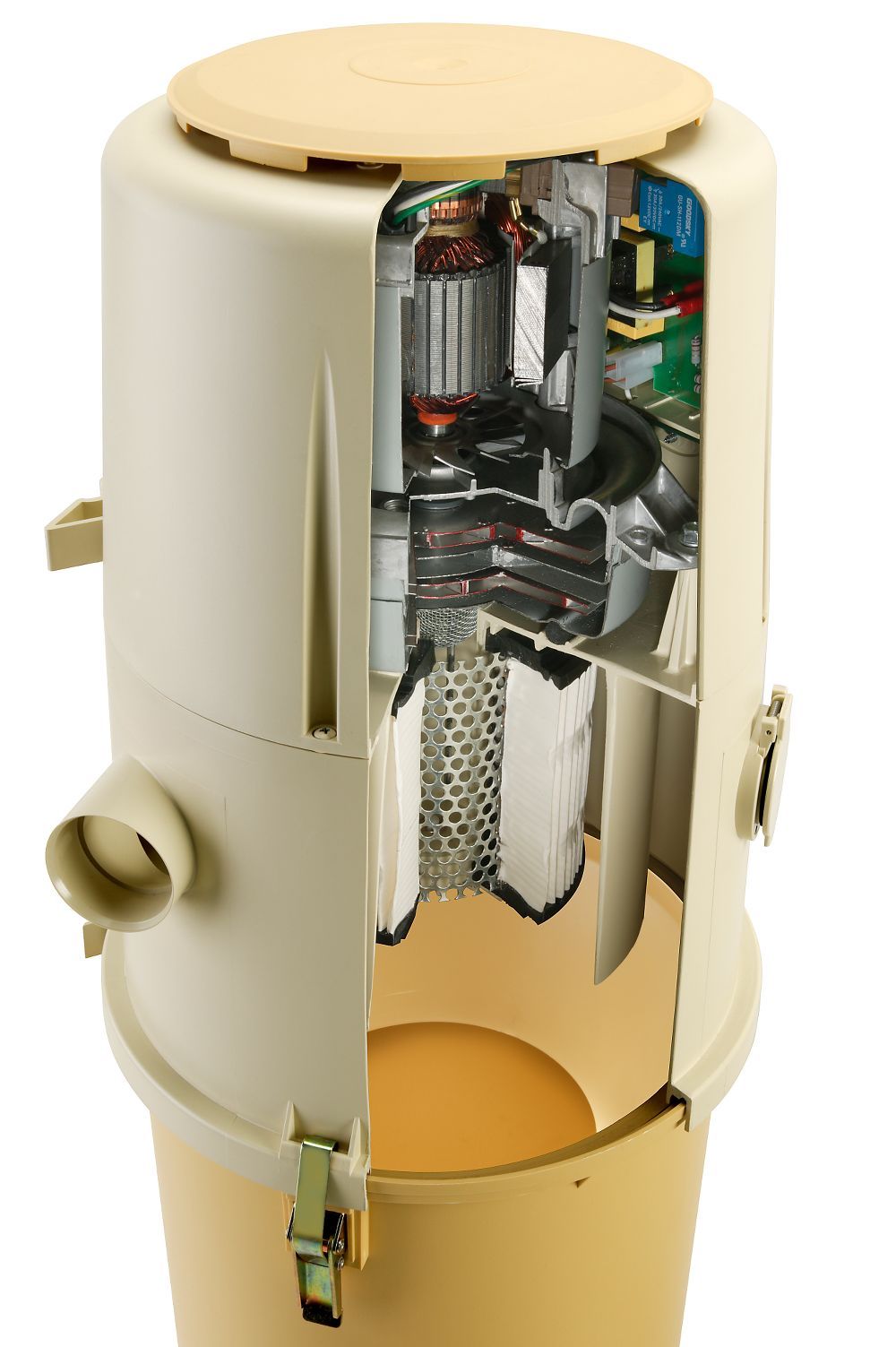

Vacuum Motor Specifications

Tangential By-pass discharge l
Flow Through discharge
Double ball bearings l
Diameter of Motor mm 145
Air Watts 405
Airflow l/s (max.) 50
Sealed Vacuum mm H2O (max.) 2450
RPM @19mm working orifice 21200
Label Rated Electrical Watts 1400
Noise Level dbA with Silencer @ 3m 68.5
Temperature Sensistive Thermal Protector l
Control Circuit 12 V DC l
Control Current 100mA l
Nominal Voltage 240 V AC l
Nominal Frequency 50 Hertz l

Power Unit Physical Specifications

Overall Height (mm) 810
Overall Diameter (mm) 310
Overall Weight (kg) 6.9
Dual Filtration Compatible System l
Cyclonic Filtration (Standard) l
HFPC Filter Cartridge l
Filter Bag Filtration
Silencer for Exhaust l
Left & Right ducting entry points l
Direct Inlet point with On/Off switch l
Wall Mounting of Power Unit l
Body Housing Construction ABS
Dirt Capacity litres 25

Authority Approvals / Origin

"C" Tick Compliance EMC - AS/NZS 1044 l
Made in Australia l

Installation Recommendations *

Size of Building up to Squares 30
Number of Inlet Points 4
Number of Aux Points 2
Working Hose length - up to metres 12
Max distance to furtherest point metres
Hide-A-Hose Compatible

Notes:-

Instalaltion Recommendations shown is only an approxiate guide and may vary to actual construction specifications and layout of building. Please consult with your installer for appropriate model.

Specifications subject to change without notice. EOR
