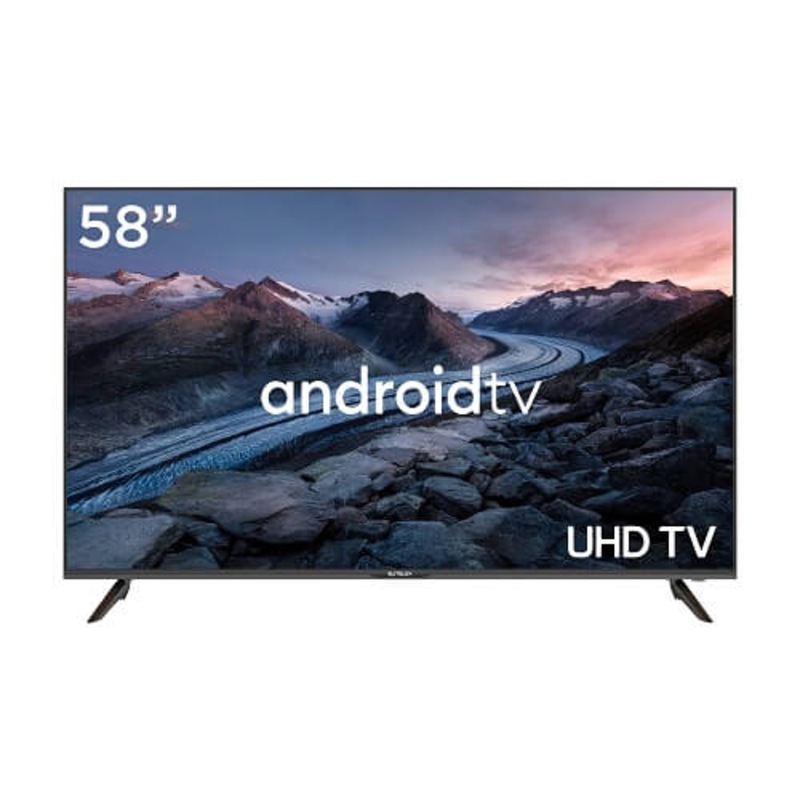

EliteLux (US58UHD20G10)58" 4K UHD GOOGLE Smart TV

EliteLux 58 4K UHD DLED Android TV 4K ultra-high-definition picture quality, with 1.5GB+8GB of large-capacity operation and storage space, realizes the dual functions of the large-screen home theater and entertainment terminal.

EliteLux 58³ Panel

Display Maker   Display Type       Display Colors

INNOLUX/CHOT DLED      16.7M

Aspect Ratio       Contrast               Response Time

16: 9      5000?1               8m/s

Resolution          Viewing Angle   Brightness

3840*2160           178°* 178°           250cd/?

Solution

OS          Solution               Built-in Wi-Fi

Andorid 9.0         MSD6886             YES

CPU       GPU       DDR Size

ARM Cortex-A55 4-core Mali470 4-core  1.5GB

eMMC Flash       Comb Filter

8GB        3D

Video

Video System    YPbPr Resolution             HDMI Resolution

ATV: PAL, SECAM; DTV: DVB-T/T2             NO         UP to 3840—2160 60Hz

Progressive Scan              Color Temperature Adjustment HD Ready

YES         YES         YES

Audio

Audio System    Maximum Audio Output               Effects

M            2*8W    YES

Stereo Sound     Equalizers

YES         YES

Power Supply & Certifications

Power Requirement       Power Consumption (Operation)              Power Consumption (Standby)

100-240 50/60Hz              ?160W ?0.5W

ETL         FCC        UL

NO         NO         NO

Connectivity

AV IN     EARPHONE         RJ45

1              1              1

USB        TV           HDMI

2              1              3

OPTICAL

1

Accessory

User Manual      Remote Controller           Remote Batteries

YES         YES         YES

Wall-mount Bracket        Stand

OPTIONAL           YES

Dimension

Unit With Stand (L—W—H) (mm) 1Pc/Carton?mm?

1300—245—820   1400—170—840

Unit Without Stand (L—W—H) (mm)

1300—85—760

Weight

Net?kg?         1 Carton (kg)

14.1        19

Loading

321PCS/40HQ
