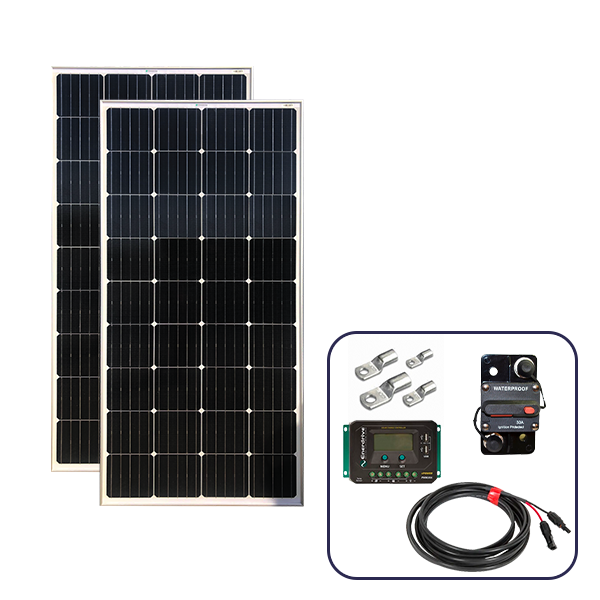

Pack Includes:

• Enerdrive 190W Mono Crystalline Fixed Solar Panel, Silver x 2 - SP-EN190W
• Enerdrive ePOWER PWM 30A Solar Charge Controller - EN43030

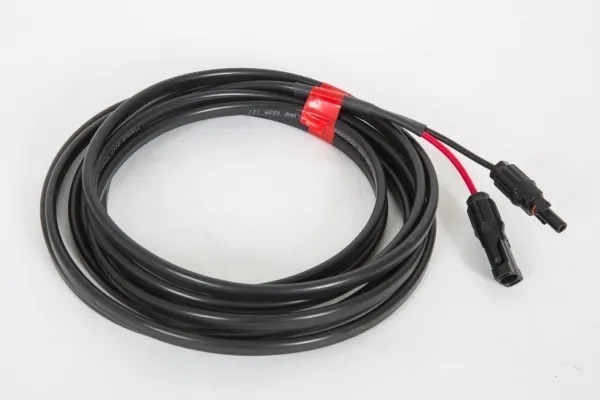

• Enerdrive 10m 4mm² Twin Solar Cable with MC4 Plugs - SP-SC10
• Enerdrive EN-RCB30 Surface Mount Resettable Breaker - 30amp - EN-RCB30
• Enerdrive 6mm2 x 8mm Cable Lug Bell Mouth x4 - 4 x EN-LUG-6-8

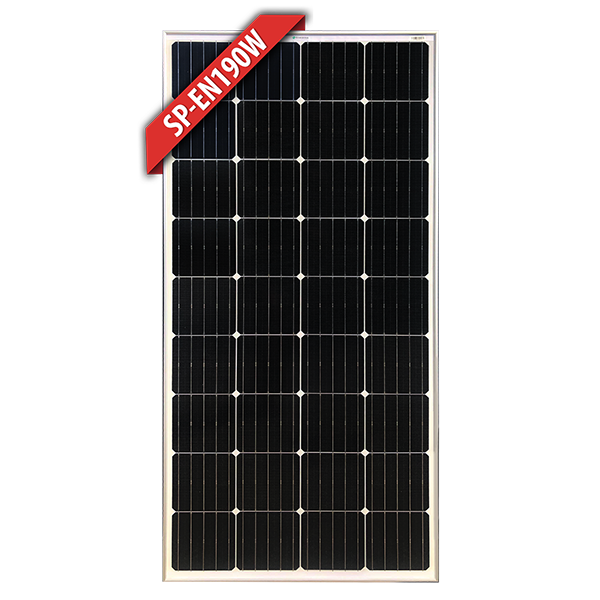

2x Enerdrive 190W Mono Crystalline Fixed Solar Panel, Black

Enerdrive solar panels are typically around 20+vdc open circuit.

• Suited to 12v installations (or 24v by series connections of panels)
• A fly lead cable is provided for easy connection of the 10 & 20w panels
• The larger panels have MC4 compatible solar cable connectors included
• 5 Year Warranty

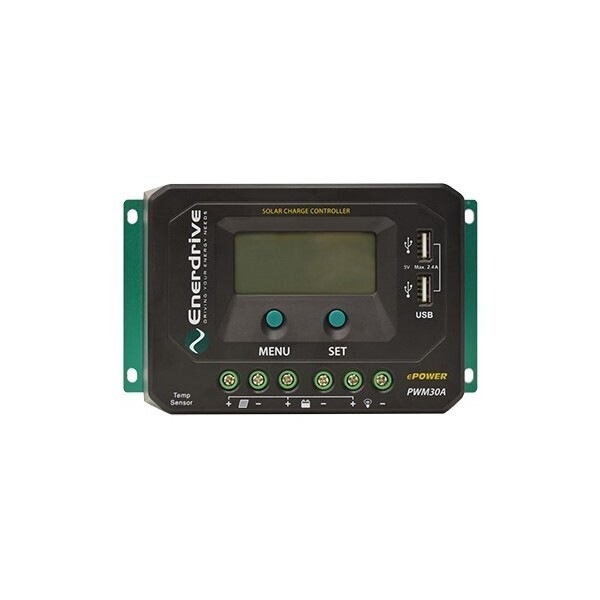

Enerdrive ePOWER PWM 30A Solar Charge Controller

For maintenance free protection of your batteries and solar panels the controllers regulated output will prevent batteries overcharging.

Specifications:

• Amps 30.0
• Operating Temperature Range -25˚C+55˚C | -20˚C+70˚C (LCD)
• Humidity 95% N.C
• Output 5VDC/2.4A (USB, Total)
• Open Circuit Voltage 12V - 25 VOC / 24V - 50 VOC
• Enclosure Class IP30
• Nominal Voltage 12/24 VDC
• Charge Voltage Absorption Sealed 14.4V / Gel 14.2V / Flooded 14.6V
• Charge Voltage Float 13.8V (Sealed / Gel / Flooded)
• Input Voltage 9V - 32V
• Warranty 5 Years

Features:

• Informative backlight LCD display indicates solar charge input, charge/load output Volatage/Amps
• Selectable battery type Sealed, Flooded & Gel
• 2 x USB Outputs 2.4A
• Full output operation up to 55oC
• Temperature compensation
• High precision on voltage set point
• Wall mountable
• Protects battery from overcharge and discharge
• 12/24V auto detect
• Handles up to 30 Amps of Array Current
• Handles up to 450 Watts of solar power
• Maintenance free protection of your solar panel and batteries
• Maintains battery voltage
• Maintain 12/24V batteries in a fully charged state

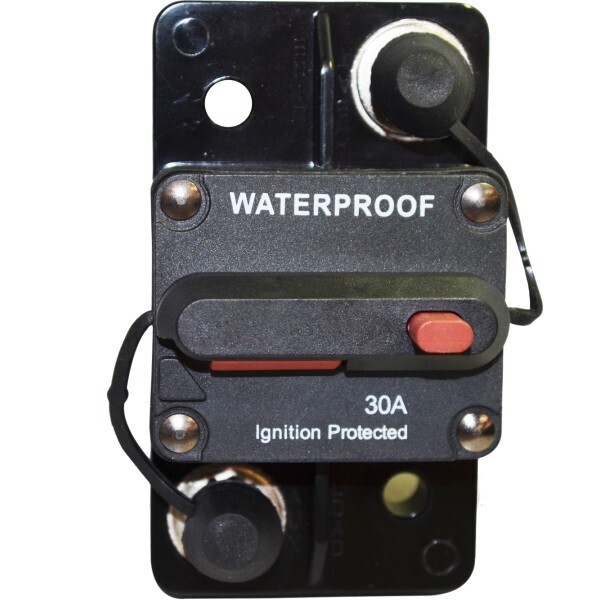

Enerdrive EN-RCB30 Surface Mount Resettable Breaker - 30amp

86 x 48.4 x 44.2 mm

Enerdrive have released an affordable range of surface mount circuit breaker while keeping with the high quality that our customers have come to expect. Units between 25-70amp have 1/4” studs while the larger units 80—150amp have the larger 3/8” studs for Quality DC connections.

Specifications:

• Storage Temperature Range -34°C to 149°C
• Operating Temperature Range -32°C to 82°C
• Weight 0.1 kg
• Voltage Up to 48VDC
• Amps 30

Note: Please check the Enerdrive Battery Charger Manual for the recommended Breaker & Cable sizing.
