[ER7206] SafeStream Gigabit Multi-WAN VPN Router, Up to 4 WAN Ports 1x SFP

Image 1
Image 2
Image 3
Limited Stock
$189

Collect 189 Everyday Rewards points

Log in to MyDeal to link your card
$14.95 Australia-wide (per-item)

Dispatch in 2 business days

Sold & shipped by Best Deal Computers
Secure ways to pay at checkout

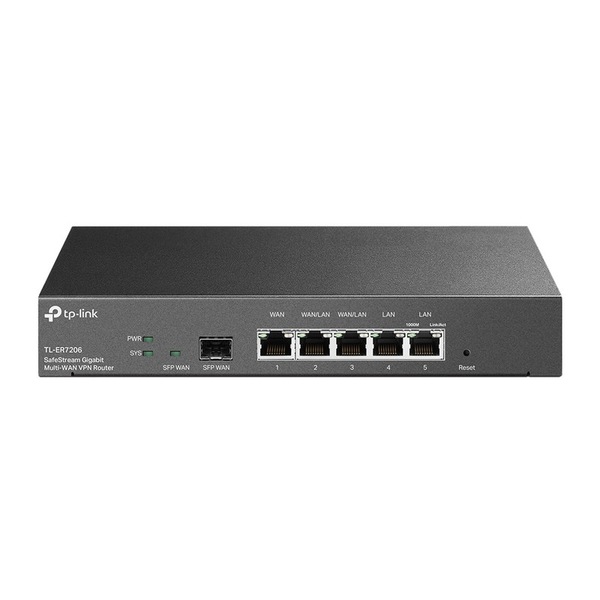

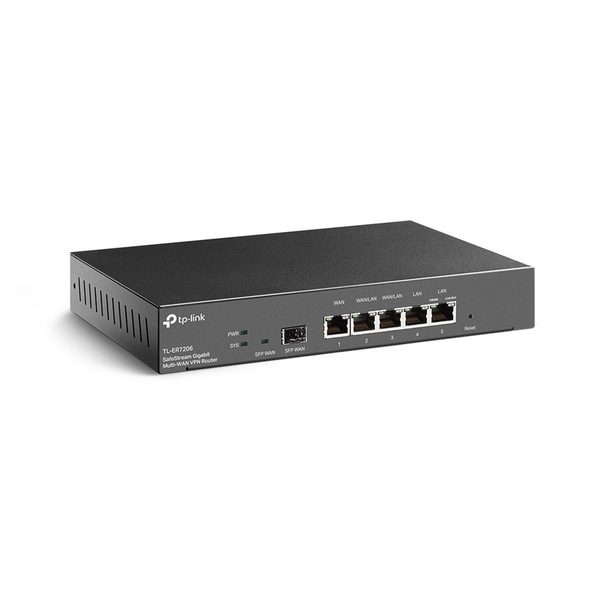

TP-Link TL-ER7206 SafeStream Gigabit Multi-WAN VPN Router

Features:
  • Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)**, Centralized Cloud Management, and Intelligent Monitoring.
  • Centralised Management: Cloud access and Omada app for ultra convenience and easy management.
  • Gigabit Ports: 1 gigabit SFP and 5-gigabit RJ45 ports provide high-speed wired connectivity.

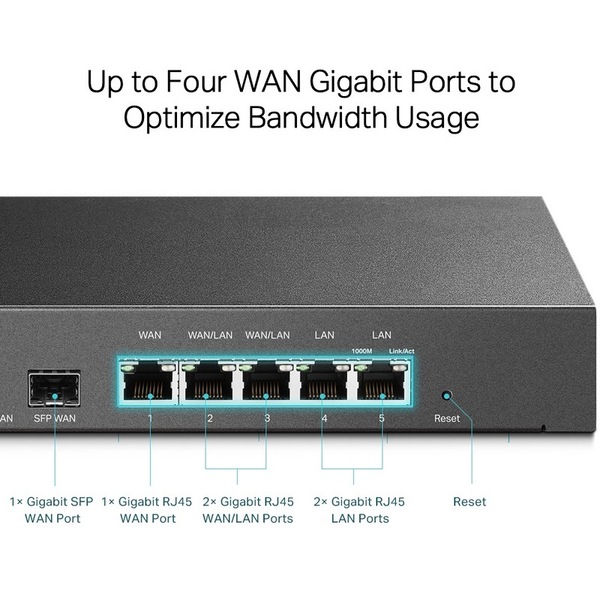

  • Up to 4 WAN Ports: 1 gigabit SFP WAN port, 1 gigabit RJ45 WAN port, 2 gigabit WAN/LAN ports optimize bandwidth usage.
  • Highly Secure VPN: Supports up to 100x LAN-to-LAN IPsec, 50x OpenVPN*, 50x L2TP, and 50x PPTP VPN connections.
  • Abundant Security Features: Advanced firewall policies, DoS defence, IP/MAC/URL filtering, and more security functions protect your network and data.
Learn more about Omada Cloud SDN>?
Specifications:

HARDWARE FEATURES

  • Standards and Protocols :• IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1q
    • TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP
  • Interface :• 1 Fixed Gigabit SFP WAN Port
    • 1 Fixed Gigabit RJ45 WAN Port
    • 2 Fixed Gigabit RJ45 LAN Ports
    • 2 Changeable Gigabit RJ45 WAN/LAN Ports
  • Network Media :• 10BASE-T: UTP category 3, 4, 5 cable (Max 100m)
    EIA/TIA-568 100? STP (Max 100m)
    • 100BASE-TX: UTP category 5, 5e cable (Max 100m)
    EIA/TIA-568 100? STP (Max 100m)
    • 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)
  • Button :Reset Button
  • Power Supply :100-240 V~50/60 Hz
  • Flash :SPI 4MB + NAND 128MB
  • DRAM :512MB
  • LED :PWR, SYS, SFP WAN, WAN (Speed, Link/Act), LAN (Speed, Link/Act)
  • Dimensions ( W x D x H ) :8.9 x 5.2 x 1.4 in (226 x 131 x 35 mm)

PERFORMANCE

  • Concurrent Session :150,000
  • New Sessions /Second :5,500
  • NAT (Static IP) :940.3 Mbps / 940.2 Mbps
  • NAT(DHCP) :940.3 Mbps / 940.4 Mbps
  • NAT(PPPoE) :939.7 Mbps / 937.9 Mbps
  • NAT (L2TP) :918.0 Mbps / 917.9 Mbps
  • NAT (PPTP) :918.9 Mbps / 914.7 Mbps
  • IPsec VPN Throughput (AES256) :291.6 Mbps
  • IPsec VPN Throughput :291.6 Mbps
  • L2TP VPN Throughput :Unencrypted: 1360.3 Mbps
    Encrypted: 202.3 Mbps
  • PPTP VPN Throughput :Unencrypted: 1379.3 Mbps
    Encrypted: 115.6 Mbps
  • 1,518 Byte Packet forwarding rate :81,274 pps / 81,274 pps

BASIC FUNCTIONS

  • WAN Connection Type :• Static/Dynamic IP
    • PPPoE
    • PPTP
    • L2TP
  • MAC Clone :Modify WAN/LAN MAC Address†
  • DHCP :• DHCP Server
    • DHCP Address Reservation
    • Multi-IP Interfaces*
    • Multi-Net DHCP*
  • IPv6 :Developing†
  • VLAN :802.1Q VLAN
  • IPTV :IGMP v2/v3 Proxy

ADVANCED FUNCTIONS

  • ACL :IP/Port/Protocol/Domain Name Filtering
  • Advanced Routing :• Static Routing
    • Policy Routing
  • Bandwidth Control :• IP/Port-based Bandwidth Control
    • Guarantee & Limited Bandwidth
  • Load Balance :• Intelligent Load Balance
    • Application Optimized Routing
    • Link Backup (Timing§, Failover)
    • Online Detection
  • NAT :• One-to-One NAT§
    • Multi-Net NAT
    • Virtual Server
    • Port Triggering§
    • NAT-DMZ
    • FTP/H.323/SIP/IPSec/PPTP ALG, UPnP
  • Security :• SPI Firewall
    • VPN Passthrough
    • FTP/H.323/PPTP/SIP/IPsec ALG
    • DoS Defence, Ping of Death
    • Local Management
  • Session Limit :IP-based Session Limit

VPN

  • IPsec VPN :• 100 IPSec VPN Tunnels
    • LAN-to-LAN, Client-to-LAN
    • Main, Aggressive Negotiation Mode
    • DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
    • IKEv1/v2*
    • MD5, SHA1 Authentication Algorithm
    • NAT Traversal (NAT-T)
    • Dead Peer Detection (DPD)
    • Perfect Forward Secrecy (PFS)
  • PPTP VPN :• PPTP VPN Server
    • 10 PPTP VPN Clients
    • 50 Tunnels
    • PPTP with MPPE Encryption
  • L2TP VPN :• L2TP VPN Server
    • 10 L2TP VPN Clients
    • 50 Tunnels
    • L2TP over IPSec
  • OpenVPN :• OpenVPN Server*
    • 10 OpenVPN Clients*
    • 50 OpenVPN Tunnels*

SECURITY

  • Filtering :WEB Group Filtering§
    URL Filtering
    Web Security§
  • ARP Inspection :• Sending GARP Packets§
    • ARP Scanning§
    • IP-MAC Binding§
  • Attack Defense :• TCP/UDP/ICMP Flood Defense
    • Block TCP Scan (Stealth FIN/Xmas/Null)
    • Block Ping from WAN
  • Access Control :Source/Destination IP Based Access Control

AUTHENTICATION

  • Web Authentication :• No Authentication
    • Simple Password*
    • Hotspot?Local User / Voucher* / SMS* / Radius*?
    • External Radius Sever
    • External Portal Sever*
    • Facebook*

MANAGEMENT

  • Omada App :Yes
  • Centralized Management :• Omada Cloud-Based Controller
    • Omada Hardware Controller (OC300)
    • Omada Hardware Controller (OC200)
    • Omada Software Controller
  • Cloud Access :Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
  • Service :Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe)
  • Maintenance :• Web Management Interface
    • Remote Management
    • Export & Import Configuration
    • SNMP v1/v2c/v3*
    • Diagnostics (Ping & Traceroute)§
    • NTP Synchronize§
    • Syslog Support
  • Management Features :• Automatic Device Discovery
    • Intelligent Network Monitoring
    • Abnormal Event Warnings
    • Unified Configuration
    • Reboot Schedule
    • Captive Portal Configuration
    • ZTP (Zero-Touch Provisioning)**

OTHERS

  • Certification :CE, FCC, RoHS
  • Package Contents :• TL-ER7206
    • Power Cord
    • Quick Installation Guide
  • System Requirements :Microsoft Windows 98SE, NT, 2000, XP, Vistaâ„¢ or Windows 7/8/8.1/10, MAC OS, NetWare, UNIX or Linux
  • Environment :• Operating Temperature: 0-40 ? (32-104 ?);
    • Storage Temperature: -40-70 ? (-40-158 ?)
    • Operating Humidity: 10-90% RH non-condensing
    • Storage Humidity: 5-90% RH non-condensing
