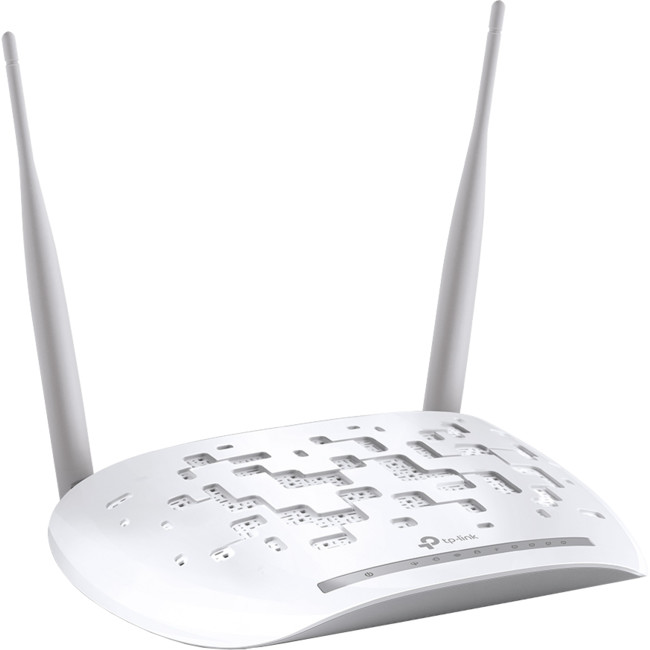

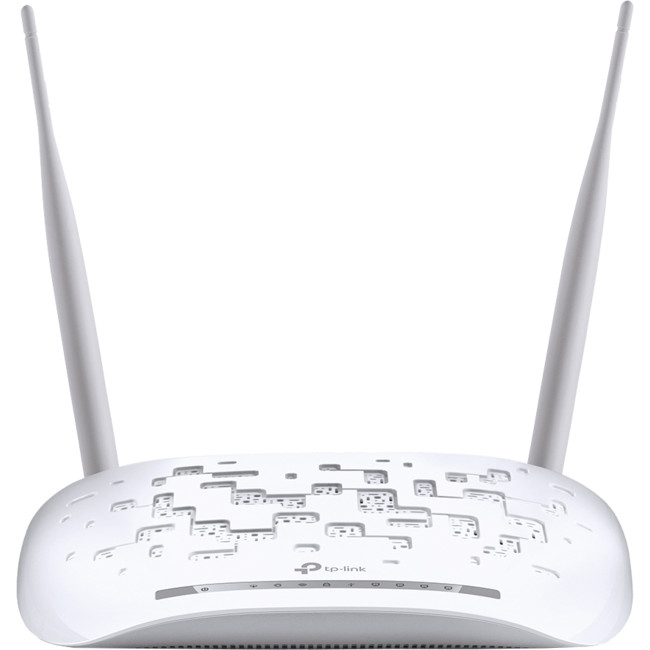

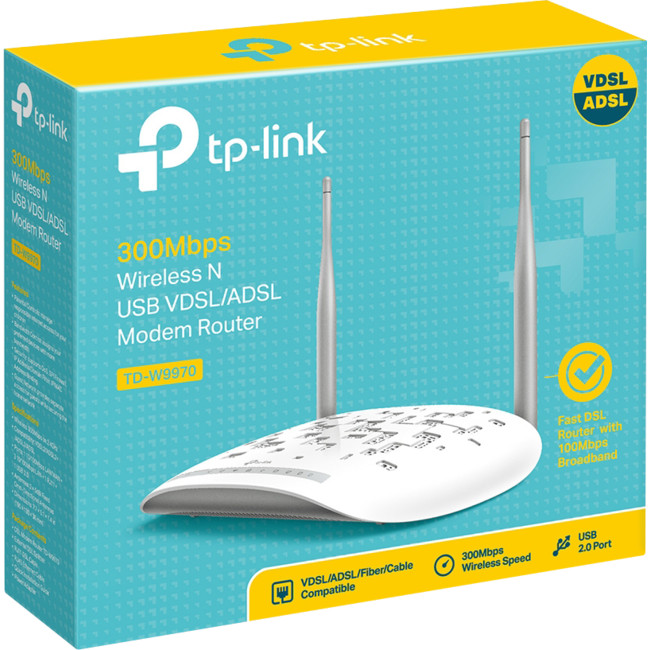

TP-LINK TDW9970 N300 Vdsl Modem Router W/ USB Fully Compatible With the Vdsl2/Adsl2+/Adsl2/ADSL
,gravity=Center,allowExpansion)
,gravity=Center,allowExpansion)
,gravity=Center,allowExpansion)
,gravity=Center,allowExpansion)
,gravity=Center,allowExpansion)
Collect 86 Everyday Rewards points
Collect 86 Everyday Rewards points
VDSL2 technology delivers VDSL broadband speeds of up to 100Mbps simultaneously in both the upstream and downstream directions. The integrated DSL port supports all standard DSL connections* for compatibility with most ISPs.
*The TD-W9960 is compatible with VDSL2, ADSL2+, ADSL2 and ADSL.
With 300Mbps wireless speeds on the 2.4GHz band and 4 megabit LAN ports, the TD-W9960 is perfect for streaming in HD, online gaming and other bandwidth-intensive applications.
Set up the TD-W9960 in minutes thanks to its intuitive web interface and the powerful Tether app. Manage network settings, including Parental Controls and Access Control, from any Android or iOS device. Control your home network whenever and wherever you are.
Two external 5dBi high-gain antennas beam signal to everycorner of your home, creating a strong, stable Wi-Fi network.
Lightning protection shields TD-W9960 from electrical damage caused by thunderstorms, so even in bad weather, you can enjoy internet with peace of mind.
Parental Controls limit the online time and access of specified devices. Guest Network creates a separate Wi-Fi network for visitors, keeping your main network secure.

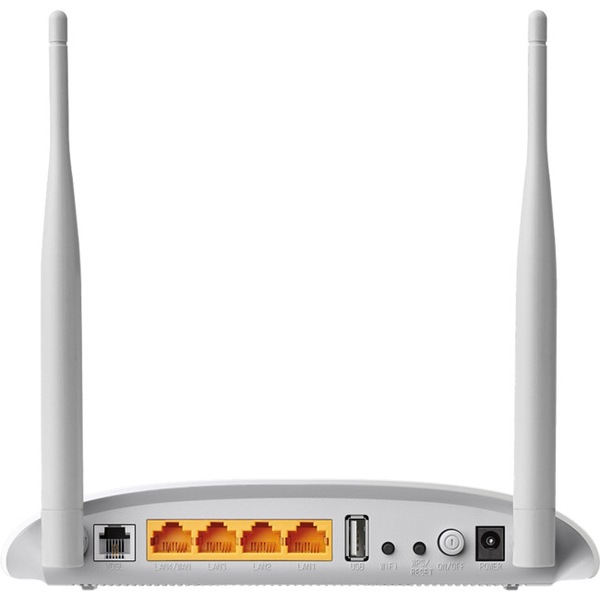

HARDWARE FEATURES | Interface |
|
---|---|---|
Button |
| |
External Power Supply | 9V DC/0.6A | |
IEEE Standards | IEEE 802.3, 802.3u | |
VDSL2 Standards |
| |
Dimensions (W×D×H) | 181.6mm × 129.7mm × 36.2mm | |
Antenna Type | Omni directional, Fixed | |
Antenna Gain | 2 × 5dBi | |
WIRELESS FEATURES | Wireless Standards | IEEE 802.11b, 802.11g, 802.11n |
Frequency | 2.400-2.4835GHz | |
Transmit Power | <20dBm (EIRP) | |
Wireless Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA-PSK2 encryptions, Wireless MAC Filtering | |
SOFTWARE FEATURES | Quality of Service | WMM, Bandwidth Control (IP QoS) |
Security | NAT Firewall, SPI Firewall, Denial of Service (DoS), SYN Flooding, Ping of Death, Access Control, Service Filtering, IP and MAC Address Binding | |
Operating Modes | VDSL/ADSL Modem Router, Wireless Router | |
Management | Web Based Configuration (HTTP), Remote management, CWMP (TR-069), Web Based Firmware Upgrade, Diagnostic Tools | |
Port Forwarding | Virtual Server, Port Triggering, DMZ, ALG, UPnP | |
VPN Pass-Through | IPSec VPN | |
Protocols | Supports IPv4 and IPv6 | |
ATM/PPP Protocols |
| |
Advanced Features | Parental Controls, Network Address Translation (NAT), Port Mapping (Grouping), Static Routing, RIP V1/V2 (Optional), DNS Relay, DDNS, IGMP V1/V2/V3 | |
APP | Tether App | |
ENVIRONMENT | Operating Temperature | 0°C ~ 40°C (32°F ~ 104°F) |
Storage Temperature | −40°C ~ 70C (−40°F ~ 158°F) | |
Operating Humidity | 10%~90% non-condensing | |
Storage Humidity | 5%~90% non-condensing | |
OTHERS | Certification | CE, RoHS |
Package Contents |
| |
System Requirements |
|
GTIN: 6935364092535
Estimated Delivery Time Frame:4-8 business days
