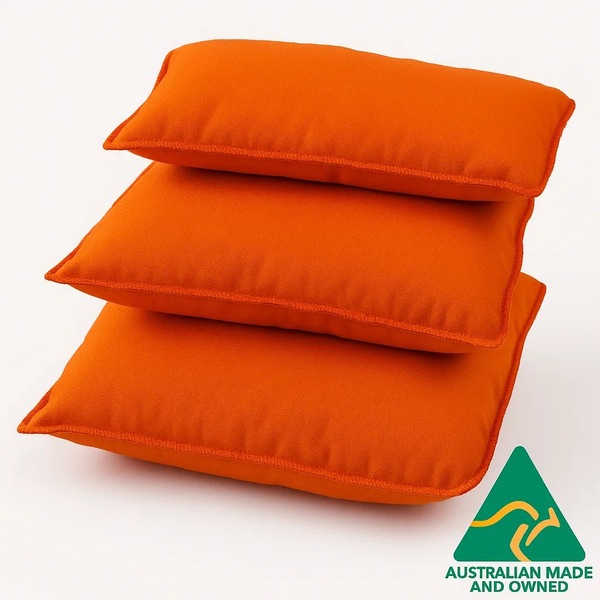

Fire Pillows - Various Sizes

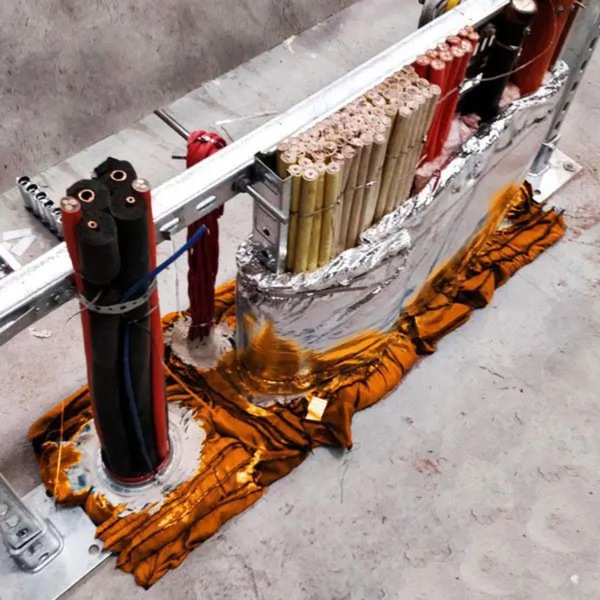

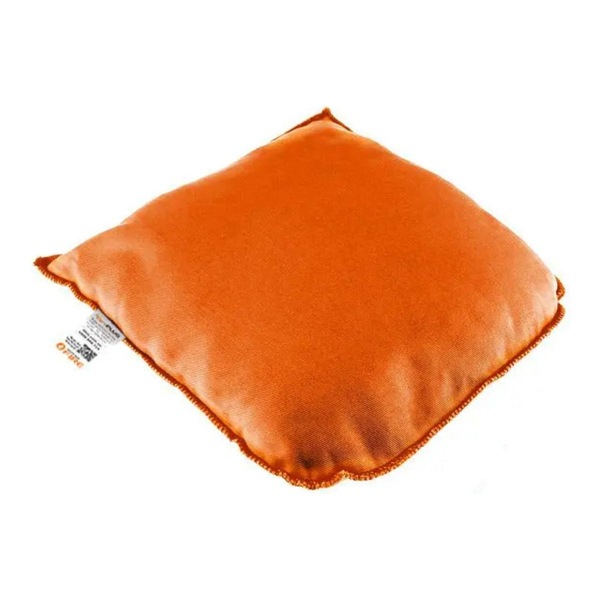

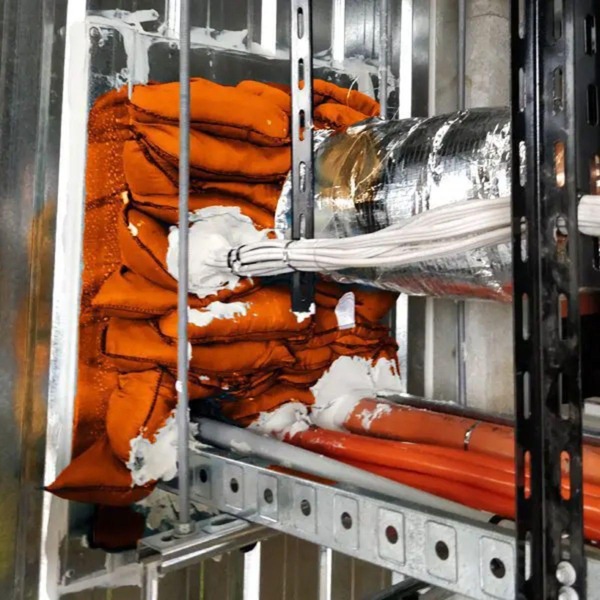

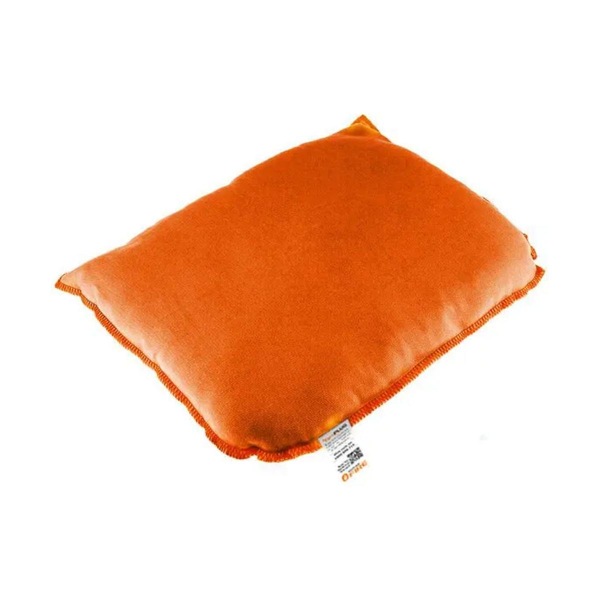

These Fire Pillows are compressive products made of quality cloth envelopes enclosing high temperature, granulated fire-resistant material. The pillows are used to maintain the fire resistance of walls and floors, where openings for services are located. They are typically installed around cables and non-combustible pipes which need to be regularly altered.
These Fire Pillows have been successfully tested and assessed by independent laboratories to meet the requirements of AS 1530: Part 4 and BS 476: Part 20 for fire ratings in excess of 180 minutes. When exposed to fire the pillows will remain in place and form a fire barrier by charring and creating a solid mass of insulating material.

Features:

• Simple to install
• Wall openings up to 0.7 square meters
• Slab openings up to 0.3 square meters
• 120 mins insulation with use of Extra Large Pillows on cables and cable trays
• Tested for FR plasterboard, Concrete, Masonry and many more

Use Cases:

• Firewall Openings: Ideal for sealing penetrations in fire-rated walls.
• Cable Penetrations: Use to seal openings around cables, preventing fire spread.
• Pipe Penetrations: Secures openings around pipes to prevent fire and smoke passage.
• Ductwork Openings: Effectively seals openings in fire-rated ductwork.
