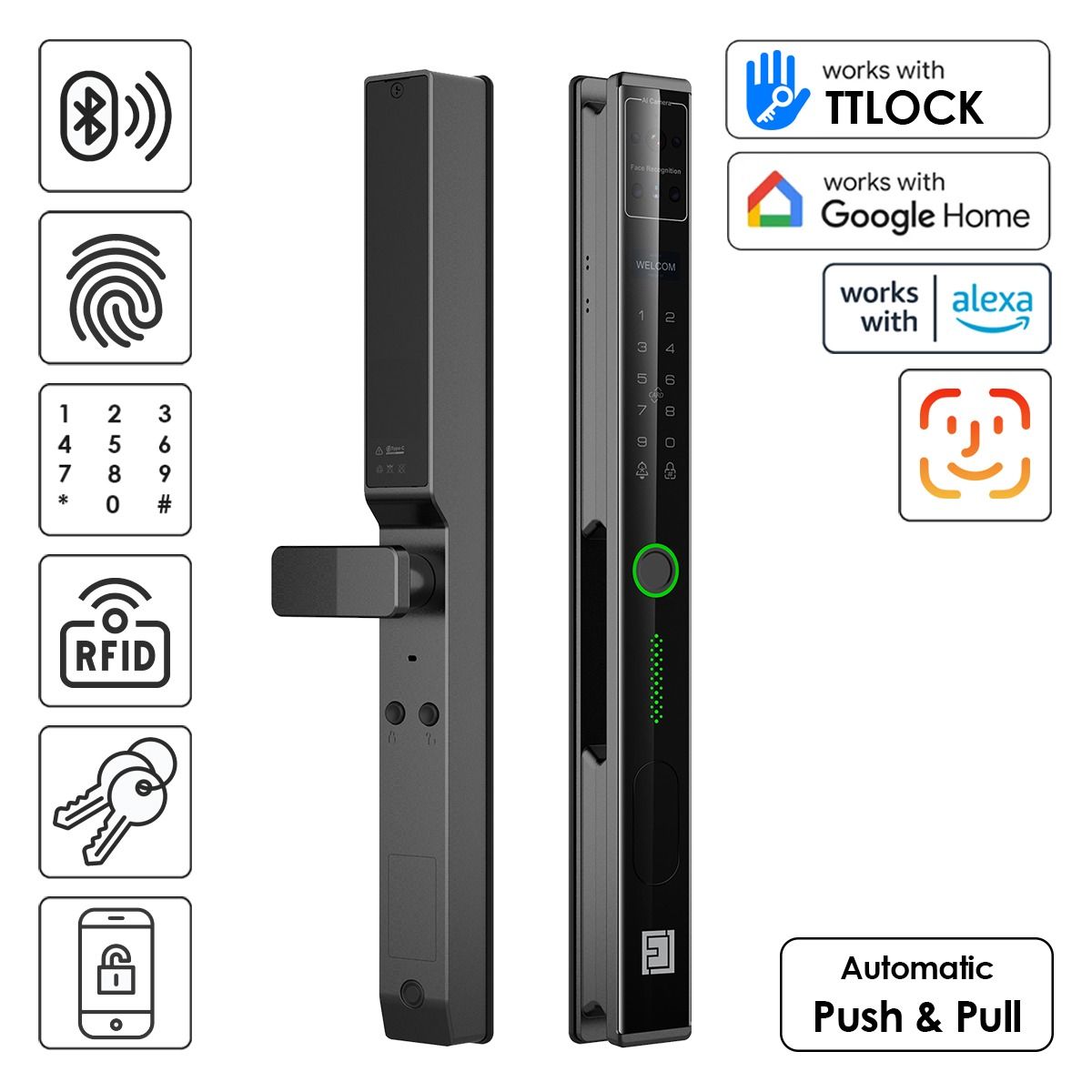

FORGE Biometric Facial Recognition Slim Smart Lock S2 - TTLock BLE

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Hurry! 4 items left!
$861.35

Collect 861 Everyday Rewards points

Log in to MyDeal to link your card
Free Shipping
Sold & shipped by Forge Electrical
Secure ways to pay at checkout
  • Automatic push/pull mortise
  • 3D Facial recognition unlock
  • Remotely unlock the door via the app*
  • Remotely manage passcodes via the app*
  • Perfect fit for entry doors for a slimline and neat look

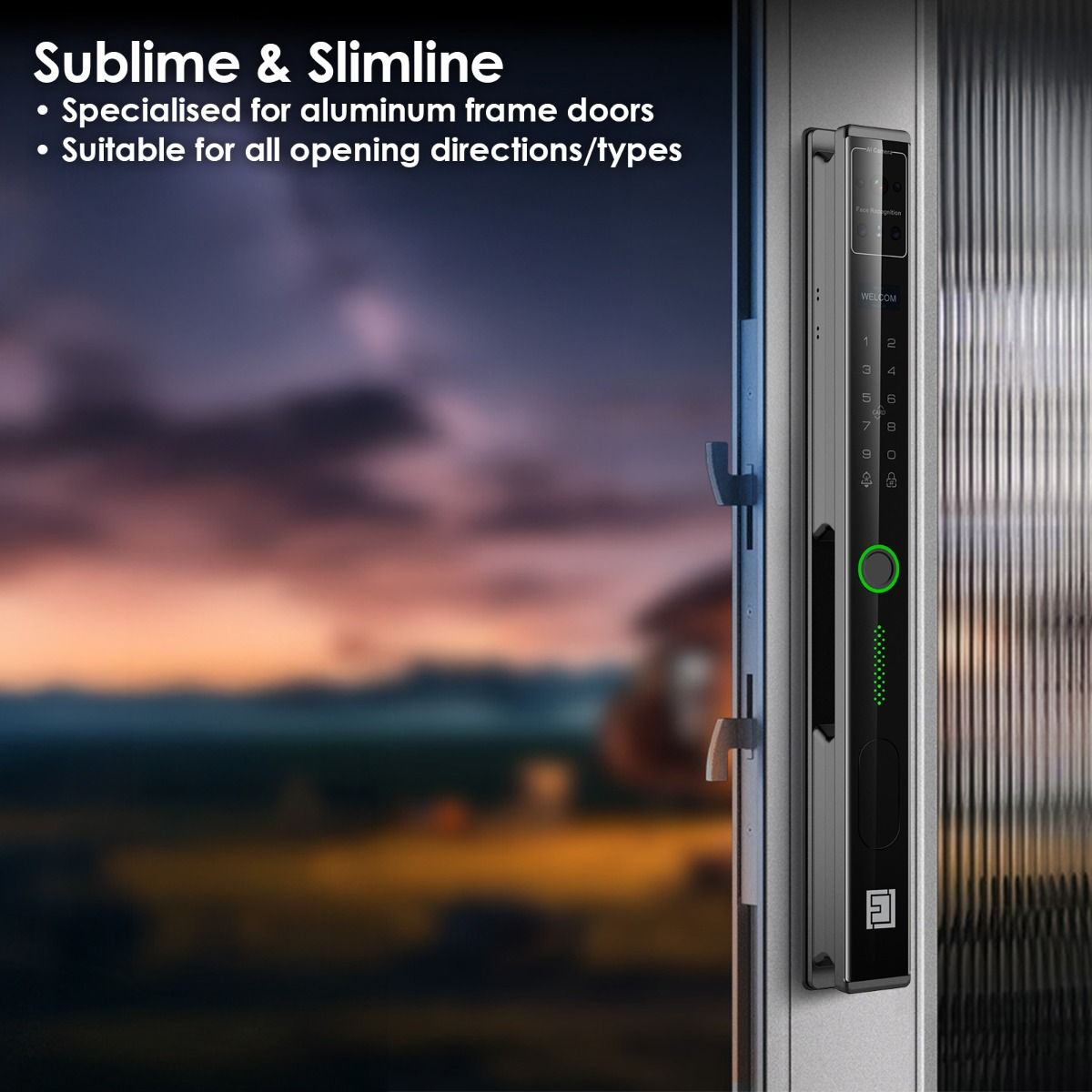

  • Suitable for both timber doors and aluminum frame glass doors
  • Suitable for all opening directions, and both sliding/swing doors
  • Wide range of mortice options to suit different doors
  • Suitable door thickness: 40-100mm

*An optional TTLock Smart Gateway is required for remote management.


Specifications:

specification=
  • Weatherproof Rating (external lock panel only): IP65
  • Suitable Door Thickness: 40-100mm
  • Power Supply: Lithium Rechargeable Battery DC 7.4V 4800mAh
  • Emergency Power Supply: 5V via USB Type-C Interface
  • Connectivity: Bluetooth BLE 5.0
  • Number of Administrators: 9
  • Number of Users: 291
  • Fingerprint Capacity: 100
  • Facial Profile Capacity: 50
  • Working Temperature: -20°C to 60°C
  • Working Humidity: 45-90%RH
  • Camera: 1/4" CMOS, 1280x800 pixel
    84.2° FOV, Focus Distance 50cm(35.5 -84.7cm). <1.5% Distortion Rate

Will it fit my door?
Suitable Door Thickness: 40-100mm (can suit thinner doors with minor modification)

Minimum Lock Stile Requirement (If not a flat panel):
- Mortice with 20mm backset: 39mm
- Mortice with 25mm backset: 44mm
- Mortice with 28mm backset: 47mm
- Mortice with 30mm backset: 49mm
- Mortice with 35mm backset: 54mm
- Mortice with 40mm backset: 59mm
- Mortice with 45mm backset: 64mm
- Mortice with 60mm backset: 79mm

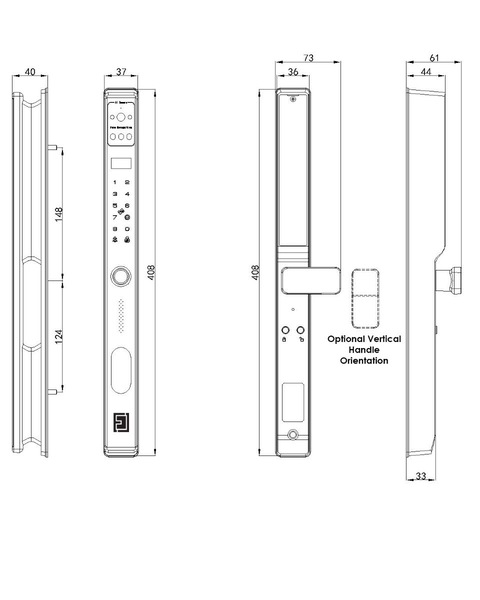

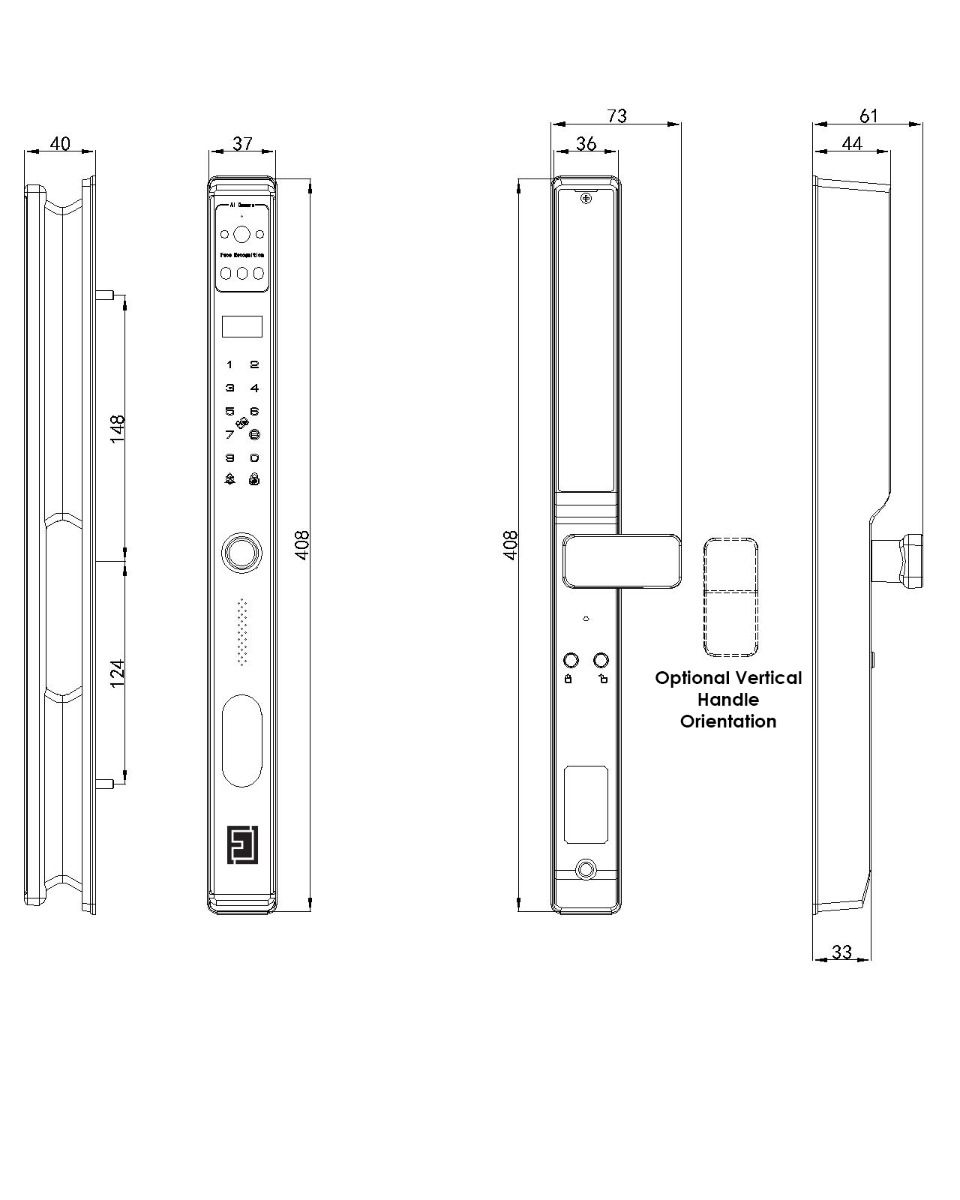

Faceplate Dimensions: 37(W) x 408(H)mm

These measurements identify the feasibility of replacing an existing lock.
If unsure - please call us and we can support you to find the most suitable options.

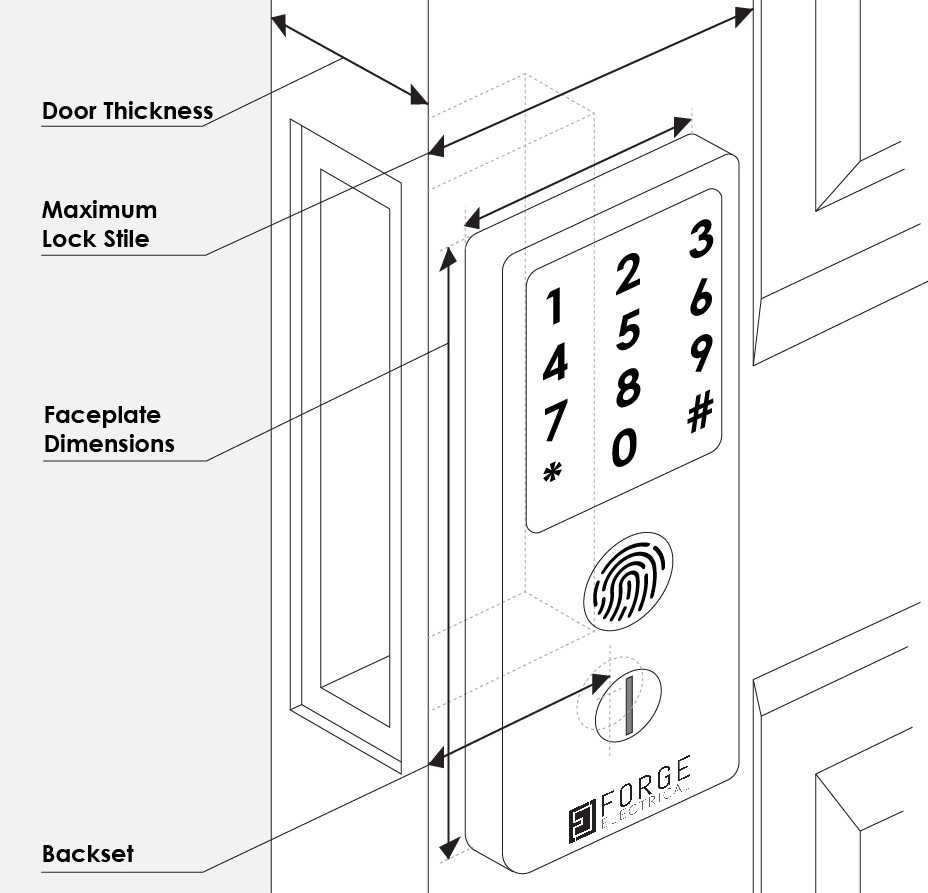

Door Thickness
The most common door thickness in Australia is 38-40mm.

Backset
The distance from the keyhole to the edge of the door.
The most common backset in Australia is 60mm.

Maximum Lock Stile
The distance between the edge of the door to any glass or art inlays.
Ignore this if your door is completely a flat panel.

Faceplate Dimensions
The physical size of the lock on the door surface.
Pay attention to this if you are replacing your existing lock or want to cover an unpainted surface.
It is much easier to replace a smaller faceplate with a larger faceplate.

,detailed_description=

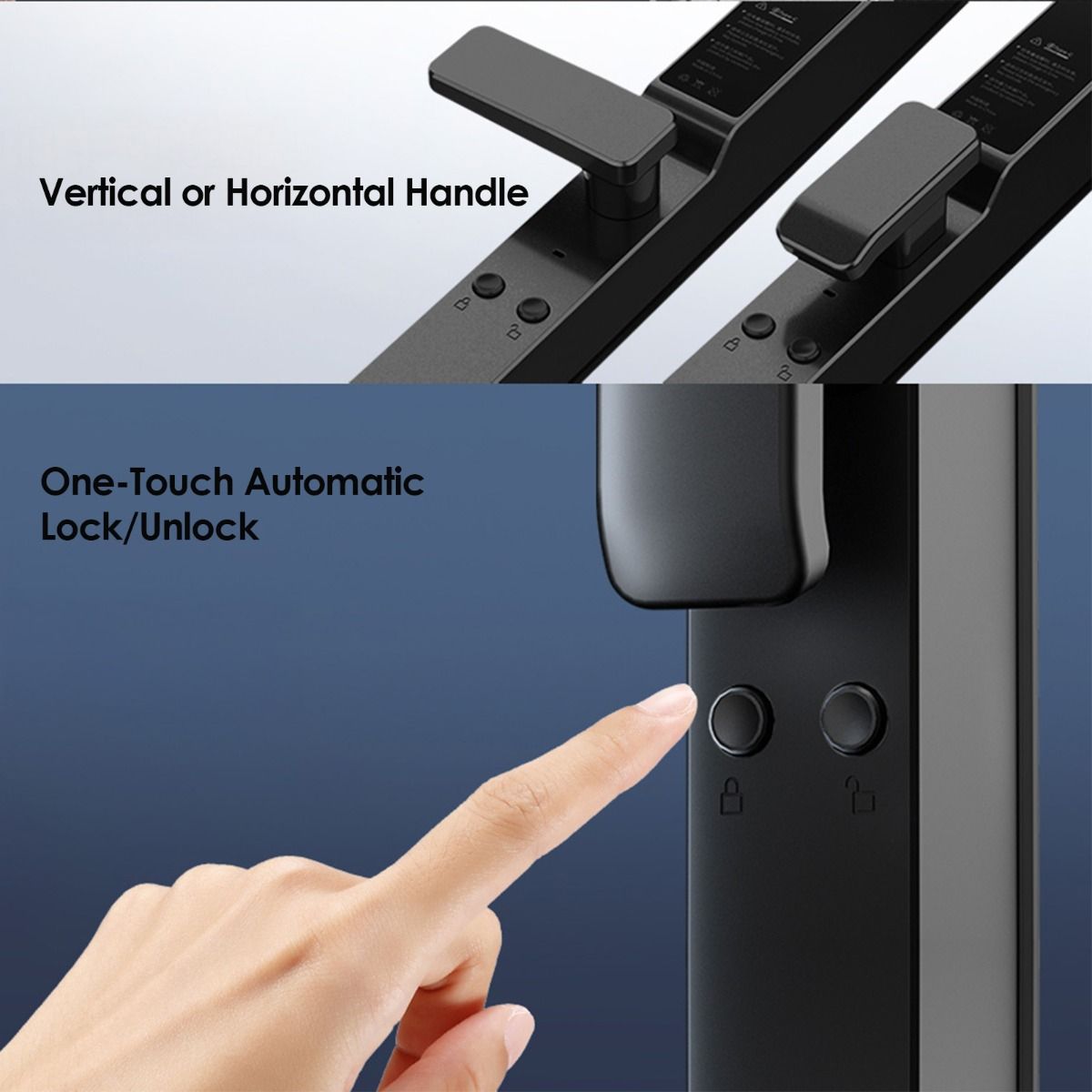

  • Automatic mortise for a simple push/pull action
  • 3D facial recognition unlock
  • Press the doorbell button and receive a remote unlock request via your phone app*
  • Remotely unlock the door via the app*
  • Manage passcodes and issue temporary codes via the app*
  • A range of mortices with different backset size options are available to suit your door
  • Perfect fit for entry doors for a slimline and neat look
  • Suitable for both timber doors and aluminum frame glass doors
  • Suitable for both sliding doors and swing doors, and all opening directions

*An optional TTLock Smart Gateway is required for remote management.


Product Warranty

This product comes with a 2 Years Standard Warranty.


Commercial Enquiry

Talk to us now about commercial and bulk orders. Call: 1800136743 Email: sales@forgeelectrical.com.au

GTIN: 0665386645018

Estimated Delivery Time Frame:2-5 business days
