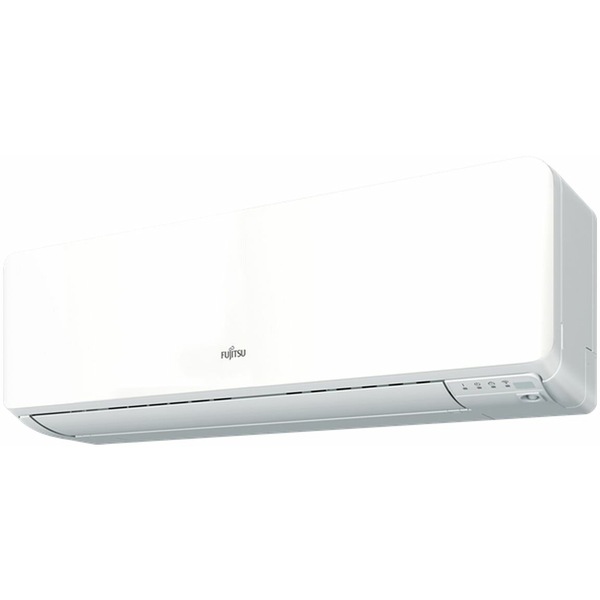

Fujitsu 3.5kW Cool / 3.7kW Heat Split System Air Conditioner ASTG12KMTC

Fujitsu 3.5kW Cool / 3.7kW Heat Split System Air Conditioner ASTG12KMTC



The ASTG12KMTC is a 3.5KW Cool / 3.7KW Heat Reverse Cycle Air Conditioner from Fujitsu. Designed to integrate seamlessly with the room’s interior, the ASTG12KMTC model has a matte finish and smooth edges creating a modern aesthetic to suit contemporary homes.

 Up/Down Swing Louvre
The up/down louvre automatically swings up and down.
 Auto Shut Louvre
The auto shut louvres close or open automatically when the unit stops or starts.
 Auto Restart
Should there be temporary loss of power; the unit will automatically restart itself in the same operating mode, once the power is restored.
 Program Timer
This timer allows selection of one of four options. ON, OFF, ON > OFF, or OFF > ON.
 Filter Sign
Indicates the filter cleaning period by lamp.
 All DC
With All DC, electricity loss is decreased and power consumption reduced.
 Auto-Changeover
The unit automatically switches between heating and cooling modes based on the temperature setting and room temperature.
 Human Sensor
Human sensor catches movements of people in a room.
 Automatic Louvre

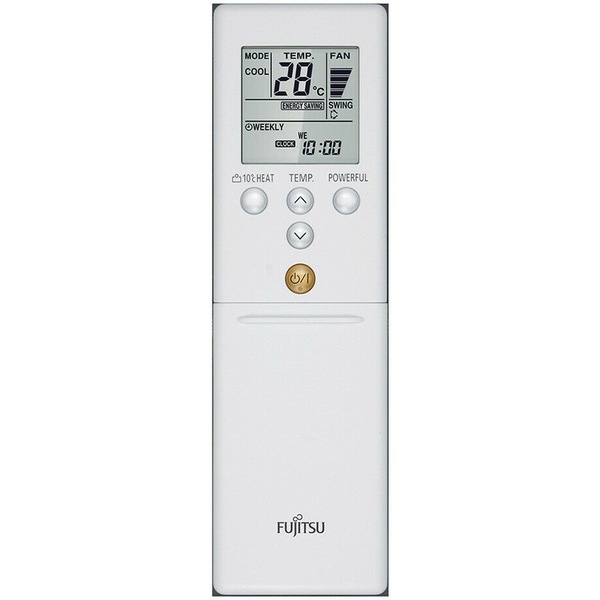

The position of the louvres is set automatically to match the operating mode. It is also possible to adjust the louvres using the remote control.
 Automatic Air Flow Adjustment
When auto mode is selected for the fan, the micro-processor adjusts the airflow to follow changes in room temperature.
 Sleep Timer
The micro-processor gradually changes the room temperature, allowing you to sleep comfortably at night.
 Economy Mode
Limits the maximum operation current, and performs operation with the power consumption suppressed.
 Long-life* Ion Deodorisation Filter
The filter deodorises by powerfully decomposing absorbed odours using the oxidizing filter and reducing effects of ions generated by the ultra-fine-particle ceramic.
 Blue Fin Heat Exchanger
Corrosion-resistance of the heat exchanger in coastal areas has been improved by blue fin treatment of the outdoor unit heat exchange.
 Weekly Timer
Different on-off times can be set for up to 7 days.
 Apple-catechin Filter
Fine dust, invisible mold spores and harmful micro-organisms are absorbed onto the filter by static electricity and further growth is inhibited and deactivated by the polyphenol ingredient extracted from apples.
 Washable Panel
Unit has a washable panel.

View Technical Sheet
View Operation Manual

The ASTG12KMTC is a 3.5KW Cool / 3.7KW Heat Reverse Cycle Air Conditioner from Fujitsu. Designed to integrate seamlessly with the room’s interior, the ASTG12KMTC model has a matte finish and smooth edges creating a modern aesthetic to suit contemporary homes.

 Up/Down Swing Louvre
The up/down louvre automatically swings up and down.
 Auto Shut Louvre
The auto shut louvres close or open automatically when the unit stops or starts.
 Auto Restart
Should there be temporary loss of power; the unit will automatically restart itself in the same operating mode, once the power is restored.
 Program Timer
This timer allows selection of one of four options. ON, OFF, ON > OFF, or OFF > ON.
 Filter Sign
Indicates the filter cleaning period by lamp.
 All DC
With All DC, electricity loss is decreased and power consumption reduced.
 Auto-Changeover
The unit automatically switches between heating and cooling modes based on the temperature setting and room temperature.
 Human Sensor
Human sensor catches movements of people in a room.
 Automatic Louvre
The position of the louvres is set automatically to match the operating mode. It is also possible to adjust the louvres using the remote control.
 Automatic Air Flow Adjustment
When auto mode is selected for the fan, the micro-processor adjusts the airflow to follow changes in room temperature.
 Sleep Timer
The micro-processor gradually changes the room temperature, allowing you to sleep comfortably at night.
 Economy Mode
Limits the maximum operation current, and performs operation with the power consumption suppressed.
 Long-life* Ion Deodorisation Filter
The filter deodorises by powerfully decomposing absorbed odours using the oxidizing filter and reducing effects of ions generated by the ultra-fine-particle ceramic.
 Blue Fin Heat Exchanger
Corrosion-resistance of the heat exchanger in coastal areas has been improved by blue fin treatment of the outdoor unit heat exchange.
 Weekly Timer
Different on-off times can be set for up to 7 days.
 Apple-catechin Filter
Fine dust, invisible mold spores and harmful micro-organisms are absorbed onto the filter by static electricity and further growth is inhibited and deactivated by the polyphenol ingredient extracted from apples.
 Washable Panel
Unit has a washable panel.

View Technical Sheet
View Operation Manual

Specifications:

Additional Information

BrandFujitsu
Features

✓ Up/Down Swing Louvre✓ Auto Shut Louvre✓ Auto Restart✓ Program Timer✓ Filter Sign✓ All Dc✓ Auto-changeover✓ Human Sensor

TypeInverter
InstallationWall
Energy Star Rating (Cooling)3.5
Energy Star Rating (Heating)4.5
Model NumberASTG12KMTC
Indoor Product CodeASTG12KMTC

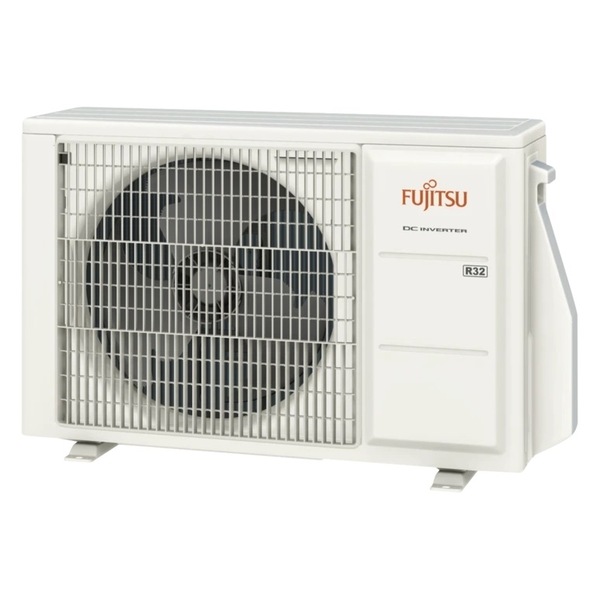

Outdoor Product CodeAOTG12KMTC
Indoor Unit Dimensions HxWxD (mm)270 x 834 x 222
Outdoor Unit Dimensions HxWxD (mm)542 x 799 x 290
Manufacturer Warranty5 Years
Moisture Removal1L/hour
Cooling Capacity3.5kW
Heating Capacity3.7kW
More Specs
  • Cooling Capacity (Watts): 3500
  • Cooling Capacity (BTU/h): 11,942
  • Range (Watts): 900-4,100
  • Range (BTU/h): 3,100-13,900
  • Heating Capacity (Watts): 3700
  • Heating Capacity (BTU/h): 12,624
  • Range (Watts): 900-6,100
  • Range (BTU/h): 3,100-19,100
  • Power Source (V/Ph/HZ): 240/1/50
  • Power Supply Attachment: Outdoor Unit
  • Plug Size (If Applicable): Not Applicable
  • Running Current, Cooling (Amps): 4.2
  • Running Current, Heating (Amps): 4.0
  • Running Current, Range (Amps): 4.2-4.0
  • Input, Cooling (Watts): 890
  • Input, Range (Watts): 250-1,290
  • Input, Heating (Watts): 790
  • Input, Range (Watts): 250-1,890
  • E.E.R. - Cooling: 3.93
  • C.O.P. - Heating: 4.68
  • Moisture Removal (l/hr): 1.0
  • Fan Speed: 4
  • Air Circulation (Cooling/Heating) (I/s): 194/214
  • Compressor Type: DC Rotary
  • Weight - Indoor Unit (kg): 10
  • Weight - Outdoor Unit (kg): 32
  • I.U. Sound Pressure Level Cooling (High/Quiet) ([email protected]): 40/19
  • I.U. Sound Pressure Level Heating (High/Quiet) ([email protected]): 42/21
  • O.U. Sound Pressure Level (Cooling/Heating) ([email protected]): 49/49
  • O.U. Sound Power Level (dBA): 64
  • Refrigerant Type: R32
  • Connection Pipe Sizes, Gas (mm): Ø 9.52
  • Connection Pipe Sizes, Liquid (mm): Ø 6.35
  • Pre Charged Length (Metre): 15
  • Minimum Pipe Length (Metre): 3
  • Maximum Pipe Length (Metre): 20
  • Maximum Pipe Height (Metre): 15
  • Pipe Connection Methods: Flared
  • Outdoor Operating Temp, Cooling Degrees C: -10 to 46
  • Outdoor Operating Temp, Heating Degrees C: -15 to 24
  • SKU: ASTG12KMTC
