Fujitsu 8.5kW Cool / 9.0kW Heat Split System Air Conditioner ASTG30KMTA

Fujitsu 8.5kW Cool / 9.0kW Heat Split System Air Conditioner ASTG30KMTA



The ASTG30KMTA is a 8.5KW Cool / 9.0KW Heat Reverse Cycle Air Conditioner from Fujitsu. Long-reach airflow 25 m by optimized airflow design. New models reach faster the setting temperature in the entire room than current models.

 Up/Down Swing Louvre
The up/down louvre automatically swings up and down.
 Automatic Air Flow Adjustment
When auto mode is selected for the fan, the micro-processor adjusts the airflow to follow changes in room temperature.
 Auto Restart
Should there be temporary loss of power; the unit will automatically restart itself in the same operating mode, once the power is restored.
 Sleep Timer
The micro-processor gradually changes the room temperature, allowing you to sleep comfortably at night.
 Program Timer
This timer allows selection of one of four options. ON, OFF, ON > OFF, or OFF > ON.
 Economy Mode
Limits the maximum operation current, and performs operation with the power consumption suppressed.
 Control Port
IExternal inputs and outputs contained within the product allow on/off control, fresh air interlock connection and heater bank element connection. UTD-ECS5A* (optional parts). * Selected ducted units only..
 All DC
With All DC, electricity loss is decreased and power consumption reduced.
 Auto-Changeover
The unit automatically switches between heating and cooling modes based on the temperature setting and room temperature.
 Human Sensor
Human sensor catches movements of people in a room.
 Weekly Timer
Different on-off times can be set for up to 7 days.
 Automatic Air Flow Adjustment
When auto mode is selected for the fan, the micro-processor adjusts the airflow to follow changes in room temperature.
 Sleep Timer
The micro-processor gradually changes the room temperature, allowing you to sleep comfortably at night.
 On-Off Timer
ON-OFF timer can be set to operate once every 24 hours.
 Blue Fin Heat Exchanger
Corrosion-resistance of the heat exchanger in coastal areas has been improved by blue fin treatment of the outdoor unit heat exchange.

The ASTG30KMTA is a 8.5KW Cool / 9.0KW Heat Reverse Cycle Air Conditioner from Fujitsu. Long-reach airflow 25 m by optimized airflow design. New models reach faster the setting temperature in the entire room than current models.

 Up/Down Swing Louvre
The up/down louvre automatically swings up and down.
 Automatic Air Flow Adjustment
When auto mode is selected for the fan, the micro-processor adjusts the airflow to follow changes in room temperature.
 Auto Restart
Should there be temporary loss of power; the unit will automatically restart itself in the same operating mode, once the power is restored.
 Sleep Timer
The micro-processor gradually changes the room temperature, allowing you to sleep comfortably at night.
 Program Timer
This timer allows selection of one of four options. ON, OFF, ON > OFF, or OFF > ON.
 Economy Mode
Limits the maximum operation current, and performs operation with the power consumption suppressed.
 Control Port
IExternal inputs and outputs contained within the product allow on/off control, fresh air interlock connection and heater bank element connection. UTD-ECS5A* (optional parts). * Selected ducted units only..
 All DC
With All DC, electricity loss is decreased and power consumption reduced.
 Auto-Changeover
The unit automatically switches between heating and cooling modes based on the temperature setting and room temperature.
 Human Sensor
Human sensor catches movements of people in a room.
 Weekly Timer
Different on-off times can be set for up to 7 days.
 Automatic Air Flow Adjustment
When auto mode is selected for the fan, the micro-processor adjusts the airflow to follow changes in room temperature.
 Sleep Timer
The micro-processor gradually changes the room temperature, allowing you to sleep comfortably at night.
 On-Off Timer
ON-OFF timer can be set to operate once every 24 hours.
 Blue Fin Heat Exchanger
Corrosion-resistance of the heat exchanger in coastal areas has been improved by blue fin treatment of the outdoor unit heat exchange.

Specifications:

Additional Information

BrandFujitsu
Features

✓ Up/Down Swing Louvre✓ Auto Restart✓ Program Timer✓ Control Port✓ All Dc✓ Auto-changeover✓ Human Sensor

Height (mm)830mm
Width (mm)900mm
Depth (mm)330mm
TypeInverter
InstallationWall
Energy Star Rating (Cooling)2
Energy Star Rating (Heating)3
Model NumberASTG30KMTA
Indoor Product CodeASTG30KMTA

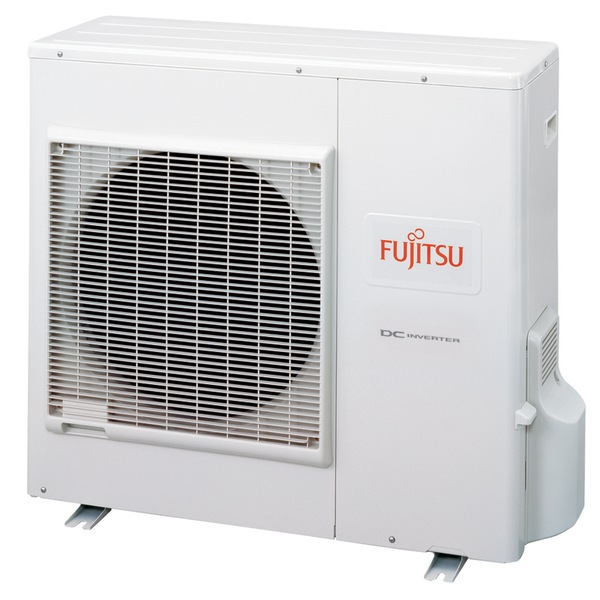

Outdoor Product CodeAOTG30KMTA
Indoor Unit Dimensions HxWxD (mm)340 × 1150 × 280
Outdoor Unit Dimensions HxWxD (mm)830 × 900 × 330
Manufacturer Warranty5 Years
Moisture Removal2.5L/hour
Cooling Capacity8.5kW
Heating Capacity9.0kW
More Specs
  • Reverse Cycle System: Yes
  • Cooling Capacity (Watts): 8,500
  • Cooling Capacity (BTU/h): 29,000
  • Range (Watts): 2,900 - 10,500
  • Range (BTU/h): 9,900 - 35,800
  • Heating Capacity (Watts): 9,000
  • Heating Capacity (BTU/h): 30,700
  • Range (Watts): 2,200 - 11,200
  • Range (BTU/h): 7,500 - 38,200
  • Power Supply (Volts): 240
  • Phase-Frequency (Ph - Hz): 50
  • Power Supply Attachment: Outdoor Unit
  • Running Current, Cooling (Amps): 10.4
  • Running Current, Range (Amps): Maximum = 17.0
  • Input, Cooling (Watts): 2,460
  • Input, Range (Watts): 580 - 3,850
  • Running Current, Heating (Amps): 10.1
  • Running Current, Range (Amps): Maximum = 17.0
  • Input, Heating (Watts): 2,460
  • Input, Range (Watts): 580 - 3,850
  • E.E.R. - Cooling: 3.45
  • C.O.P. - Heating: 3.84
  • Fan Speed: 4
  • Air Circulation, High (l/s): 389
  • Compressor Type: Hermetic Motor Compressor x 1
  • Weight - Inside Unit (kg): 18
  • Weight - Outside Unit (kg): 61
  • I.U. Sound Pressure Level ([email protected]): 51
  • O.U. Sound Pressure Level ([email protected]): 54
  • O.U. Sound Power Level (dBA): 67
  • Refrigerant Type: R32
  • Connection Pipe Sizes, Gas (mm): 15.88
  • Connection Pipe Sizes, Liquid (mm): 9.52
  • Pre Charged Length (Metre): 20
  • Minimum Pipe Length (Metre): 5
  • Maximum Pipe Length (Metre): 75
  • Maximum Pipe Height (Metre): 30
  • Pipe Connection Methods: Flared
  • Outdoor operating Temp, Cooling Degrees C: -10 to 46
  • Outdoor operating Temp, Heating Degrees C: -15 to 24
  • SKU: ASTG30KMTA
