Gigabyte A620I AX Motherboard, for AMD CPU, DDR5, AM5, Mini-ITX MB

Image 1
Image 2
Image 3
Limited Stock
$326.20

Collect 326 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by Best Deal Computers
Secure ways to pay at checkout

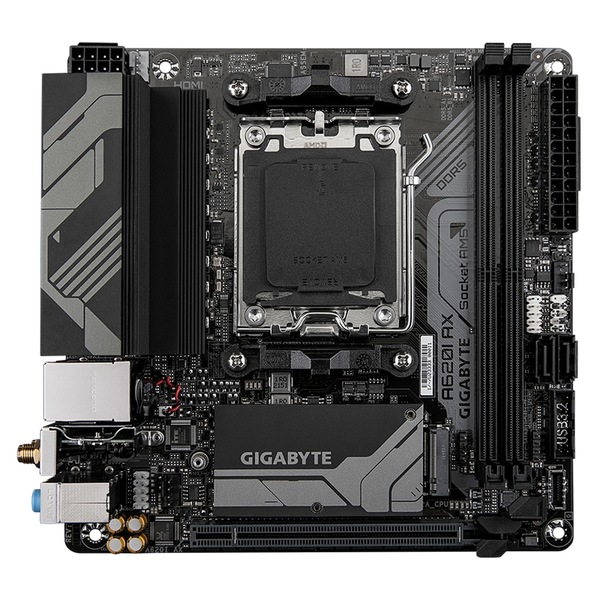

Gigabyte A620I AX(rev. 1.0)

Features:
  • AMD Socket AM5: Supports AMD Ryzenâ„¢ 7000/ Ryzenâ„¢ 8000/ Ryzenâ„¢ 9000 Series Processors
  • Unparalleled Performance: 5+2+1 Phases Digital VRM Solution
  • Dual Channel DDR5: 2*SMD DIMMs with AMD EXPOâ„¢ & Intel® XMP Memory Module Support
  • SuperSpeed Storage: PCIe 4.0 x4 M.2 Connector
  • EZ-Latch: PCIe x16 Slot with Quick Release Design
  • Fast Networks: Wi-Fi 6E 802.11ax & 2.5GbE LAN
  • Extended Connectivity: DP, HDMI
  • Smart Fan 6: Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card
Specifications:
  • CPU :AMD Socket AM5, support for: AMD Ryzenâ„¢ 7000 / Ryzenâ„¢ 8000 / Ryzenâ„¢ 9000 Series Processors
    (Please refer "CPU Support List" for more information.)
  • Chipset :AMD A620
  • Memory :Support for DDR5 6400(OC)/6200(OC)/6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules
    2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory
    Dual channel memory architecture
    Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    Support for AMD EXtended Profiles for Overclocking (AMD EXPOâ„¢) and Extreme
    Memory Profile (XMP) memory modules
    (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
  • Onboard Graphics :Integrated Graphics Processor with AMD Radeonâ„¢ Graphics support:
    - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
    * Support for DisplayPort 1.4 version.
    - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
    * Support for HDMI 2.1 version and HDCP 2.3.
    ** Support for native HDMI 2.1 TMDS compatible ports.
    (Graphics specifications may vary depending on CPU support.)
  • Audio :Realtek® Audio CODEC
    High Definition Audio
    2/4/5.1/7.1-channel
    * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
  • LAN :Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
  • Wireless Communication module :Realtek® Wi-Fi 6E RTL8852CE
    - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
    - BLUETOOTH 5.3
    - Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
    (Actual data rate may vary depending on environment and equipment.)
  • Expansion Slots :1 x PCI Express x16 slot, integrated in the CPU:
    - AMD Ryzenâ„¢ 7000 Series Processors support PCIe 4.0 x16 mode
    - AMD Ryzenâ„¢ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
    - AMD Ryzenâ„¢ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
    * The PCIEX16 slot can only support a graphics card or an NVMe SSD.
  • Storage Interface :1 x M.2 connector, integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs:
    - AMD Ryzenâ„¢ 7000 Series Processors support PCIe 4.0 x4/x2 SSDs
    - AMD Ryzenâ„¢ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
    - AMD Ryzenâ„¢ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
    2 x SATA 6Gb/s connectors
    RAID 0 and RAID 1 support for NVMe SSD storage devices
    RAID 0 and RAID 1 support for SATA storage devices
  • USB :CPU:
    - 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support
    - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
    - 1 x USB 2.0/1.1 port on the back panel
    Chipset:
    - 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
    - 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header)
    - 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
  • Internal I/O Connectors :1 x 24-pin ATX main power connector
    1 x 8-pin ATX 12V power connector
    1 x CPU fan header
    2 x system fan headers
    1 x addressable LED strip header
    1 x RGB LED strip header
    1 x M.2 Socket 3 connector
    2 x SATA 6Gb/s connectors
    1 x front panel header
    1 x front panel audio header
    1 x speaker header
    1 x USB Type-C® header, with USB 3.2 Gen 1 support
    1 x USB 3.2 Gen 1 header
    1 x USB 2.0/1.1 header
    1 x Clear CMOS jumper
    1 x chassis intrusion header

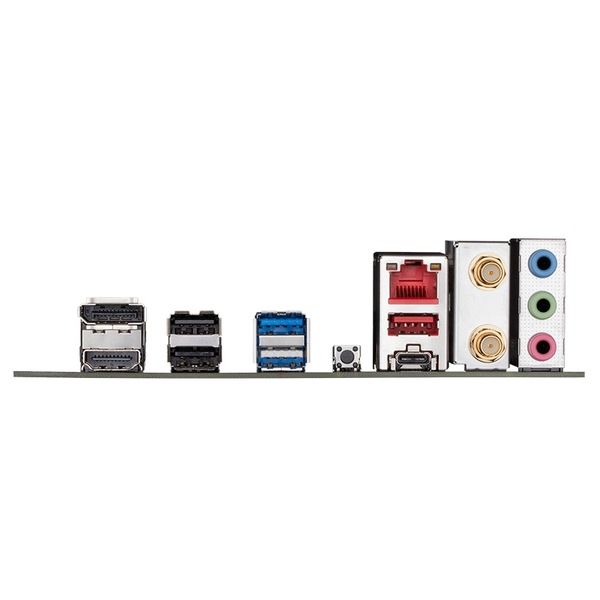

  • Back Panel Connectors :1 x DisplayPort
    1 x HDMI port
    1 x USB Type-C® port, with USB 3.2 Gen 1 support
    1 x USB 3.2 Gen 2 Type-A port (red)
    1 x USB 3.2 Gen 1 port
    3 x USB 2.0/1.1 ports
    1 x Q-Flash Plus button
    1 x RJ-45 port
    2 x SMA antenna connectors (2T2R)
    3 x audio jacks
  • I/O Controller :iTE® I/O Controller Chip
  • H/W Monitoring :Voltage detection
    Temperature detection
    Fan speed detection
    Water cooling flow rate detection
    Fan fail warning
    Fan speed control
    * Whether the fan speed control function is supported will depend on the fan you install.
  • BIOS :1 x 256 Mbit flash
    Use of licensed AMI UEFI BIOS
    PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Unique Features :Support for GIGABYTE Control Center (GCC)
    * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    Support for Q-Flash
    Support for Q-Flash Plus
  • Bundled Software :Norton® Internet Security (OEM version)
    LAN bandwidth management software
  • Operating System :Support for Windows 11 64-bit
    Support for Windows 10 64-bit
  • Form Factor :Mini-ITX Form Factor; 17.0cm x 17.0cm

SKU: MB-GB-A620IAX
