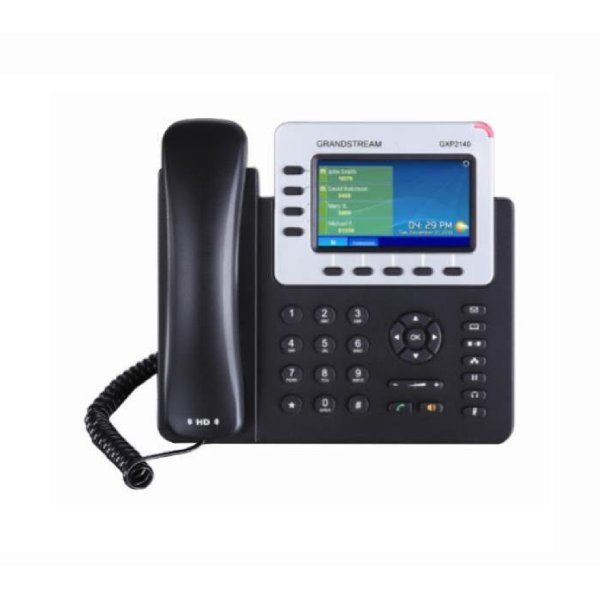

GRANDSTREAM GXP2140 4 LINE VOIP PHONE WITH A 4.3 INCH COLOUR LCD SCREEN AND HD AUDIO

Grandstream GXP2140 4 Line VoIP Phone with a 4.3 inch Colour LCD screen and HD audio. A versatile Enterprise VoIP phone, the Grandstream GXP2140 is a Linux-based device that includes 4 lines, 5 XML programmable soft keys, and 5-way conferencing. A 4.3 inch colour LCD screen and HD audio allow for a crisp display and high grade calls.

The GXP2140 VoIP Phone comes equipped with Bluetooth, USB and EHS capabilities for flexibility. The phone also comes pre-loaded with weather & currency exchange apps. Add up to 4 GXP2200EXT modules to view an additional 160 lines, and customise your language for global use.

FEATURES

480x272 TFT colour LCD

Automated provisioning using TR-069 or AES encrypted XML configuration file,

TLS/SRTP/HTTPS for advanced security and privacy protection

Integrated real-time web applications [weather, currency, RSS news (pending), etc.]

GXP series is officially supported by 3CX

SPECIFICATIONS

Manufacturer's Product Code: GXP2140

Protocols / Standards: SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A record, SRV, NAPTR), DHCP, PPPoE,TELNET, TFTP, NTP, STUN, SIMPLE, LLDP, LDAP, TR-069, 802.1x, TLS, SRTP, IPv6

Network Interfaces: Dual switched auto-sensing 10/100/1000 Mbps Gigabit Ethernet ports with integrated PoE

Graphic Display: 4.3 inch (480x272) TFT color LCD

Bluetooth: Yes, Bluetooth V2.1

Feature Keys: 4 line keys with up to 4 SIP accounts, 5 programmable context sensitive softkeys, 5 navigation/menu keys, 11 dedicated function keys for: MESSAGE (with LED indicator), PHONEBOOK, TRANSFER, CONFERENCE, HOLD, HEADSET, MUTE, SEND/REDIAL, SPEAKERPHONE, VOL+, VOL-

Voice Codecs: Support for G.729A/B, G.711µ/a-law, G.726, G.722 (wide-band), and iLBC,in-band and out-of-band DTMF (in audio, RFC2833, SIP INFO)

Auxiliary Ports: RJ9 headset jack (allowing EHS with Plantronics headsets), USB, extension module port

Telephony Features: Hold, transfer, forward, 5-way conference, call park, call pickup, shared-call-appearance (SCA)/bridged-line-appearance (BLA), downloadable phonebook (XML, LDAP, up to 2000 items), call waiting, call log (up to 500 records), customization of screen, off-hook auto dial, auto answer, click-to-dial, flexible dial plan, hot desking, personalized music ringtones and music on hold, server redundancy and fail-over

Sample Applications: Weather, currency, news GMI available for advanced custom application development

HD Audio: Yes, both on handset and speakerphone

QoS: Layer 2 (802.1Q, 802.1p) and Layer 3 (ToS, DiffServ, MPLS) QoS

Security: User and administrator level passwords, MD5 and MD5-sess based authentication, AES based secure configuration file, SRTP, TLS, 802.1x media access control

Upgrade/Provisioning: Firmware upgrade via TFTP/HTTP/HTTPS, mass provisioning using TR-069 or encrypted XML configuration file

Power & Green Energy Efficiency: Universal power adapter included: Input: 100-240V; Output: +12V, 1.0A; Integrated Power-over-Ethernet (802.3af) Max power consumption: 6W (without GXP2200EXT), 10W(with 4 cascaded GXP2200EXTs )

PACKAGE CONTENTS

1 x Grandstream 4 Line Voip Phone With A Colour Lcd Screen And Hd Audio
1 x 12VDC
1 x Desk Stand
1 x Wall Mountable
1 x Ethernet Cable
