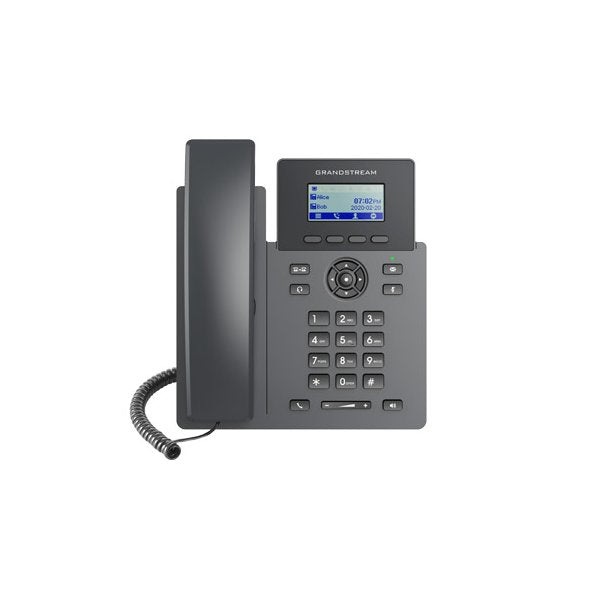

GRANDSTREAM GRP2601P 2 LINE 2 SIP ACCOUNT IP PHONE WITH POE

Part of the GRP series of Carrier-Grade VoIP Phones, the Grandstream GRP2601 is an essential 2-line model designed with zero-touch provisioning for mass deployment, PoE Support and easy management. It features a sleek design and a suite of next-generation features including 5-way voice conferencing to maximize productivity, integrated PoE (GRP2601P), EHS support for Plantronics, Jabra, and Sennheiser headsets and multi-language support.

The GRP series includes carrier-grade security features to provide enterprise-level security, including secure boot, dual firmware images and encrypted data storage. For cloud provisioning and centralised management, the GRP2601 is supported by Grandstream’s Device Management System (GDMS), which provides a centralized interface to configure, provision, manage and monitor deployments of Grandstream endpoints.

Built for the basic needs of on-site or remote desktop workers and designed for easy deployment by enterprises, service providers and other high-volume markets, the GRP2601 offers an easy-to-use and easy-to-deploy voice endpoint.

FEATURES

2 SIP account, 2 lines

GDMS online device management and provisioning

5-way audio conferencing for easy conference calls

Equipped with noise shield technology to minimize background noise

Electronic Hook Switch (EHS) support for Plantronics, Jabra, and Sennheiser headsets

The GRP2601P includes built-in PoE to power the device and give it a network connection

Enterprise-level protection including secure boot, dual firmware images and encrypted data storage

SPECIFICATIONS

Protocols/Standards: SIP RFC3261, TCP/IP/UDP, RTP/RTCP, RTCP-XR, HTTP/HTTPS, ARP, ICMP, DNS(A record, SRV, NAPTR), DHCP, PPPoE, SSH, TFTP, NTP, STUN, SIMPLE, LLDP, LDAP, TR069, SNMP, 802.1x, TLS, SRTP, IPv6

Network Interfaces: Dual switched auto-sensing 10/100 Mbps Ethernet ports, integrated PoE (GRP2601P only)

Graphic Display: 132 x 48 (2.21’’) LCD display

Feature Keys: 4 XML programmable context sensitive soft keys, 5 (navigation, menu) keys. 8 dedicated function keys for: MESSAGE(with LED indicator), TRANSFER,HEADSET, MUTE, SEND/REDIAL, SPEAKERPHONE, VOL+, VOL

Voice Codecs and Capabilities: Support for G.729A/B, G.711µ/a-law, G.726, G.722(wide-band), G.723,iLBC, OPUS, in- band and out-of-band DTMF(in audio, RFC2833, SIP INFO), VAD, AEC, CNG, PLC, AGC

Telephony Features: Hold, transfer, forward, 5-way conference, call park, call pickup, downloadable phonebook(XML, LDAP, up to 2000 items), call waiting, call log(up to 800 records), off-hook auto dial, auto answer, click-to-dial, flexible dial plan, hot-desking, personalized music ringtones and music on hold, server redundancy and fail-over

Auxiliary Ports: RJ9 headset jack (allowing EHS with Plantronics & Jabra & Sennheiser headsets)

Base Stand: Yes, 1 angle position available (45°), Wall Mountable (*wall mount sold separately)

QoS: Layer 2 QoS (802.1Q, 802.1P) and Layer 3 (ToS, DiffServ, MPLS) QoS

Security: User and administrator level passwords, MD5 and MD5-sess based authentication, 256-bit AES encrypted configuration file, SRTP, TLS, 802.1x media access control, secure boot

Upgrade/Provisioning: Firmware upgrade via FTP/TFTP / HTTP / HTTPS, mass provisioning using GDMS/TR069 or AES encrypted XML configuration file

Power & Green Energy Efficiency: Universal Power Supply Input 100-240VAC 50-60Hz; Output +5VDC, 600mA;PoE: IEEE802.3af Class 1, 3.84W; IEEE802.3az (EEE) (GRP2601P Only)

Temperature and Humidity: Operation: 0°C to 40°C; Storage: -10°C to 60°C; Humidity: 10% to 90% Non-condensing

Physical: Dimension: 208mm (L) x 180mm (W) x 63.4mm (H) (with handset); Unit weight: 650g; Package weight:810g (860g for GRP2601)

PACKAGE CONTENTS

1 x Grandstream Grp2601P 2 Line 2 Sip Account Ip Phone With Poe
